Associated RC10 Team Project

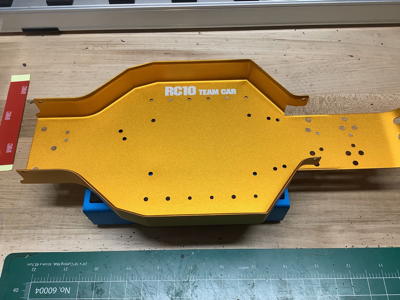

After losing my irreplaceable RC10 Classic in a fire, I ended up getting the Clear Edition as a display model instead.  At the time, that was the only option.  Fast forward and Team Associated began re-releasing lots of different versions of the RC10.  When they came out with the Team Car, I thought it was a good chance to have one I could drive again instead of just a display model.  The Team Car represents what could be achieved by adding some upgrades to the original, most notably the Stealth transmission and a lower profile body.  Many other less obvious changes are described in my build journal linked below.

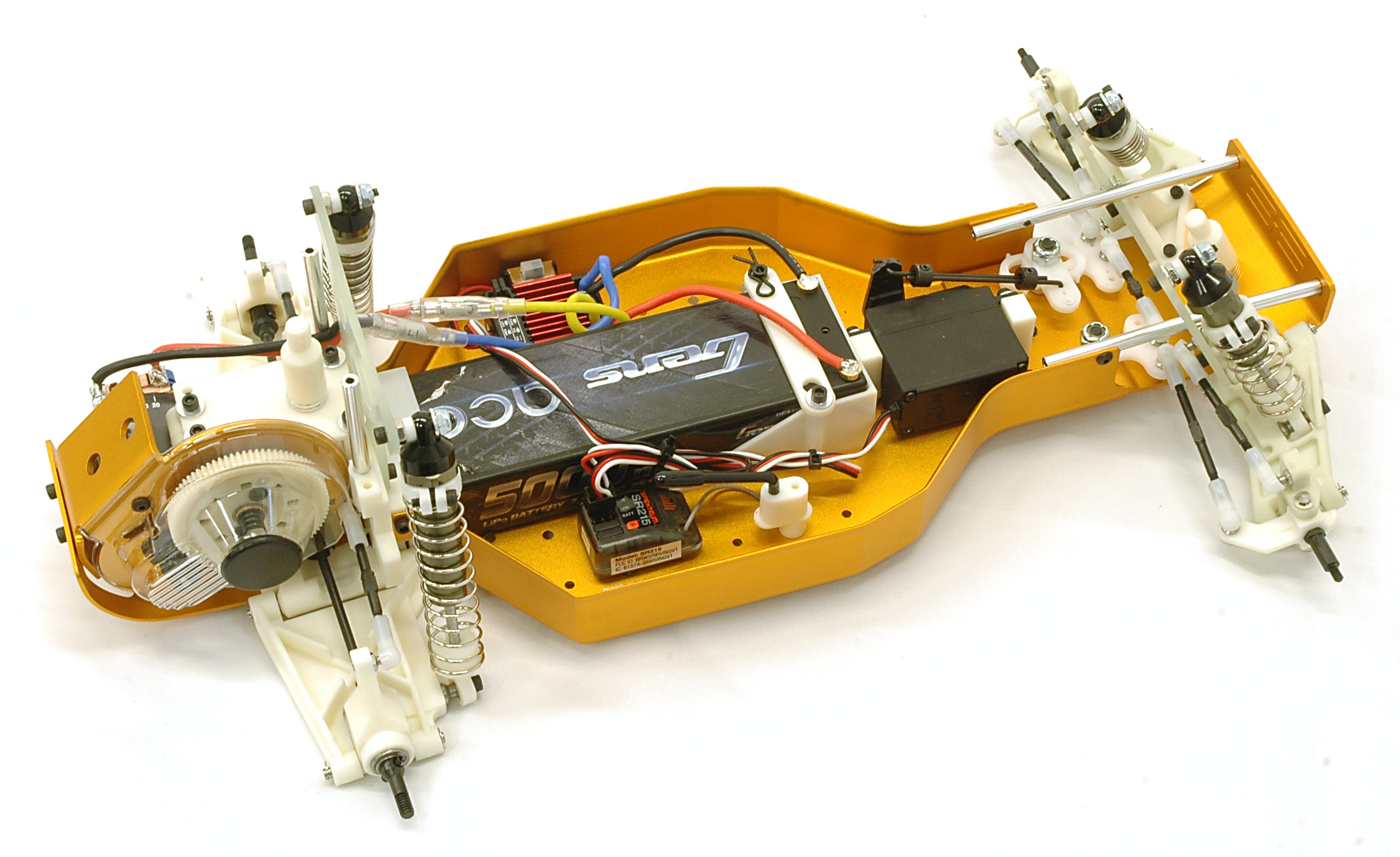

Like the original this is a 2WD racing buggy with an aluminum tub chassis and four wheel double wishbone independent suspension.  I installed a Reedy 19T brushed motor to stay in the Associated family and put in modern 2.4GHz electronics.  I use a modern 2-cell hard Li-Po pack for power.  I'm not a good enough driver to comment on how much better this might be than the stock version, but I can say that it sure is fun to drive and handles much better than would be assumed for a decades old design.


Page 1: Assembly

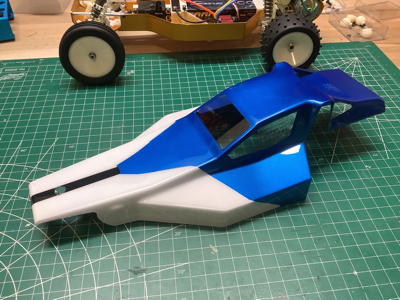

Page 2: Preparing the Body

Page 3: Final Photos


Description
Manufacturer
Model #
RC10 Team Car Gold Edition 1:10 Scale
Electric Competition Off-Road Car Kit
Team Associated
6034
Radon 19T 3-Slot 540 Brushed Motor
Reedy
27427
24 Tooth 48p Aluminum Pro Pinion
Robinson Racing
1324
Quicrun 60A Brushed Electronic
Speed Control
Hobbywing
1060
2 Channel 2.4 GHz DSMR Receiver
Spektrum
SR215
Standard Ball Bearing Servo
EcoPower ECP-100
PS-16 Metallic Blue Paint Tamiya
86016
PS-1 White Paint Tamiya
86001
PS-12 Silver Paint Tamiya
86012
PS-5 Black Paint
Tamiya
86005
