Tamiya Wild One Project



The original 58050 Wild One came out in 1985, only one year after the 58046 Fast Attack Vehicle which uses the same chassis.  This time instead of a military theme with a hard shell, they went with a sand rail style buggy using a polycarbonate shell.  The drivetrain is mostly the same except for the replacement of the little plastic pogo stick shocks with aluminum oil dampers.  The tires also went from realistic military tread to spikes in back and slots up front.  The Wild One was re-released as set 58525 in 2012 and I was lucky enough to find one for a good price.  It has very few changes from the original other than an improved shock assembly method and stronger axles.

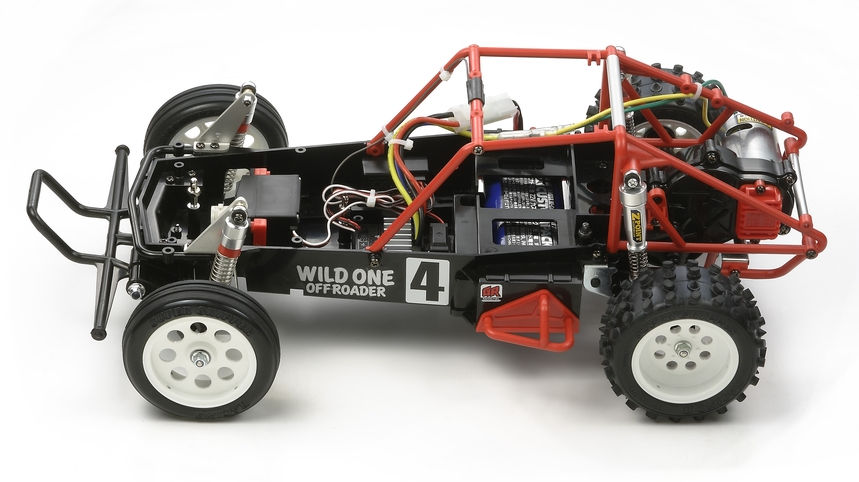

This is a rear wheel drive, desert style buggy with a geared differential and four wheel independent suspension.  The suspension is not double wishbone, instead all four corners have trailing arms.  The shocks are nice oil filled aluminum units and the body, driver, and roof are polycarbonate.

This is a very quick and stable vehicle that is a blast to drive.  It isn't going to winning any races, but that was never the point.  I did eventually put the mildly upgraded Torque Tuned motor into it for just a bit more speed.  This is considered a classic buggy by most collectors and I can see why.  With the addition of a scale engine in the back, it really looks like a real desert buggy.  It is probably the last of the Tamiya buggies to look like any real scale vehicle.

Update:  This model was destroyed in the 2022 fire.  It has not been replaced.

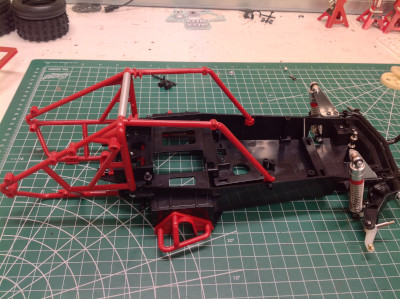

Page 1: Assembly

frame
Page 2: Upgrades!

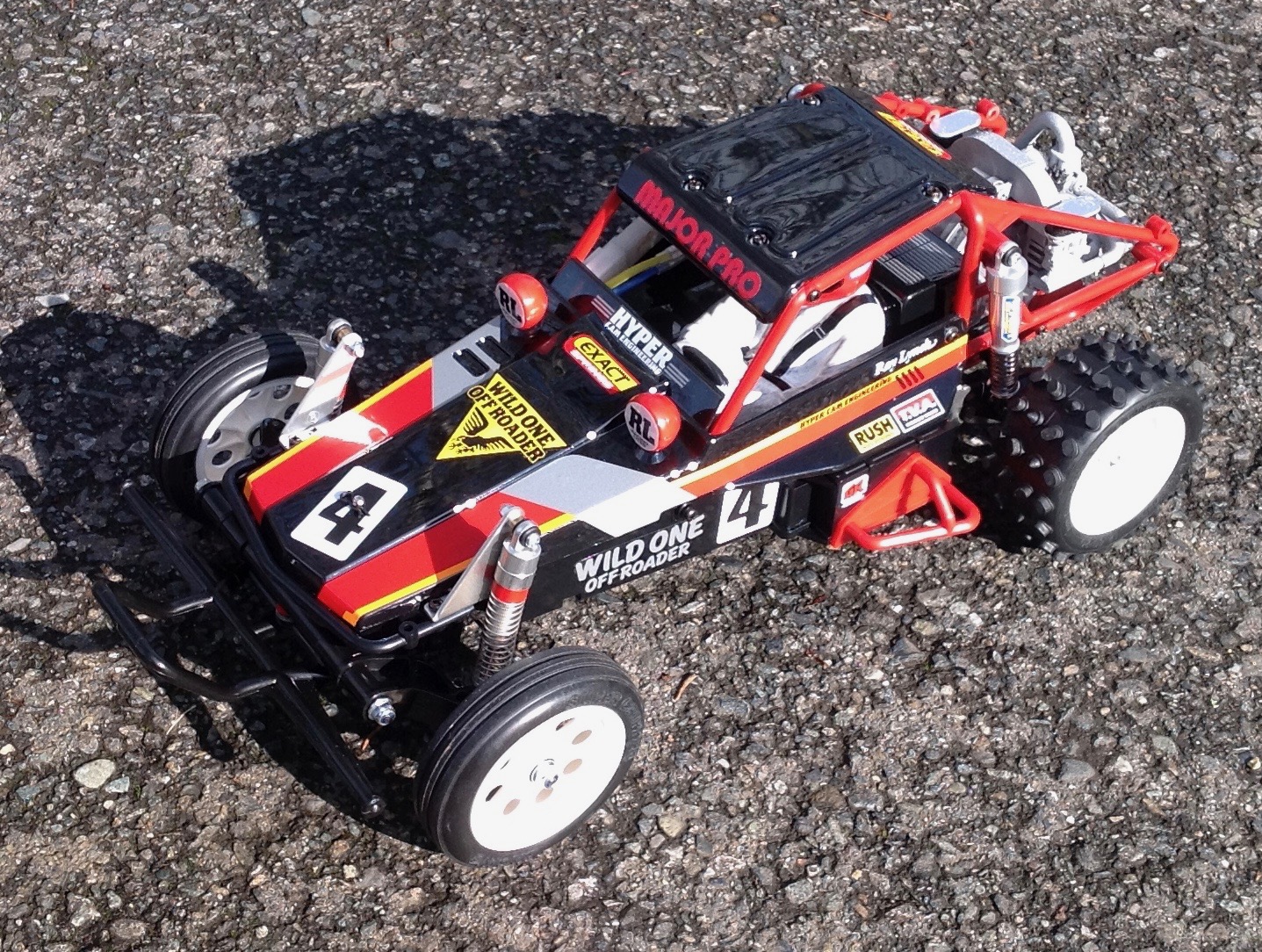

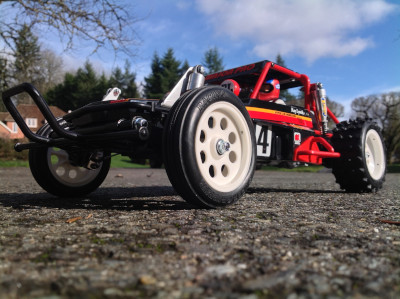

Page 3: Final Photos

Description
Manufacturer
Model #
Wild One (2012) 1/10 Scale R/C High
Performance Off-Road Racer Kit
Tamiya
58525
Torque Tuned 25T 540 Brushed MotorTamiya
54358
18 Tooth 32p Steel Pinion
Robinson Racing
0180
TBLE-02s Sensored Brushless
Electronic Speed Control
Tamiya
45057
2 Channel 2.4 GHz DSMR Receiver
Spektrum
SR215
Standard Ball Bearing Steering Servo
Futaba
S3004

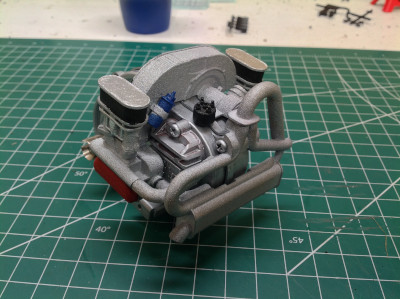

Engine for Tamiya Wild One
Knight Customs
FA10001
Military Engine Exhaust for Tamiya FAV
Knight Customs FA10003
Rubber Sealed Ball Bearing Kit
Fast Eddy
TFE1861
PS-5 Black Paint
Tamiya
86005
