Original Year
 1998
# of pieces
 49
Categories
 Cars and Trucks:  Race Cars
Other: Mini/Micro
Dimensions
 9(L)x8(W)x4(H)
Features
 Suspension
Other Views

8209 Future F1

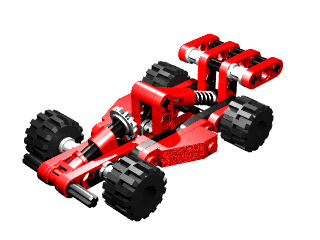

iso revolve
Click the image to download the LDraw file of this model.
Model by Michael Heideman
This little F1 racer, released in 1998, had a single shock absorber supporting a trailing arm suspension but no other features.  The red rotor parts used to attach the side fairings are rare as is the red shock.

Features
Suspension

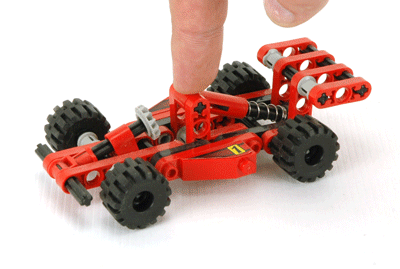

The entire rear end of the body is pivoted on a trailing arm which is supported by a diagonal shock absorber.  The result some odd looking suspension motion as seen in the animation.

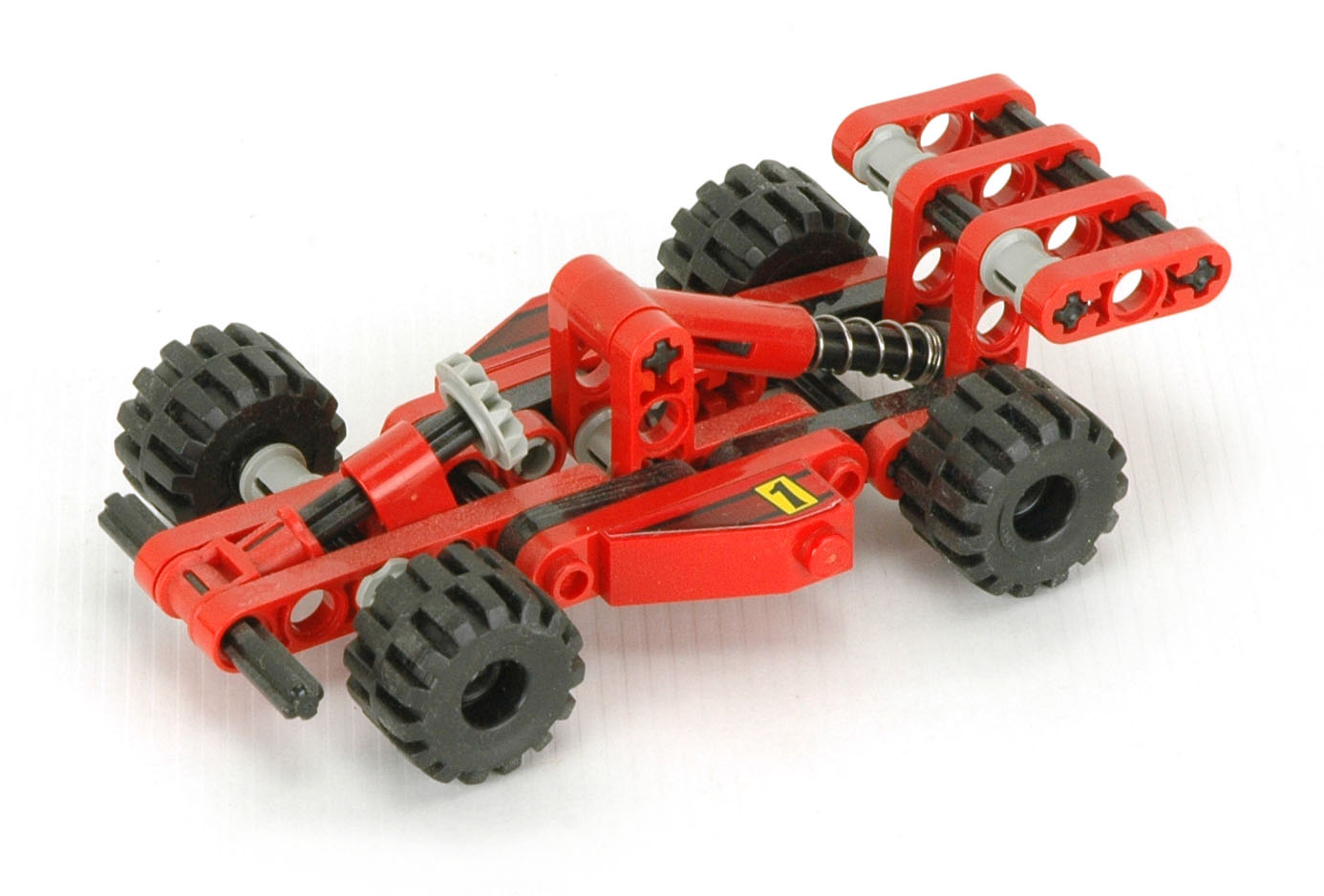

 iso
Click for an animation of the suspension in motion.


Other Views

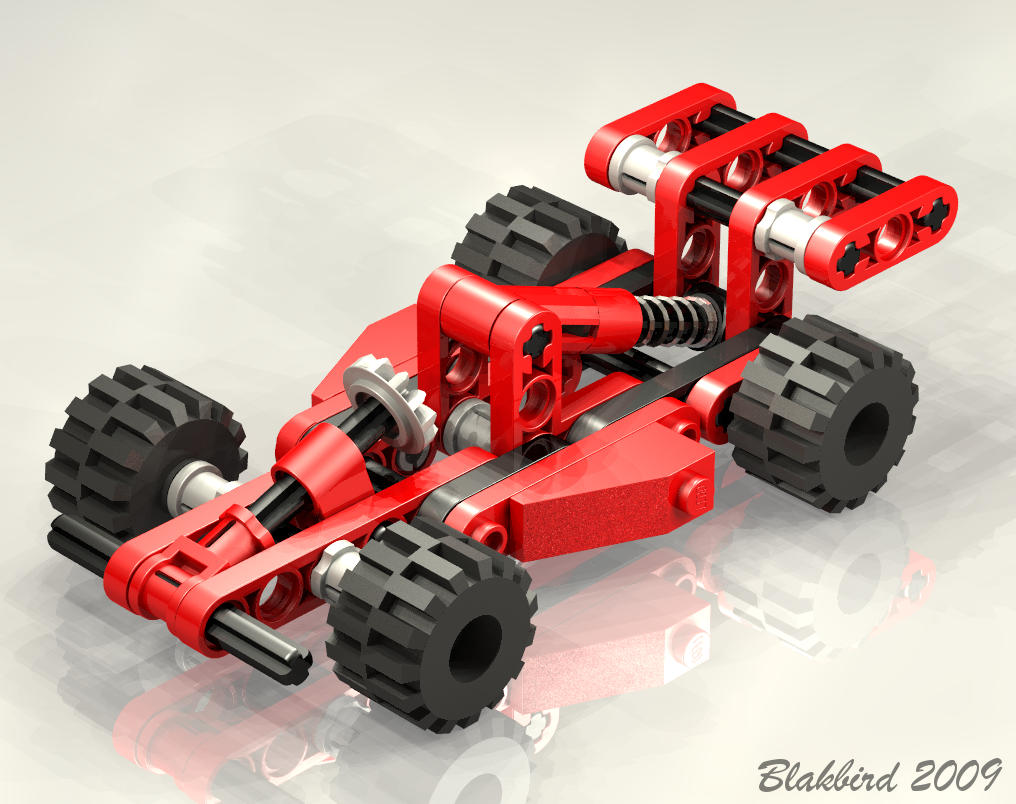

Computer Render
Render

Contact me with comments on this page.
