Original Year
 1998
# of pieces
 41
Categories
 Aircraft:  Airplanes
Other: Mini/Micro
Dimensions
 15(L)x22(W)x6(H)
Features
 Propeller
Other Views

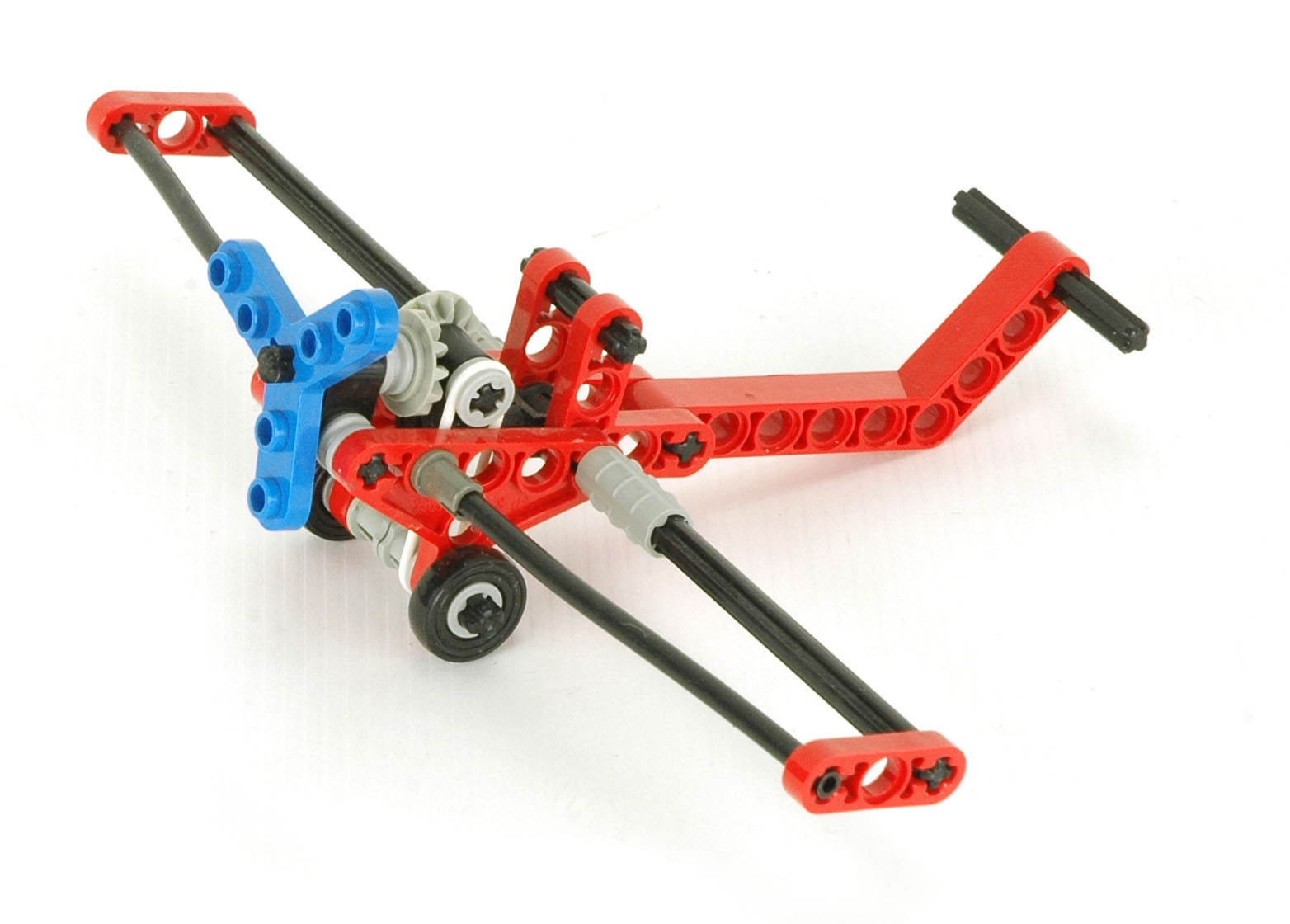

8204 Sky Flier 1

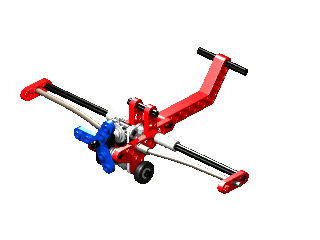

iso revolve
Click the image to download the LDraw file of this model.
Model by Eric Albrecht
The Sky Flier 1 is a bit of an oxymoron in being one of the larger micro models.  This little red plane has a rear spar and horixontal stabilizer made of nothing more than an axle, and a leading edge made from a flexible tube. Unlike the other micro models, it actually has a couple of gears and an real mechanical function.

Features
Propeller

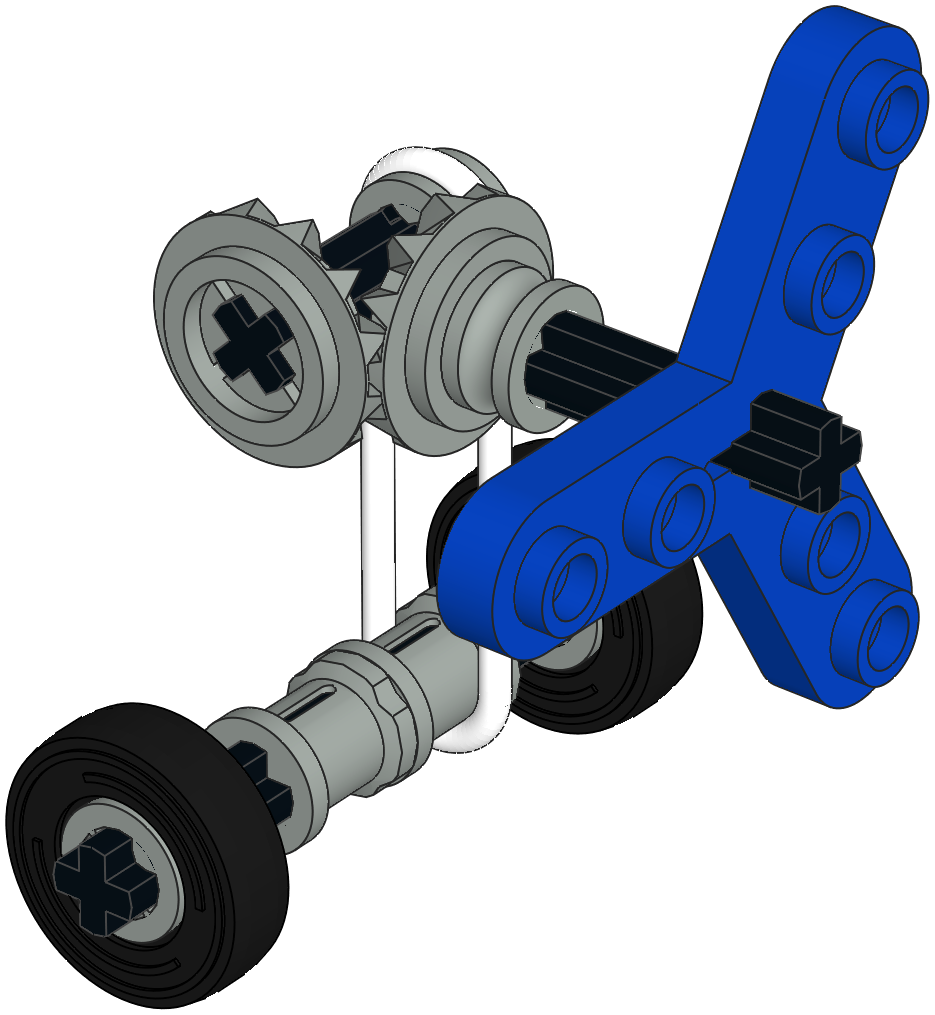

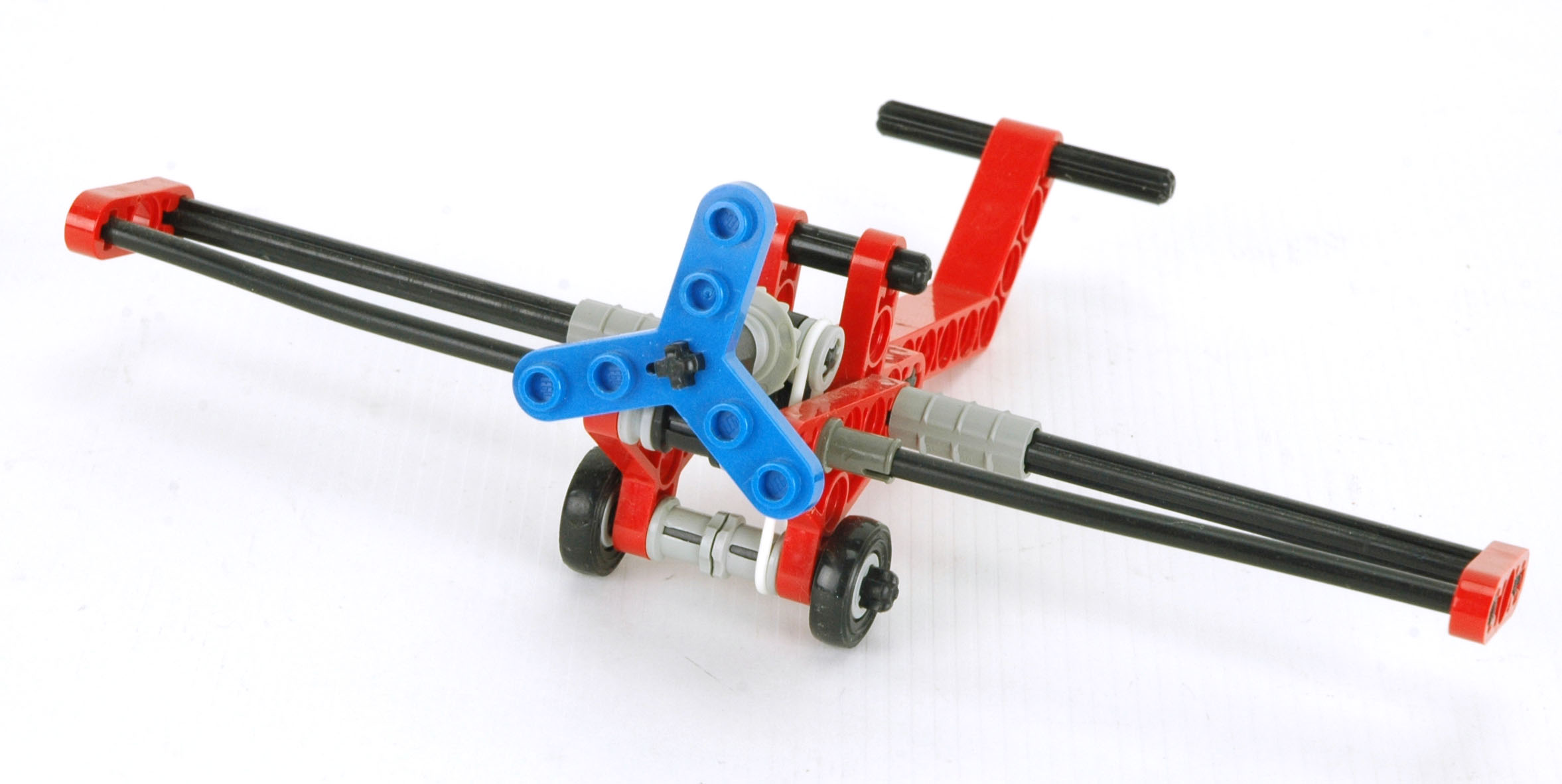

The 3 blade propeller is geared to a transverse axle and then connected to the main landing gear with a belt.  As the model is pushed along, the prop spins.  The belt adds considerable friction to this feature, so some pressure must be applied to the model to give the wheels enough traction to grip.

 props    props
Click for an animation of the propeller in motion.


Other Views

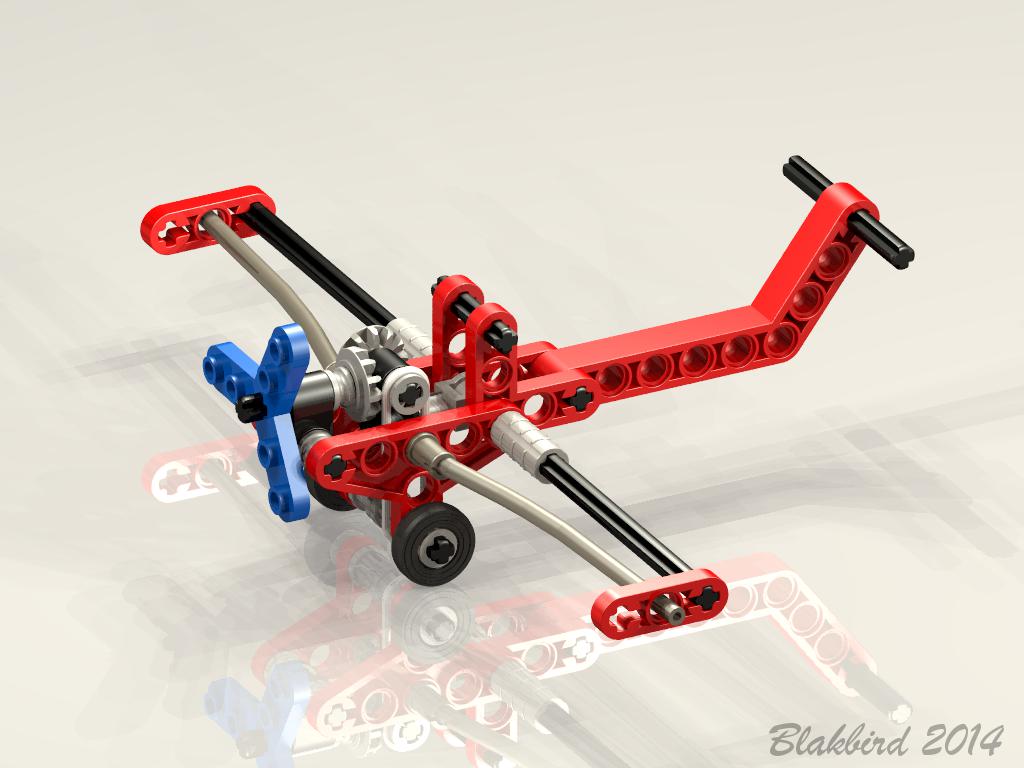

Computer Render
Render
