Tamiya Clod Buster Gray Project

clod    clod

I've built two Clod Busters before, the "original" 58518 Super Clod Buster which I customized greatly and the 47432 Clod Buster Black Edition which I left stock.  Both of them were destroyed in the 2022 fire, so when the Gray Edition was announced, I figured I might as well get that one both as a replacement, and as a way to do something at least slightly new

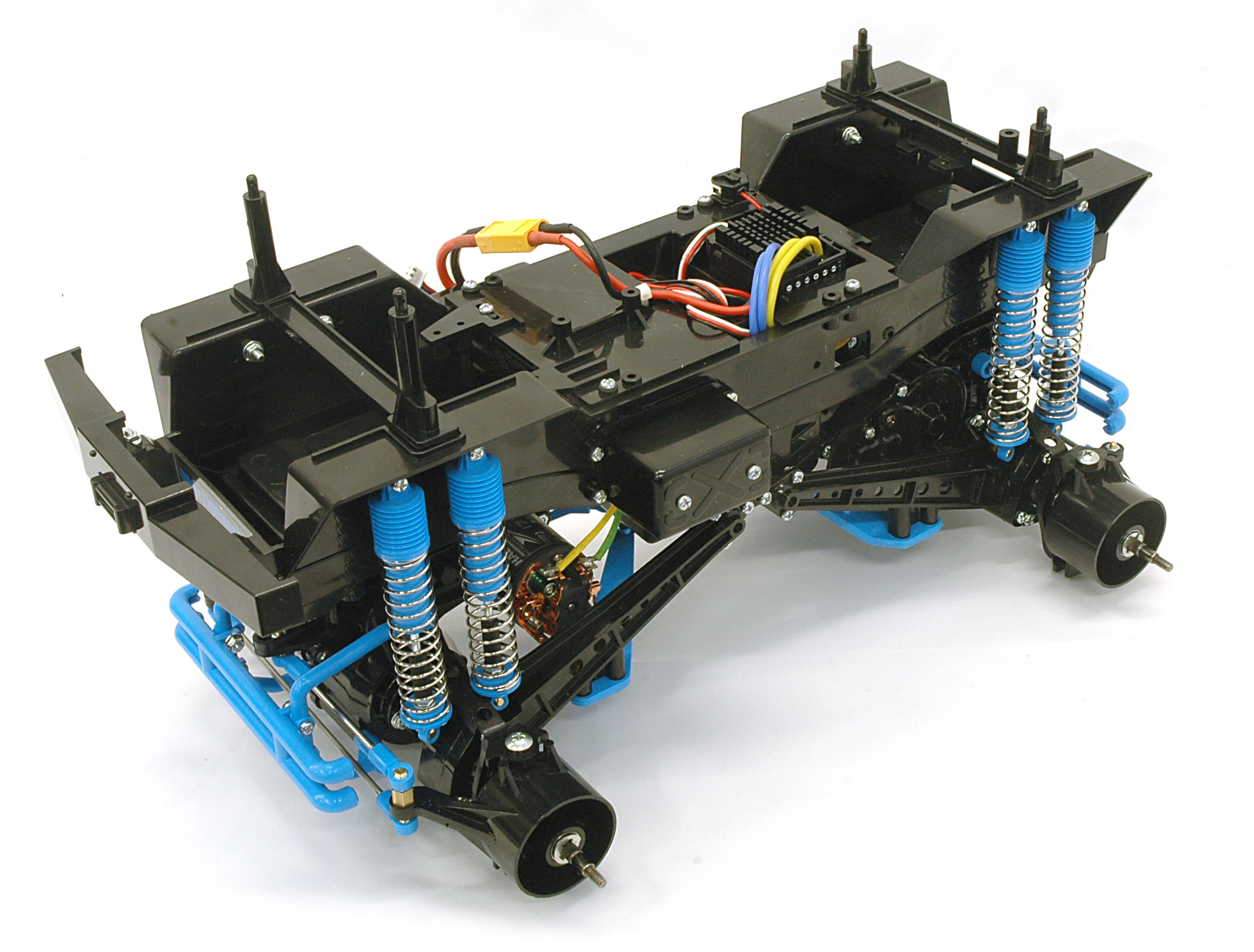

Like the original Clod Buster, this is a real scale monster truck with solid axles, four wheel drive, four wheel steering, giant tires, 8 huge shocks, and a scale body that looks an awful lot like a 1983 Chevy truck (the body was originally a licensed Chevy, but no longer uses the logo in the latest incarnation).  It uses a single chassis mounted servo for 4WS and the power system is a pair of 540 sized motors mounted directly to the axles.  The overall layout is pretty accurate to a real monster truck.

This time around, I left the build almost stock except I replaced the silver cans with 17T motors from Yeah Racing which was made possibly by the included Hobbywing 880 twin motor ESC.  This gave me enough power to pull wheelies and enough speed to get the shimmy of death, so I think I've successfully maxed out on power.  I'm pretty happy with the final result.  I used a pathetic analog servo again because this chassis was designed for those old servos and anything stronger just gets lost in the servo saver.

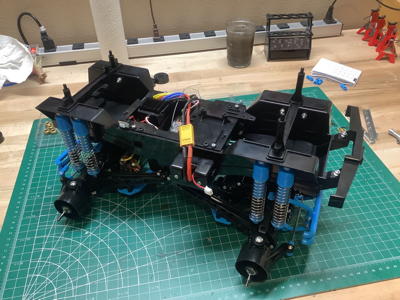

frame
Page 1: Assembly


Page 2: Final Photos

Description
Manufacturer
Model #
Super Clod Buster (Gray Edition)
1/10 Scale R/C 4x4x4 Monster Truck Kit
Tamiya
92437
Hackmoto V2 17T 540 Brushed Motor x2 Yeah Racing
MT-0018
13 Tooth 32p Steel Pinion x2
Incision
IRC00261
Dual Motor Brushed
Electronic Speed Control
Hobbywing
THW-880
2 Channel 2.4 GHz DSMR Receiver
Spektrum
SR215
Standard Ball Bearing Steering Servo
EcoPower
ECP-100
Super Clodbuster Sealed Bearing Kit
Fast Eddy
TFE1870
Ultra Bright LED Light Kit
Yeah Racing
LK-0001WT
TS-48 Gunship Grey Paint
Tamiya
85048
TS-29 Semi-Gloss Black Paint
Tamiya
85029
