Cross RC WT-4 Tow Truck Project

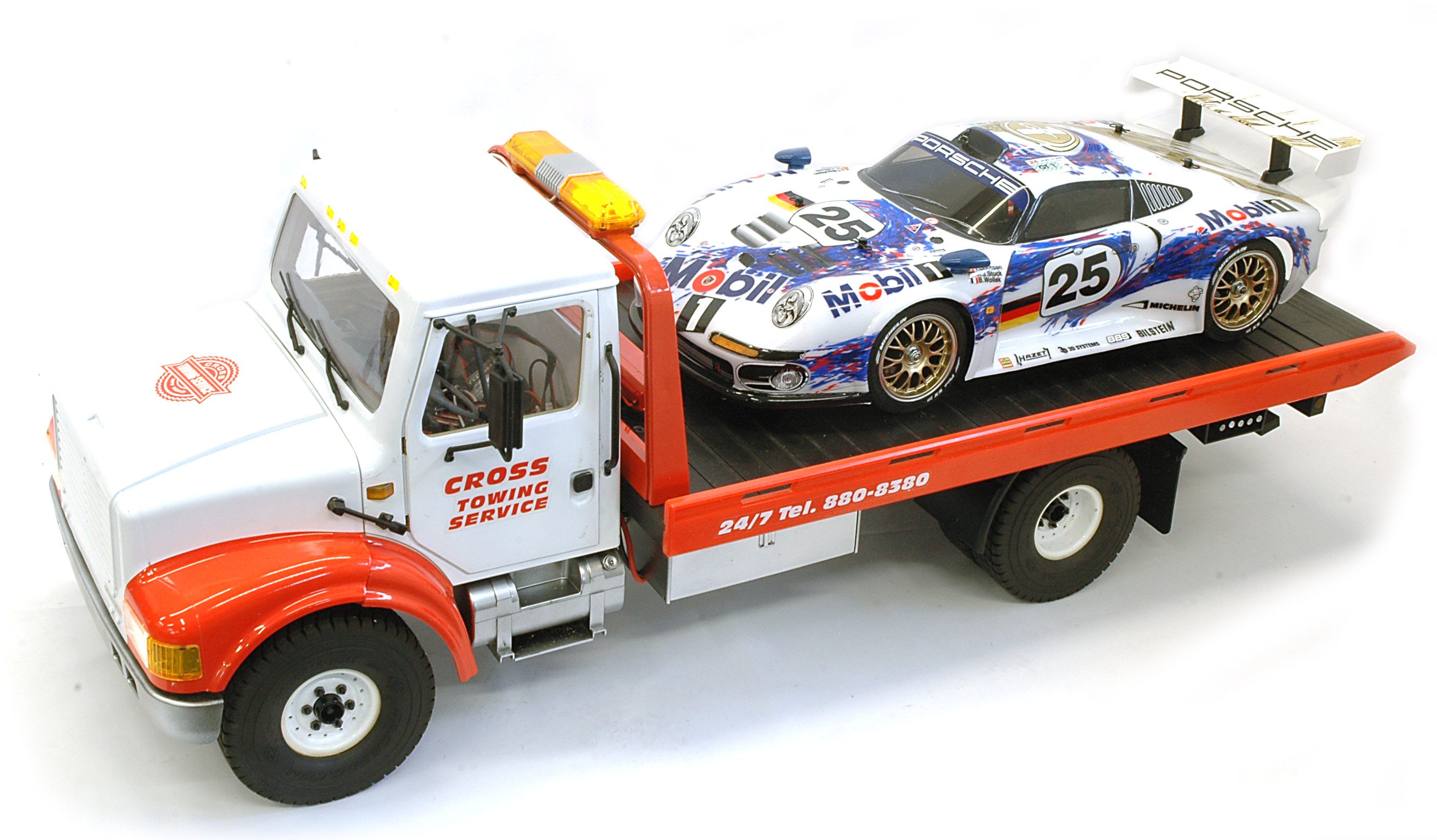

I've had several Cross RC trucks and I always love them, but when this tow truck was announced I knew it was a bit different.  Tamiya semi trucks (including tow trucks) tend to be 1/14 scale, and Cross RC military trucks tend to be 1/12 scale, but this flatbed tow truck was listed as 1/10 scale.  That means it would actually be usable as a recovery vehicle for my vast array of 1/10 scale RC vehicles.  It also means that this truck is absolutely huge.

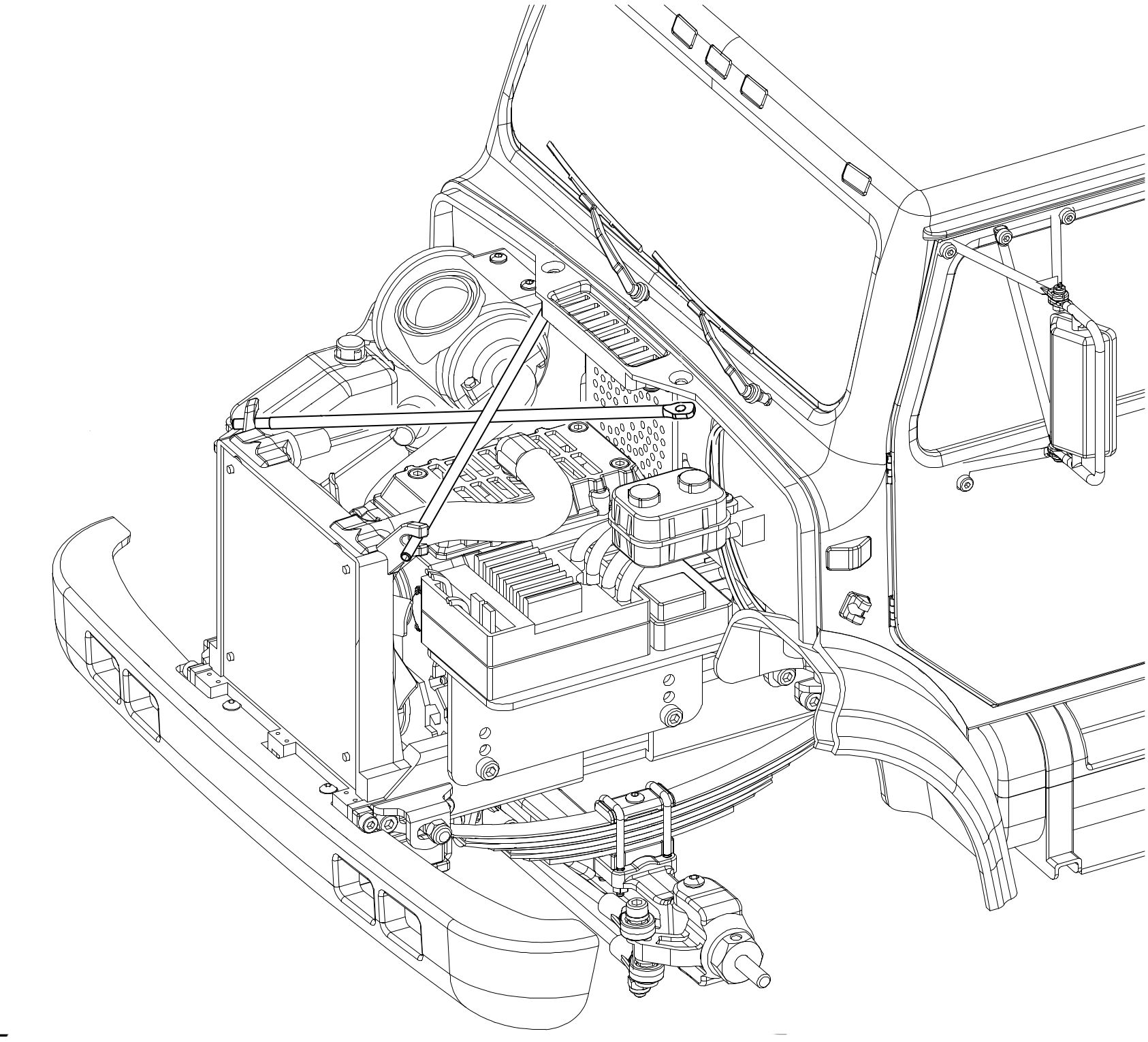

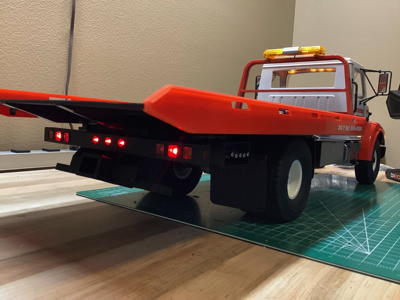

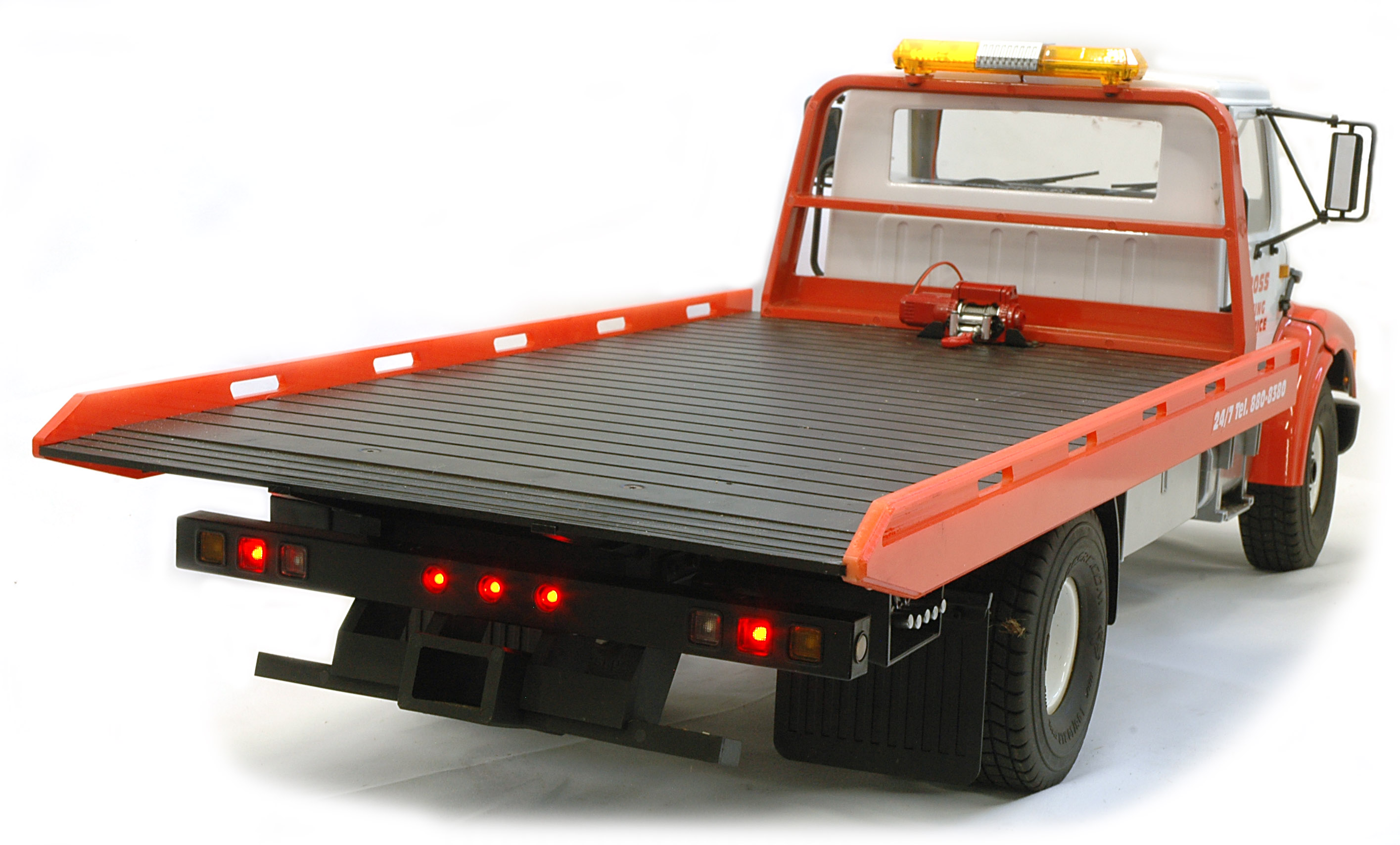

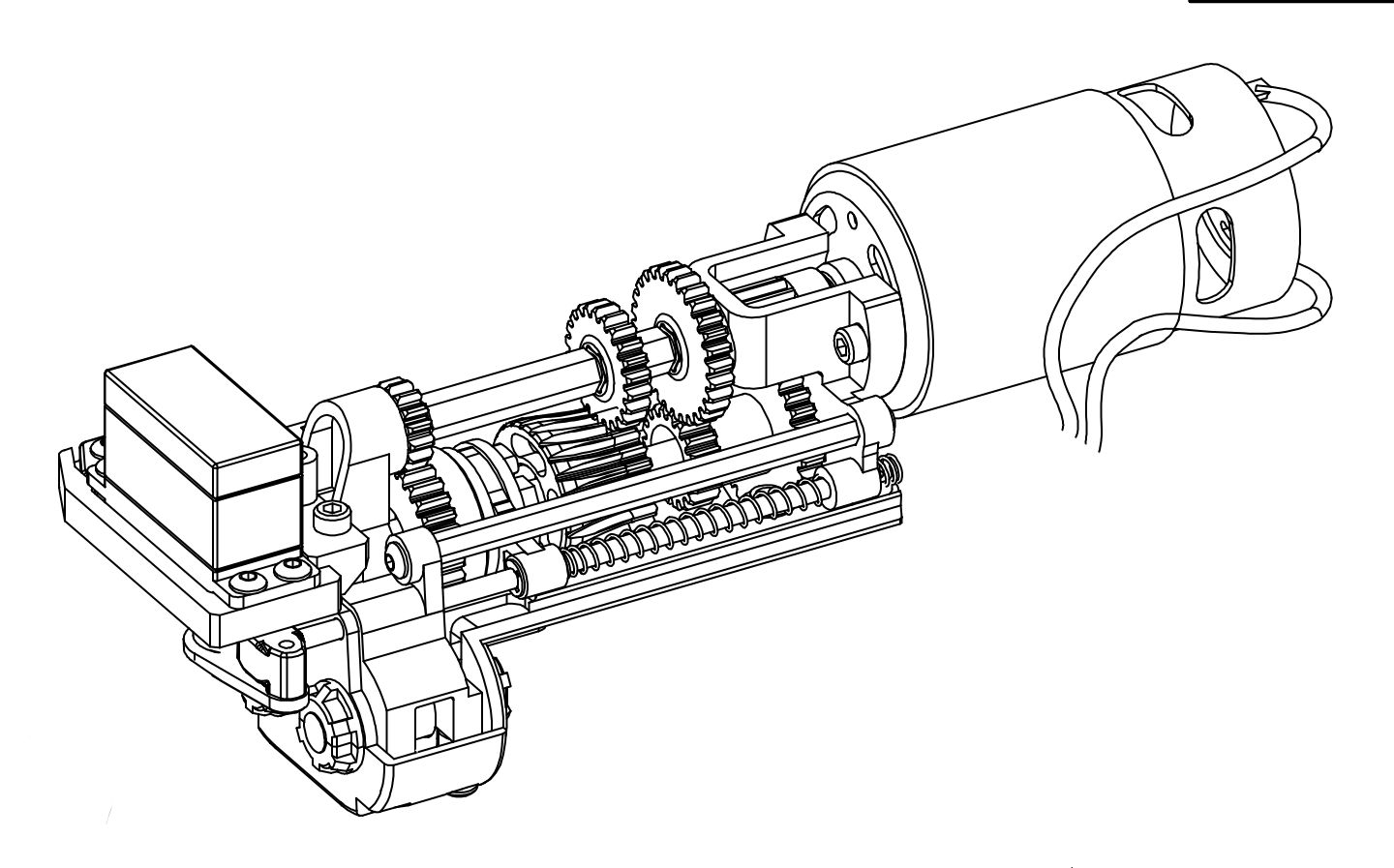

This is not a crawler or a trail truck.  It is rear wheel drive with leaf springs and solid axles.  The differential is manually lockable which gives it a little bit of off road capability. It also comes with a lot of features.  It has a full light kit including headlights, markers, tail lights, brake lights, reverse lights, turn signals, dash lights, and even a working light bar.  There is a scale engine and transmission under the hood with the motor inside and a two speed gearbox.  The belts and fan at the front of the engine are motorized.  The bed is motorized to tip and extend remotely.  There is even a working winch at the front of the bed for pulling vehicles on board.  Hood and doors open and latch.  There are real dually wheels on the back.  It uses a metal ladder frame chassis.  I added a diesel sound system.  And finally, it looks really good.

I stuck with the stock 38T brushed motor and a simple but powerful steering servo.  Gearbox shifting is done with a mini servo, and the motors for the flatbed are powered by the BEC.  I I needed all 6 channels of my radio and that still wasn't quite enough.  The truck is plenty fast on either 2s or 3s and has lots of power.

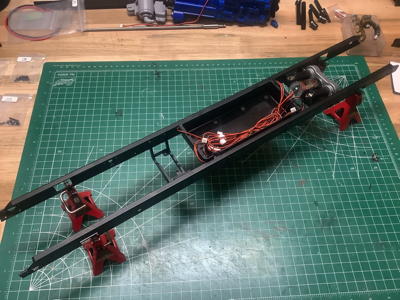

Page 1: Chassis Assembly


Page 2: Final Photos

Description
Manufacturer
Model #
WT-4 1/10 Scale Flatbed Recovery Truck
R/C Model Kit
Cross RC
CZR90100107
38T 560 Brushed Motor Cross RC
10624
12 Tooth Steel Pinion
Cross RC
94044
Quicrun Waterproof 80A Brushed
Electronic Speed Control
Hobbywing
WP 1080 G2
6-Channel 2.4 GHz DSMR Receiver
with AVC
Spektrum
SR6200A
Waterproof High Torque Metal Gear
Steering Servo
EcoPower
WP120T
S011M Digital Shift Servo
Cross RC
CZR97400883
Truck Engine Sound System for
R/C Military / Tractor Trucks
Cross RC
CZR97400067
1.5" Speaker
Cross RC
CZR92296005
TS-26 Pure White Paint
Tamiya
85026
TS-31 Bright Orange Paint
Tamiya 85031
