Tamiya TT-02BR Project
Page 1: Stock Assembly
I've built the TT-02B MS before and documented it in detail. Please see that page for more information. I'll only discuss the relevant differences here.
There are a lot of upgraded parts included in the TT-02BR so I'll use

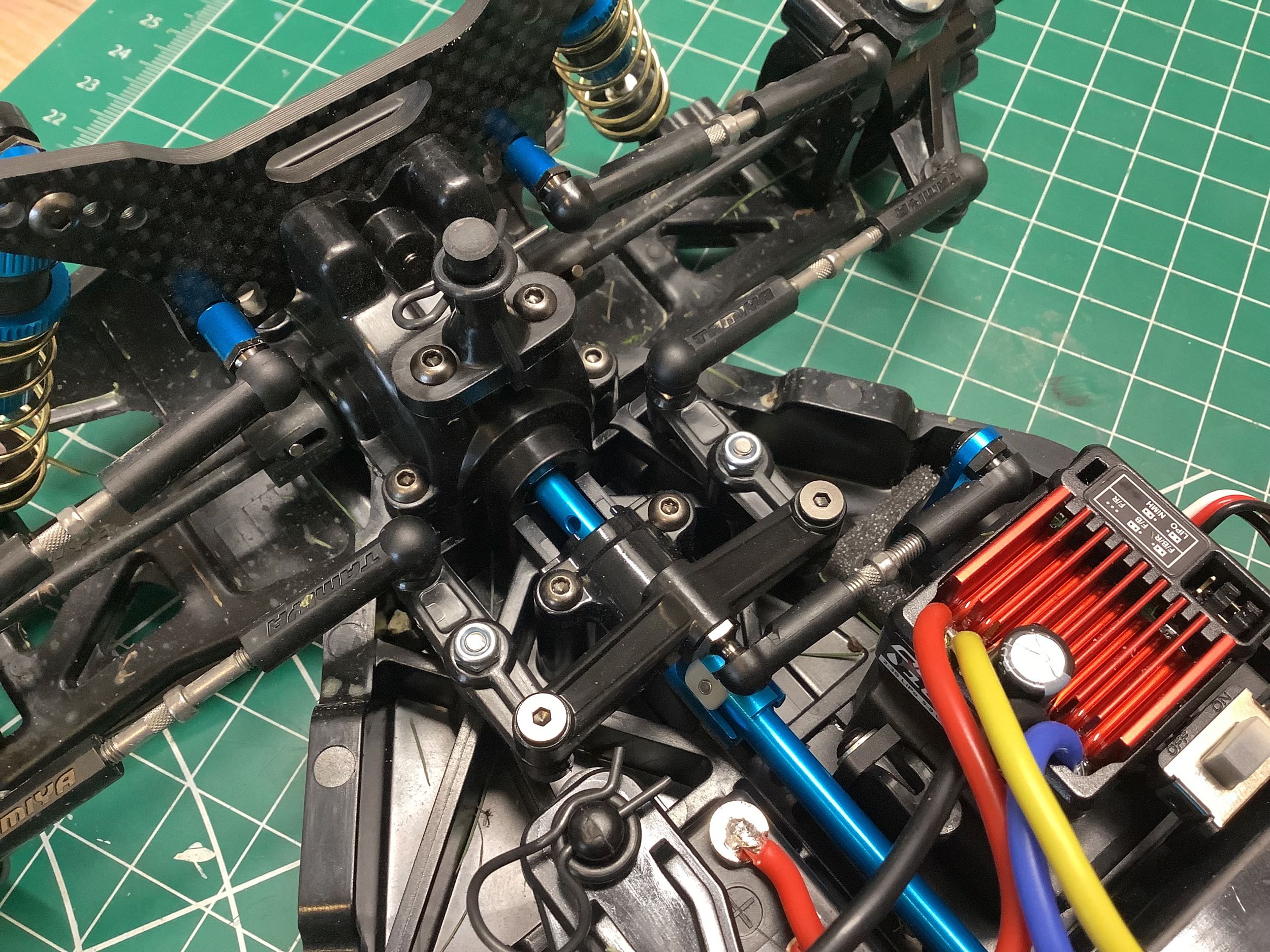

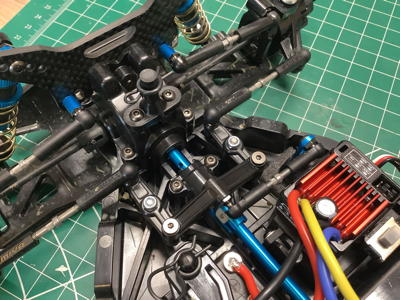

these photos to run through as many of them as I can. On the left
you can see the steering cranks which are actually still plastic.
Not sure why they didn't include the nice aluminum upgrades which are
still available. The servo saver is the high torque version with
an aluminum horn. You can see the aluminum prop shaft and upgraded
drive cups at either end. The drive cups are new parts modified
from the old versions by having two slot widths depending on whether or

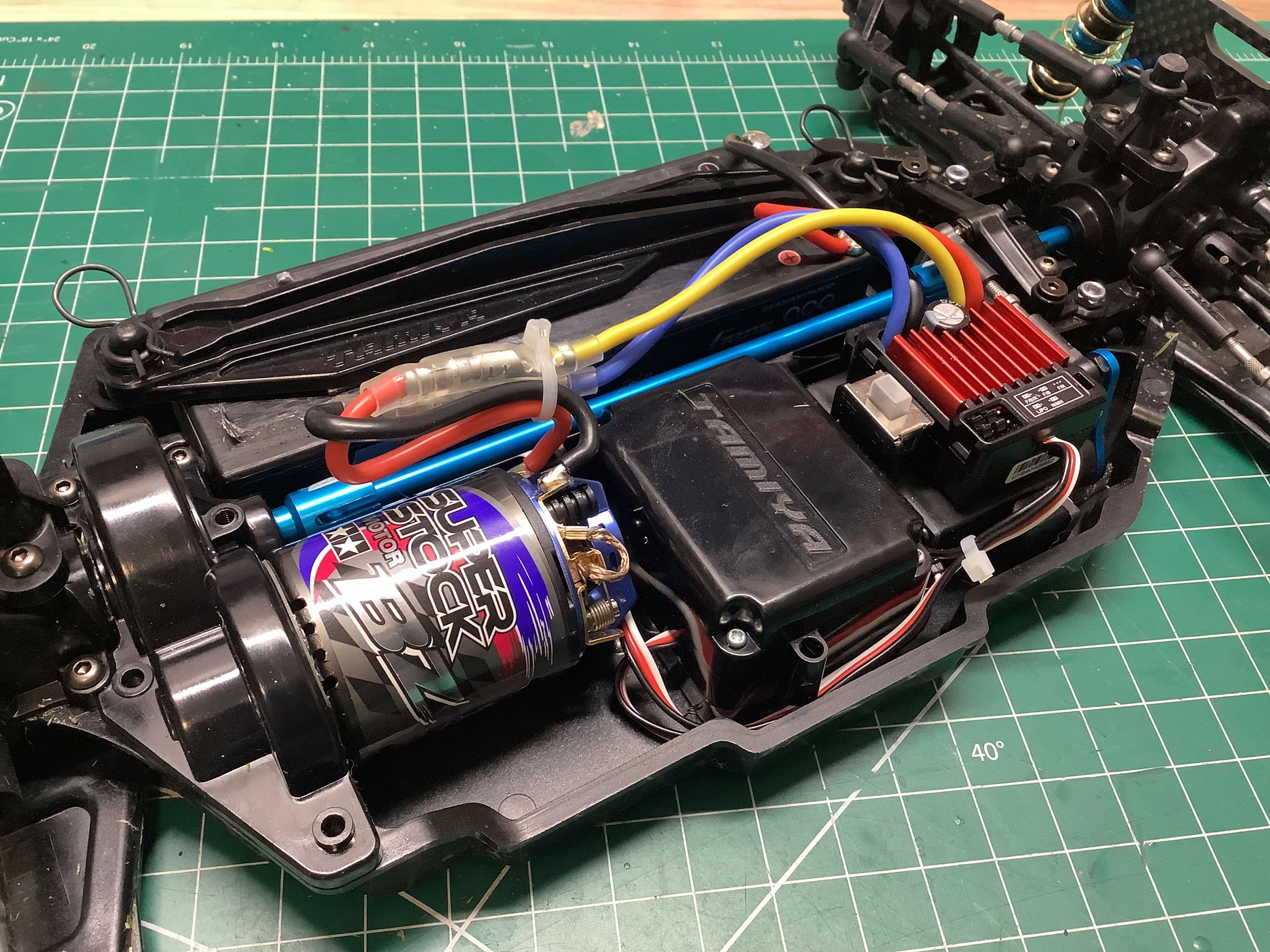

not you are using a prop shaft with blades on the ends. The
electronics area is stock but I used a nice Super Stock motor.

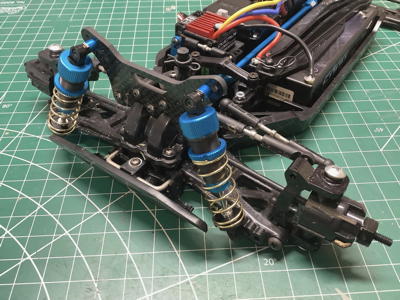

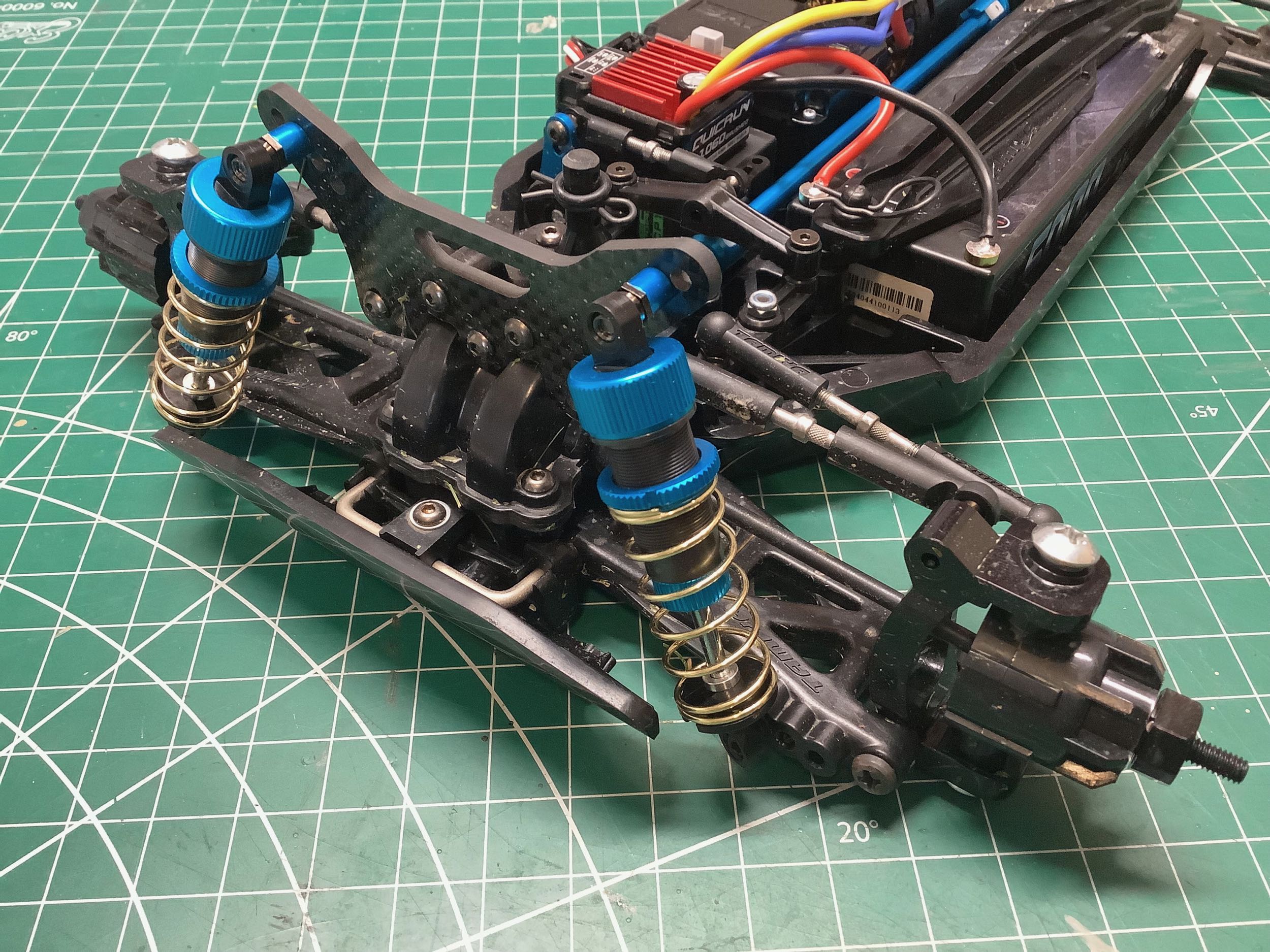

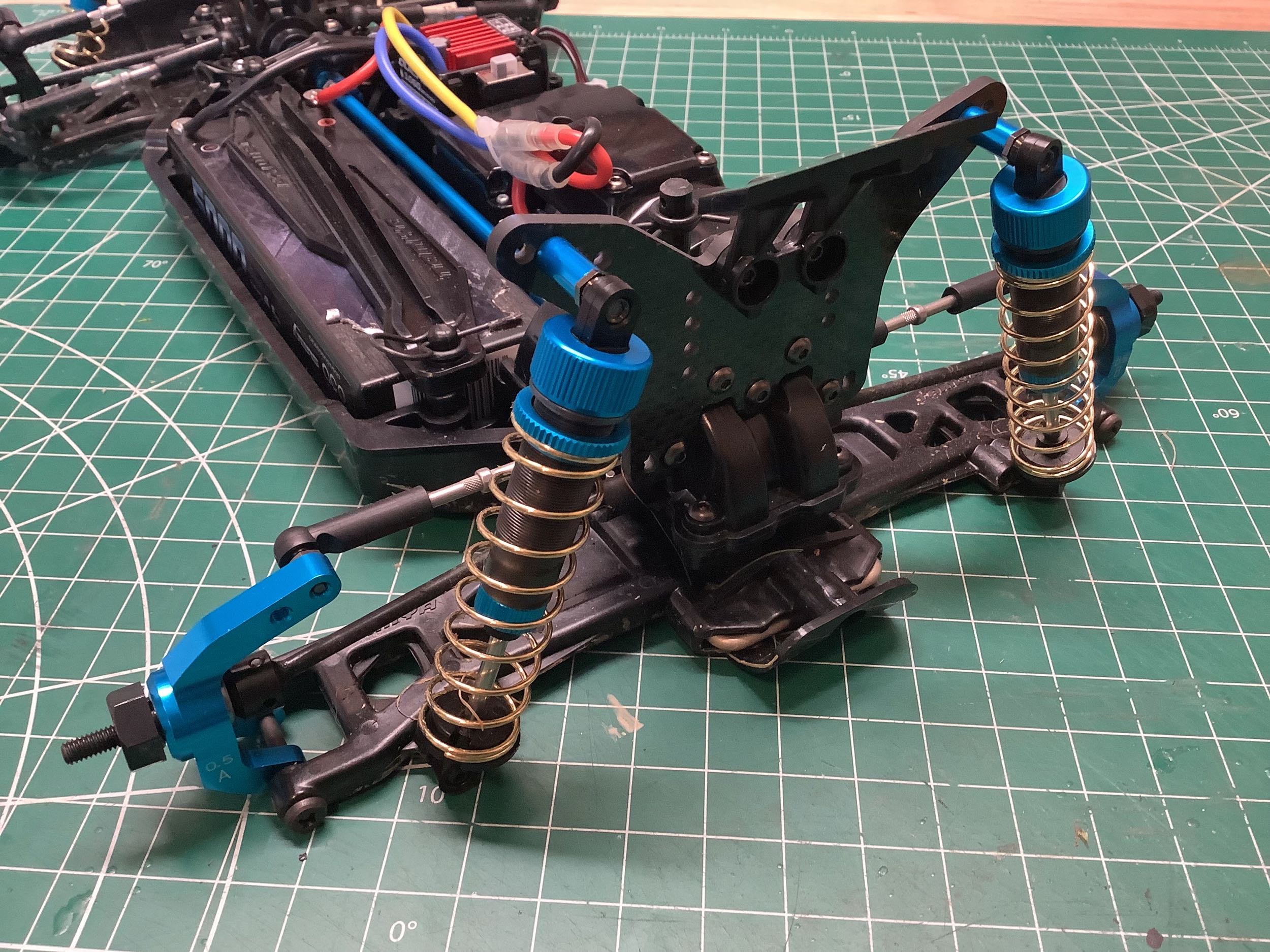

The suspension shows most of the upgrades, the most significant of which
is the TRF shocks. These are new versions which add knurling to
the shock caps. Also visible are a full set of turnbuckles,
aluminum rear uprights, CVD drive shafts, and carbon shock towers.
The lower suspension arms are now carbon filled, but that's pretty hard
to see. The upper gearbox housings are also carbon filled.
Hidden inside those housings are upgraded sealed gear
differentials. There are also full ball bearings and hex hardware
throughout.
