Tamiya TT-02BR Project



There sure have been a lot of versions of the TT-02.  As of the date of this writing, I count 125 individual kits using 13 versions of this chassis.  The original basic TT-02 touring car chassis came out in 2013 and has been sold with at least 50 different bodies and 8 more were available on the TT-02D drift variant.  There were standalone versions of these basic chassis with no body included, and then there were many upgraded variants such as the TT-02S, TT-02D S, TT-02R, TT-02RR, TT-0SR, and TT-02SRX.  The TT-02T was a truck version and the TT-02FT was a truck version with tracks.  The TT-02B buggy version used longer suspension arms, bigger wheels and tires, and longer travel shocks.  The previous ultimate version of the buggy was the TT-02B MS which I built in 2020 but subsequently lost in a fire.  It represented an incredibly deluxe version of a TT-02B and I would have really like to replace it, but it was just not feasible at any reasonable price since it was limited edition and out of production since 2015.  Then my fortunes turned around in 2023 when Tamiya released the TT-02BR.  In many ways this chassis is even more deluxe and upgraded than the MS version, but unfortunately lacks the epic MS livery.  In fact, it doesn't include any livery at all, although a Neo Scorcher body is included in the box.

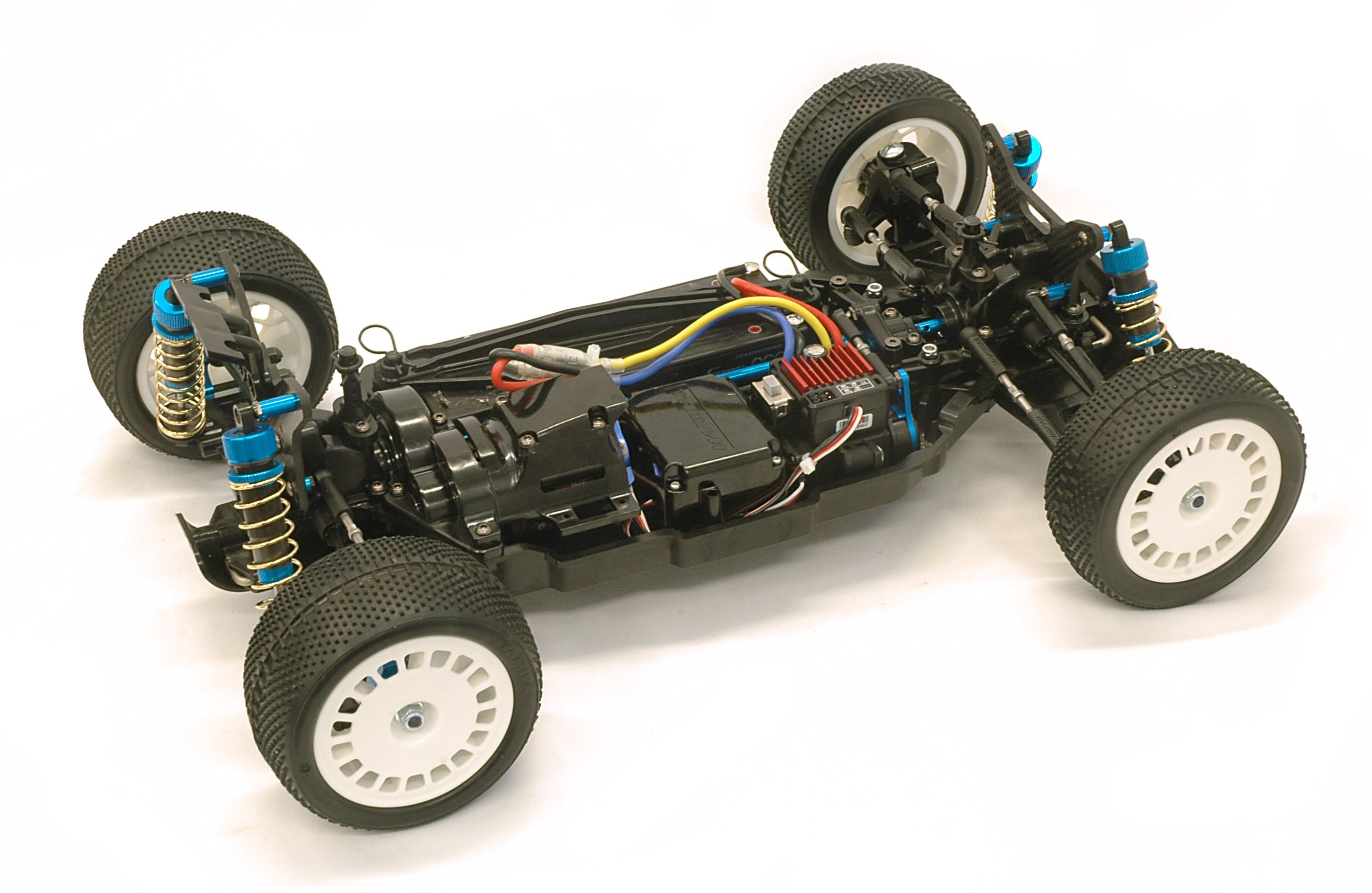

So what's the difference?  The table below lists all of the upgrade parts that come in the box compared to a standard TT-02B, and the list is long.  The MS chassis was actually not that deluxe and included ball bearings, FRP shock towers, and an aluminum prop shaft and rear uprights.  The shocks were just white plastic CVA shocks.  The BR kicks this up several more notches with TRF aluminum shocks, full hex hardware, carbon shock towers, CVA axles, sealed gear differentials, and turnbuckles.  Although this is a very expensive chassis for a TT-02, I calculate that the upgrades alone have an MSRP of about $450 so it is actually a pretty good value if you intend to upgrade it anyway.  The only obvious upgrades it does not include are the aluminum steering cranks and bridge.

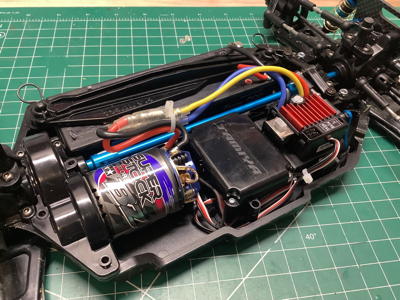

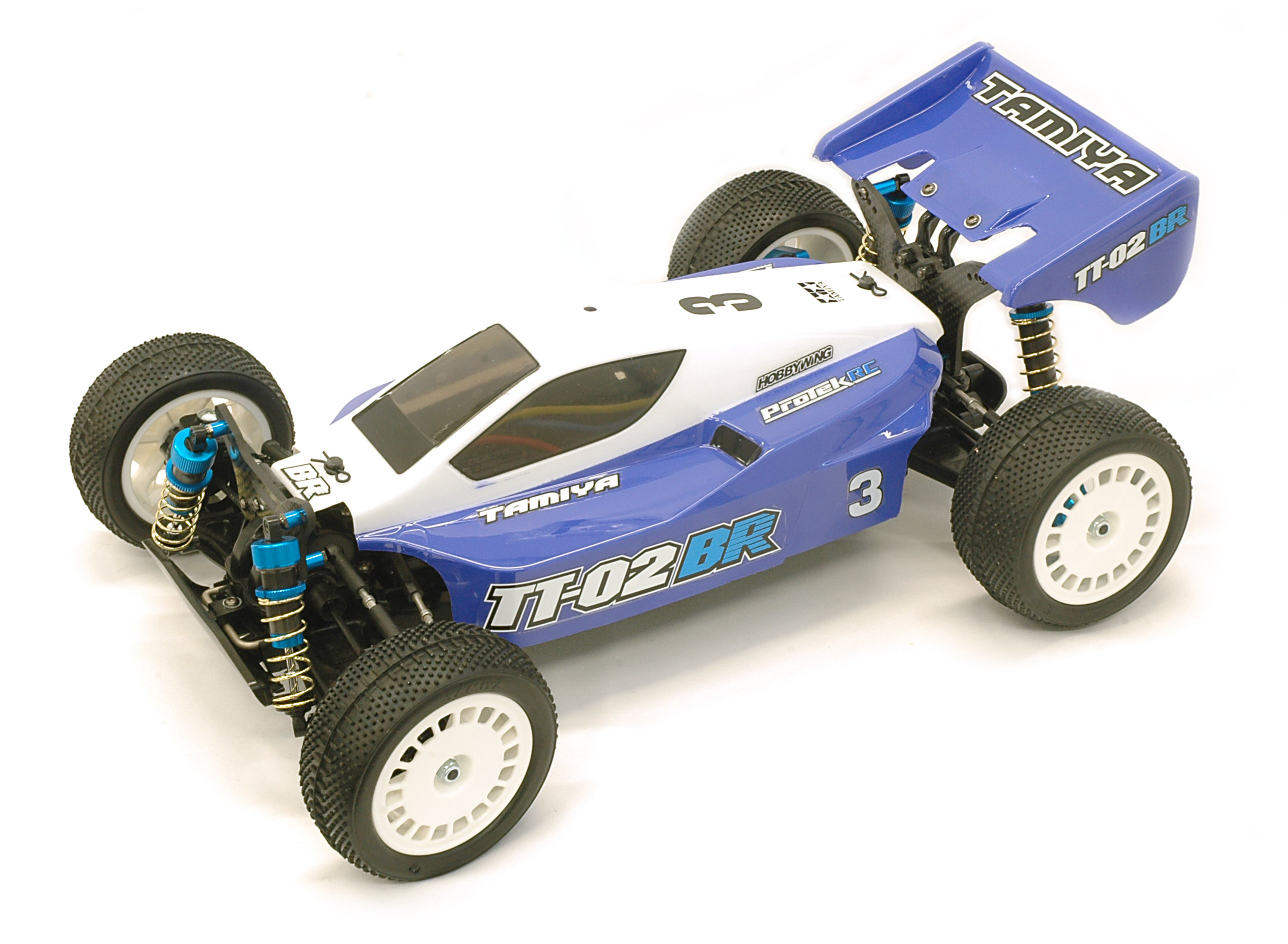

I used a 23T Super Stock motor in my copy to try to get some decent performance out of it without making it into something it isn't.  I also put on some basic dual block tires (not included in the kit) in hard K compound.  I painted the body in two-tone white and violet blue.  Even though the kit came with a TRF 201 racing wing, I prefer the basic wing from the Neo Scorcher so I used that.  It's a good looking, fun, durable 4WD buggy that I can drive hard without worrying about damaging something that's too valuable to drive.


Page 1: Assembly


Page 2: Final Photos

Description
Manufacturer
Model #
TT-02BR 1/10 Scale R/C 4WD
High Performance Off Road Racer Kit
Tamiya
58717
Super Stock BZ 23T 540 Brushed Motor
Tamiya
53930
Quicrun Waterproof 60A Brushed
Electronic Speed Control
Hobbywing
1060
2 Channel 2.4 GHz DSMR Receiver
Spektrum
SR215
Standard Ball Bearing Steering Servo EcoPower ECP-100
Dual Block Tires K (65/25)
Tamiya 54185
Dual Block Tires K (65/35) Tamiya 54186
PS-35 Blue Violet Paint
Tamiya 86035
PS-1 White Paint
Tamiya 86001
XV-02 Gear Differential Unit x2
Tamiya 22049
TT-02 Aluminum Prop Joints
Tamiya 22066
XV-02 0.6 Mod 70T Spur Gear
Tamiya 51694
TT-02B Ball Bearing Set
Tamiya 53497
DF-02 70mm Universal Shaft Assembly x2
Tamiya 53791
TT-02 Aluminum Rear Uprights
Tamiya 53793
Off Road Wheels (65/25)
Tamiya 53880
Off Road Wheels (65/35) Tamiya 53881
TRF201 Rear Wing Set
Tamiya 54211
TT-02 Aluminum Propeller Shaft
Tamiya 54501
TT-02B Full Turnbuckle Set
Tamiya 54539
Hard Coated 0.6 Mod 17T Pinion Gear
Tamiya 54768
TT-02 High Torque Servo Saver
x/ Aluminum Horn
Tamiya 54799
TT-02B Reinforced C-parts
Tamiya 54815
TT-02 Reinforced Lower Deck (Black)
Tamiya 54926
TT-02B Aluminum Damper Set
Tamiya 54993
TT-02BR Carbon Front Shock Tower
Tamiya 4305700
TT-02BR Carbon Rear Shock Tower Tamiya 4305701
TT-02 Aluminum Spur Gear Mount
Tamiya 9803156
Highlighted parts came with TT-02BR Chassis Set
