Tamiya Scania R620 Highline Project



The Scania R620 Highline is the 9th Tamiya tractor truck to be released, and my 3rd.  The 56323 R620 is the 6x4 version which came out in 2009, 2 years after the 56318 R470 4x2 version.  I'm not sure why they were not released at the same time since they seem the same apart from the extra axle.  Even though the shorter trucks have a better turning radius, I prefer the appearance of the dual rear axles so I picked the R620.  The real Scania is a Swedish tractor truck, and one of the few to have a V-8.  Most big diesel trucks have a straight 6.  Sadly, the Tamiya sound system does not have any options for the Scania V-8 sound although there are other competing systems which do.

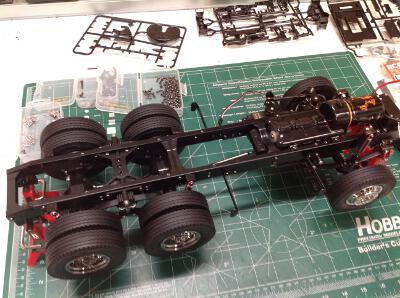

Like the other tractor trucks, this is a leaf sprung model with a 3-speed transmission and solid C-channel frame.  The rear two axles are driven and feature open metal differentials.  It is provisioned for using the MFC (Multi-Function Control Unit) for lights, sounds, and vibration.   The doors do not open but the cab tips forward to access the inside.  An interior dash and seats are included, but they are not used if you install the MFC.  Instead you can use smoke colored paint to tint the windows and effectively hide the wiring without totally blacking out the transparency.  I used a 55 turn motor in lieu of the 27 turn silver can in the box since that one seems much too fast.

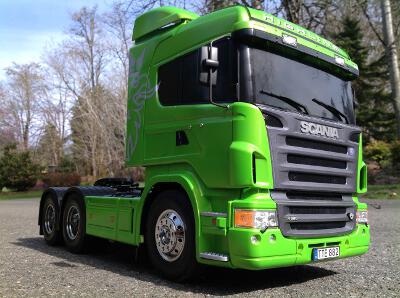

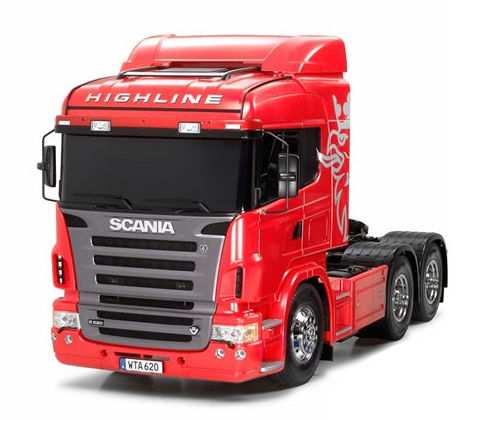

I wasn't sure what color I wanted to do this model except that I didn't want it to be the red used on the box art.  That just didn't speak to me for some reason.  When researching the Tamiya tractor trucks I happened upon the 23801 which is a limited edition factory finished (pre-built and ready to run) version of the Mercedes Actros Gigaspace painted in Candy Lime Green.  I loved the way it looks, but it costs a fortune and I'd rather build it myself.  I decided to borrow the color idea for this similar shaped Scania and I'm glad I did.  I think it looks just right.  I chose a gun metal for the grille and black for the trim.  The color tends to get overexposed in photographs so I don't feel like they really do the truck justice.

Update:
This model was destroyed in the 2022 fire.  It has not been replaced.

frame
Page 1: Stock Assembly


Page 2:  Upgrades!

Page 3: Final Photos

Description
Manufacturer
Model #
Scania R620 Highline 1/14 Scale
Radio Control Tractor Truck Kit
Tamiya
56323
Multi-Function Control Unit
Euro Style (MFC-03)
Tamiya
56523
Trail Breaker 55T Rebuildable
Electric Motor
AxialAX31330
Standard Ball Bearing
Servo x2
Tamiya
S3004
4 Channel 2.4 GHz Receiver
Futaba
R204GF-E
Side Metal V8 Logo
CChand
VVV-C0020
Spoiler with R620 Logo
CChandVVV-C0079
Custom New Rear Bumper
CChandVVV-C0223
TS-52 Candy Lime Green Paint x2
Tamiya
85052
TS-13 Clear Paint
Tamiya85013
TS-29 Semi Gloss Black Paint
Tamiya85029
TS-30 Silver Leaf Paint
Tamiya85030
TS-38 Gun Metal Paint
Tamiya 85038
TS-71 Smoke Paint
Tamiya85071
