mainad Capo Racing (or Capo Design) is a bit of an enigma.  I had heard strange tales of their all metal Tatra and their apparently impossible to build Jeep, but no one had actually seen one in the wild.  Capo is a Chinese company and they didn't have any marketing or distribution presence in North America.  Those who managed to acquire one of their products apparently did so by ordering directly from on overseas supplier.  Given the rather exorbitant prices these kits demand, that's a bit risky.  From the scattered pictures around the net, it was clear that this was a company who was serious about real engineering.

The JK Max is Capo's 7th official product, as far as I can tell.  Several of the previous models were iterations of the 8x8 Tatra 815, each successively more realistic.  There was also a 4-door Jeep and a dedicated rock crawler.  I coveted the Tatra the most, but it was also the most expensive and the hardest to find.  The Jeep was insanely complicated with working disc brakes, mutil-speed transmission, locking differentials, and shifting transfer case all of which were controlled by cables.  The JK Max is a 2-door version of the same Jeep (sharing some of the same body parts), simplified to be more marketable.  Not that it is simple.  At all.

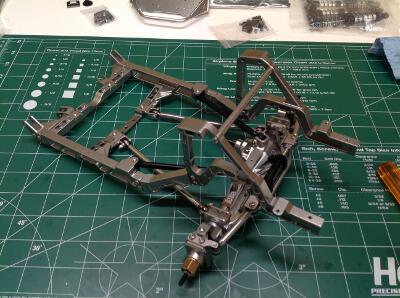

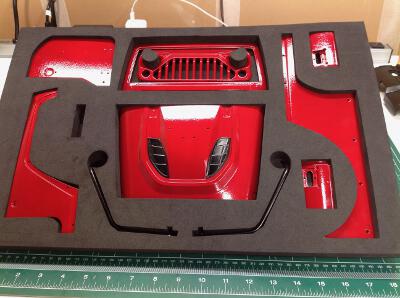

A standard radio control kit is primarily made from plastic.  From the body to the suspension to the chassis, sometimes even the drive shafts and shocks, most of the kit is plastic.  Trail trucks tend to have a bit of metal like frame rails and sometimes axles.  If you spend a lot of money on upgrades, a greater proportion can be aluminum and steel.  But the body?  The whole truck?  Never.  Not until the JK Max.  Virtually none of this kit is plastic.  The chassis, axles, wheels, cage, body, and bumpers are all aluminum.  The drivelines and gears are steel.  Don't forget an all aluminum engine and transfer case.  The floor boards are carbon fiber.  Only the seats and dash are plastic.  Wait, did I say body?  Yes, the body panels are all either stamped sheet metal or cast aluminum.

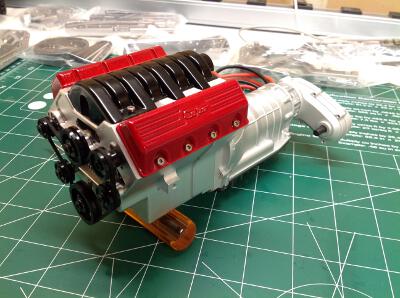

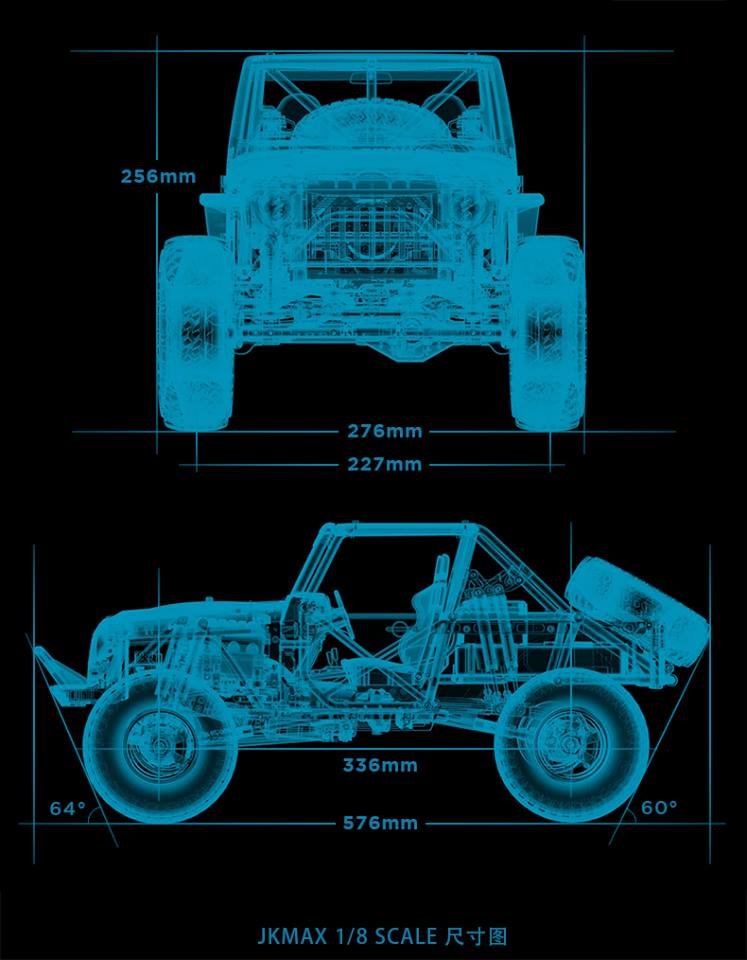

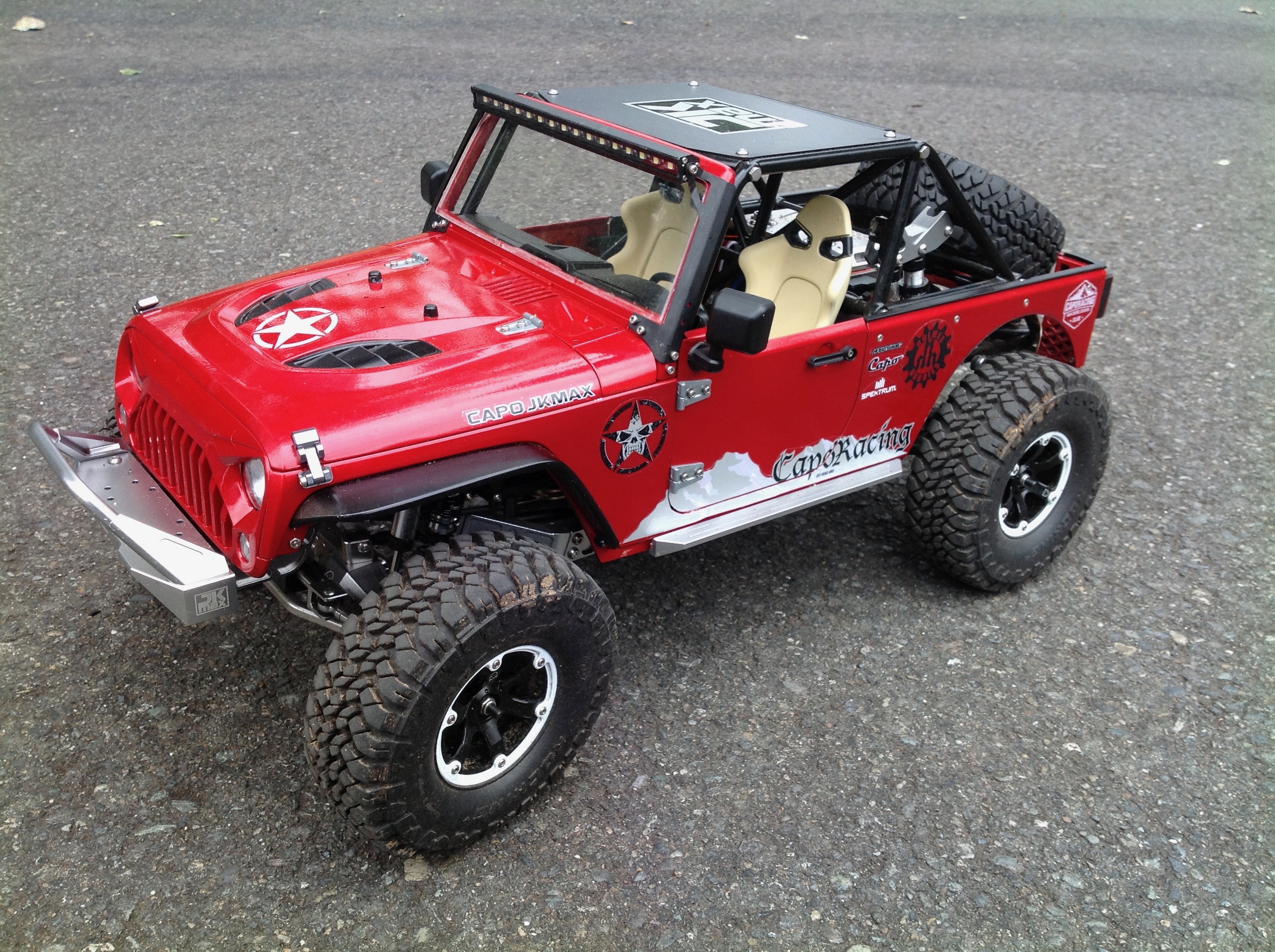

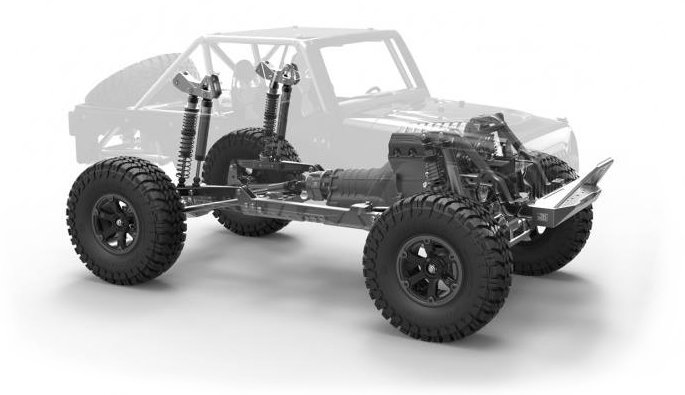

The metal bits are not all that makes this truck stand out, the feature list is ridiculous as well.  Of course it has solid axles and 4-link suspension and 4WD like pretty much all trail trucks, but that's just the start.  It also has a fully realistic V-8 under the hood which houses the motor.  The transmission is also fully realistic in appearance and houses a 2-speed gearbox.  The transmission gears are helical and mating pairs have different hardness values.  The are 8 shocks, 2 on each corner.  Each pair has one sprung shock and the other is just a damper.  There's a full lighting kit which includes headlights, brake lights, blinkers, and reverse lights.  There is a front and rear light bar.  I've also added the optional winch and the pièce de résistance, a remote locking rear sway bar.  If you were counting, that adds up to 6 channels which meant I needed to upgrade my radio just for this model.  The interior got the full detail treatment as well with opening doors, realistic dash, bucket seats, and center console.  The instrument panel and GPS light up and the steering wheel turns when the wheels turn.  In all, we need 4 servos.  A full size very high torque servo for the steering and 3 micro servos, one each for steering wheel, shifting, and sway bar.

So does all that complexity mean it is weak or unreliable?  Just the opposite.  This thing is a complete tank.  Since everything is metal and screwed together, nothing should break (unless you forget thread lock).  The performance on my Holmes Hobbies motor on 3s is incredible.  The drivetrain is quiet and capable in either gear.  What I think I like best is the mass.  The higher weight for size (density) means that it has more inertia and therefore it moves much more like the real thing over bumps and obstacles than you would expect from an RC car.  I really have nothing negative to say about it.  Even the price, which is admittedly very high compared to other kits, is actually very reasonable for what you get.

The build was blissfully long and complex, taking me a couple of weeks to get through the whole thing, documenting as I go.  Then there were upgrades and painting and, the most difficult part, wiring,  Between all the channels, servos, ESC, BEC, and light kit, there was a whole lot of wiring to run and a smallish electronics box to stow everything.  I came back a year or two later and installed even more upgrades.  There is no end to what you can do with this thing.

It is so choice.  If you have the means, I highly recommend picking one up.

Update:  I came back later and decided I should spend a LOT more money on upgrades.  I added almost everything you could possibly add to the model, making it much heavier in the process.  The only thing I didn't get is the air shock kit with on board compressor.  Maybe some day.

Update:  This model was destroyed in the 2022 fire.  It has not been replaced.
