Tamiya Porsche 935 Project



The first Tamiya RC model car ever was the 58001 Porsche 934 in 1976.  It was a little less than a year later in 1977 that the 58002 Porsche 935 was released on essentially the same chassis.  This was a very timely release because the real Porsche 935 had only just came out at that point.  It was also an interesting choice given that the 935 wouldn't win Le Mans until 1979.  There were several versions of the 935 raced and, based on the configuration of the spoiler, I think this one is the 935/77A in Martini livery.  It shares much of the body shape with the 934 except the slanted nose, the rear intakes, and the expanded spoiler. The 935 was a Group 5 car while the 934 was a Group 4 car.

All of the earliest Tamiya cars were in 1/12th scale.  While the 934 was released many times over the years, often in 1/10th scale, it took until 2008 for the 935 to be released in 1/12 scale on the Tamtech Gear GT-01 chassis as 57104.

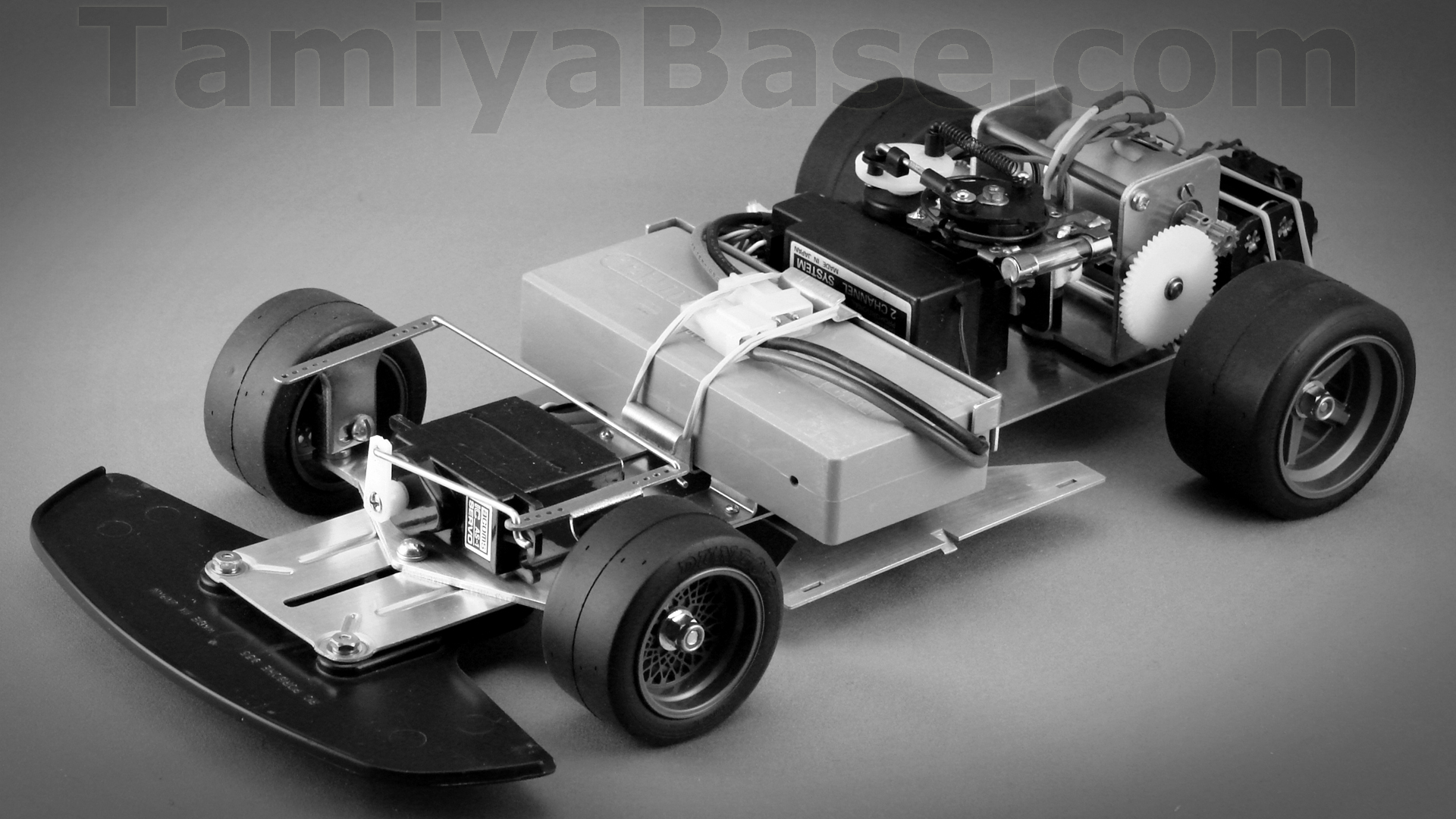

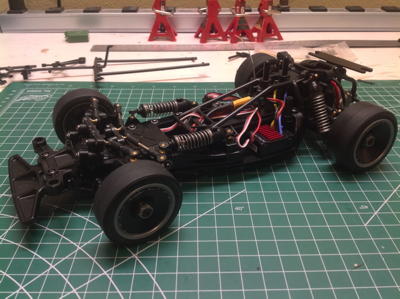

The Tamtech gear series uses the GT-01 chassis which I described in detail on my Ferrari 288 GTO page.  The chassis is quite capable if you upgrade the motor.  Oil shocks are also advisable, but they are prohibitively expensive.  I also added a simple light kit to mine to increase the realism.  The body mounts from below which allows for the excellent exterior appearance with no protruding body posts.

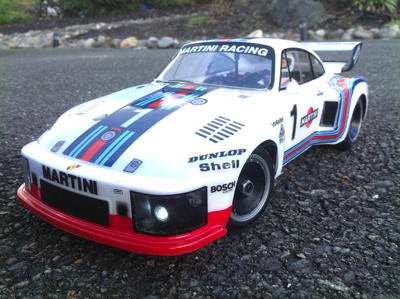

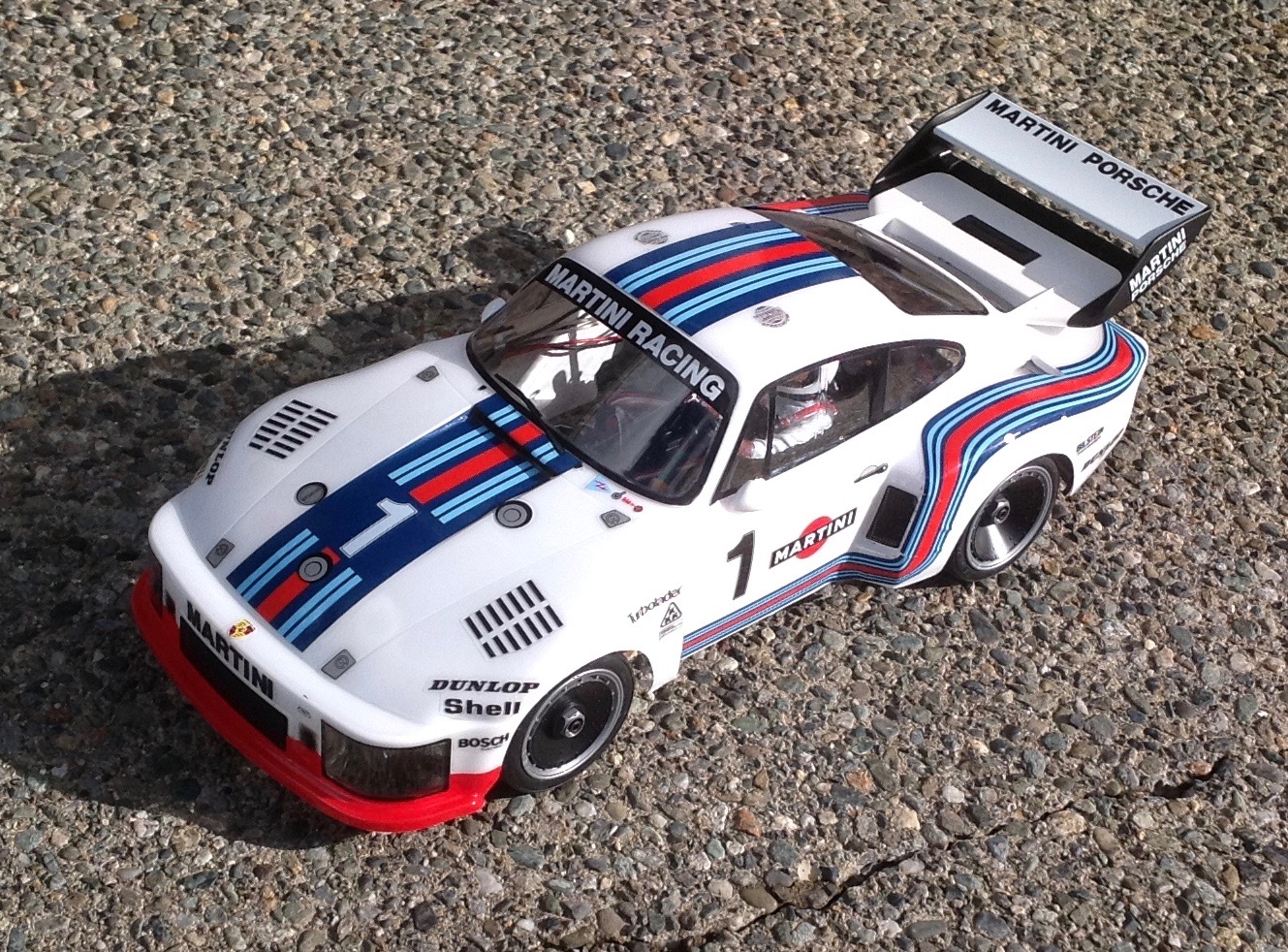

This model is stunningly beautiful.  If you have the means, I highly recommend picking one up.

Update:  This model was destroyed in the 2022 fire.  It has not been replaced.

frame
Page 1: Assembly


Page 2: Final Photos

Description
Manufacturer
Model #
Porsche 935 "Martini" 1/12 Scale
Radio Control Car Kit (GT-01)
Tamiya
57104
28T 370 Brushed Motor
LaTrax7575X
16 Tooth 0.5 Mod Hardened Steel
Pinion
Robinson Racing 1816
Quicrun Waterproof 25A Brushed
Electronic Speed Control
Hobbywing
1625
2 Channel 2.4 GHz DSMR Receiver
Spektrum
SR215
Micro High Torque Steering Servo
Futaba
S3115
LED Light Kit
Yeah Racing
LK-0001WT
PS-1 White Paint
Tamiya
86001
PS-2 Red Paint
Tamiya
86002
