Toyota FJ40 Project

Page 2:  Upgrades!

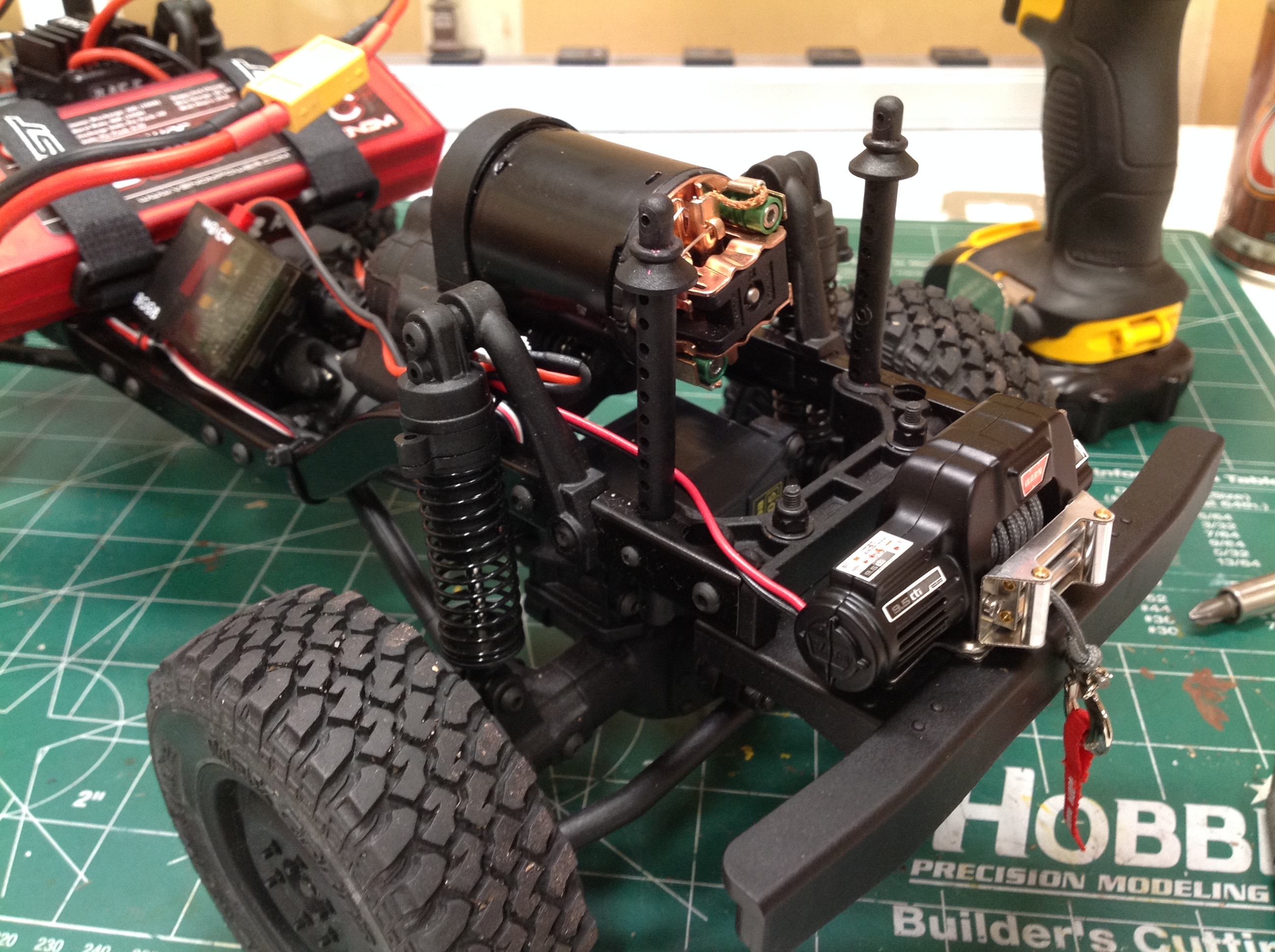

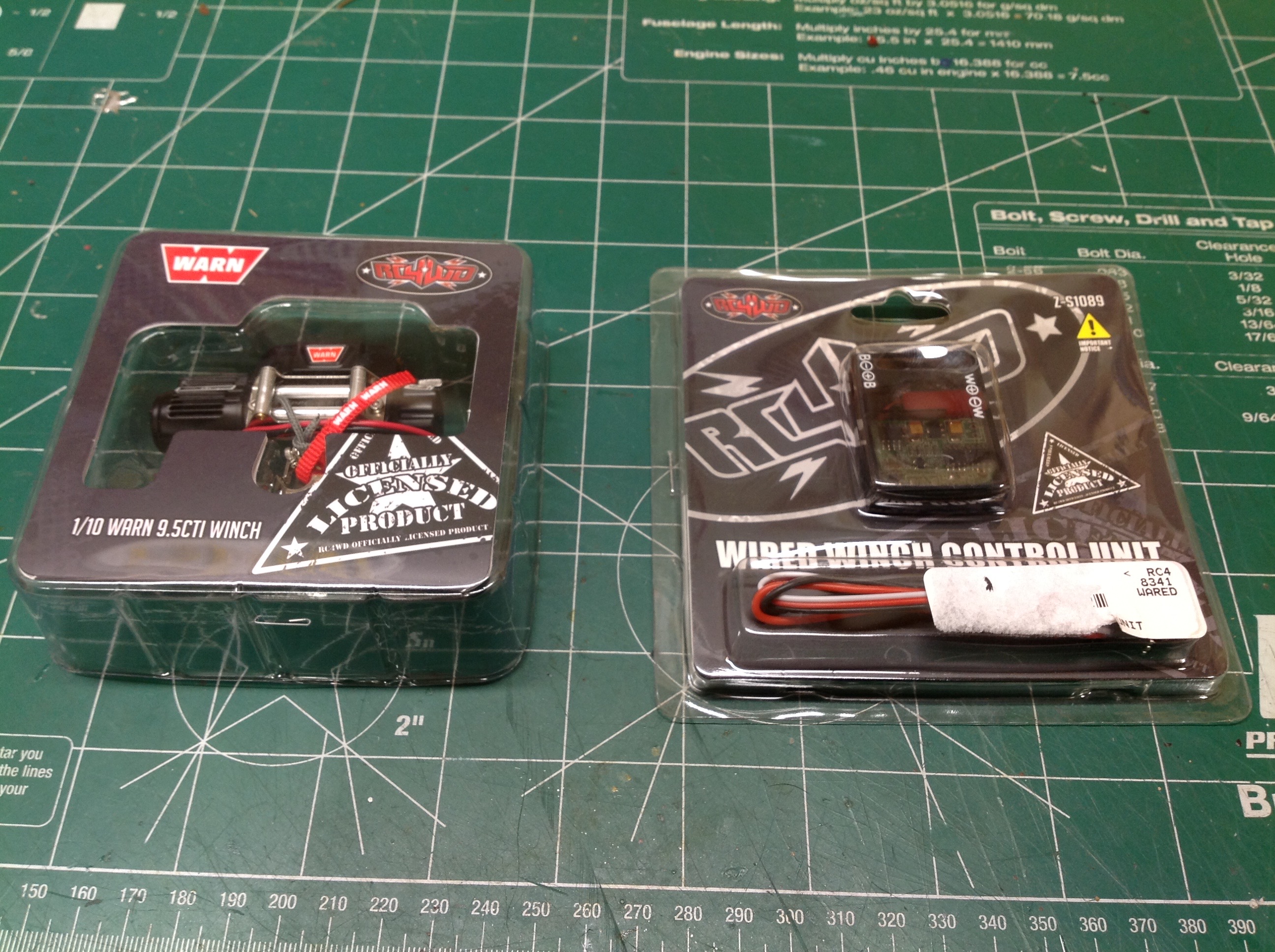

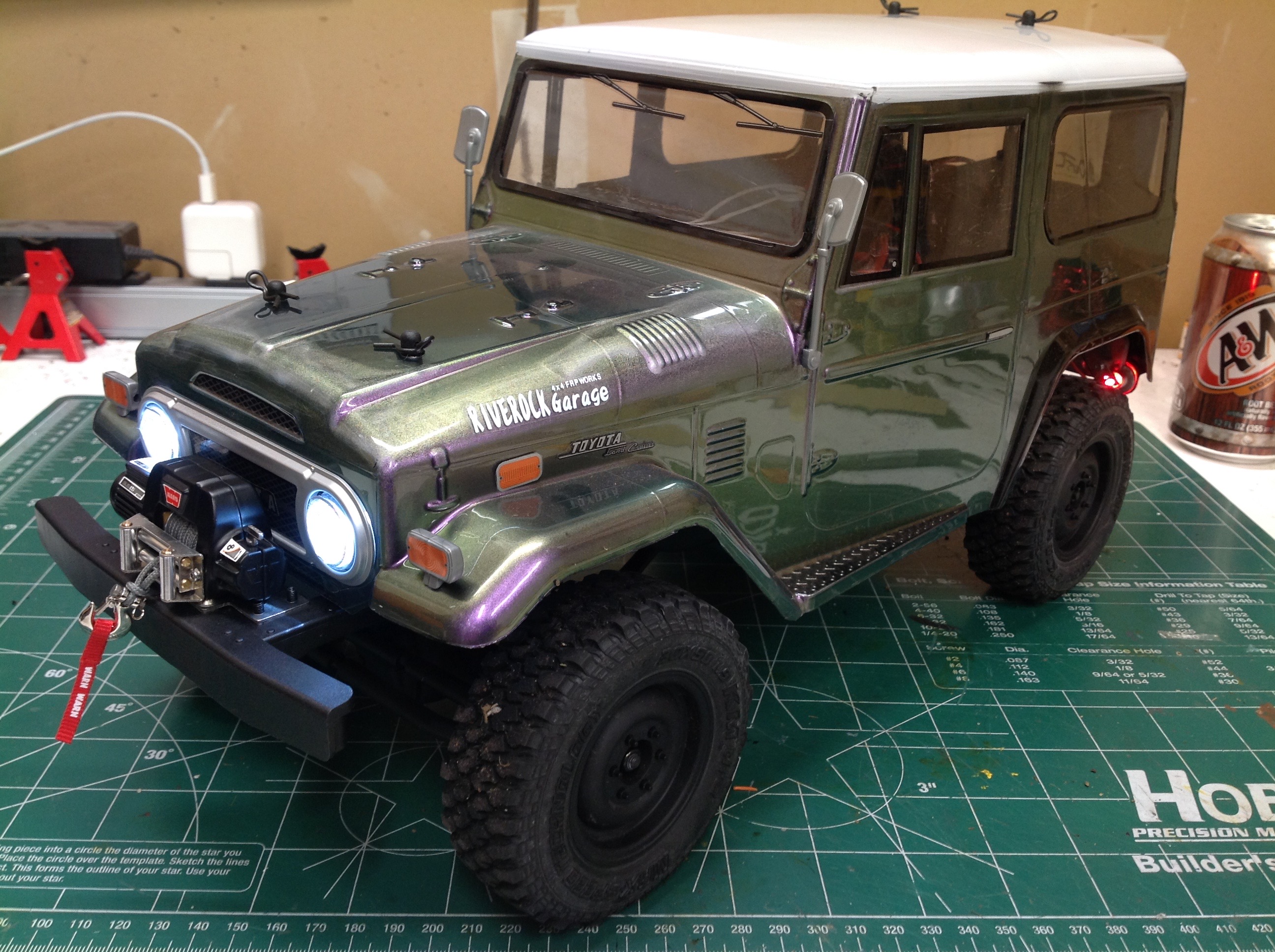

This is a very capable truck out of the box so there is very little that needs to be done.  There were some irresistible empty mounting holes in the front bumper for a winch, so I had no choice but to install one.  I chose RC4WD's smallest mini Warn which bolted right up.

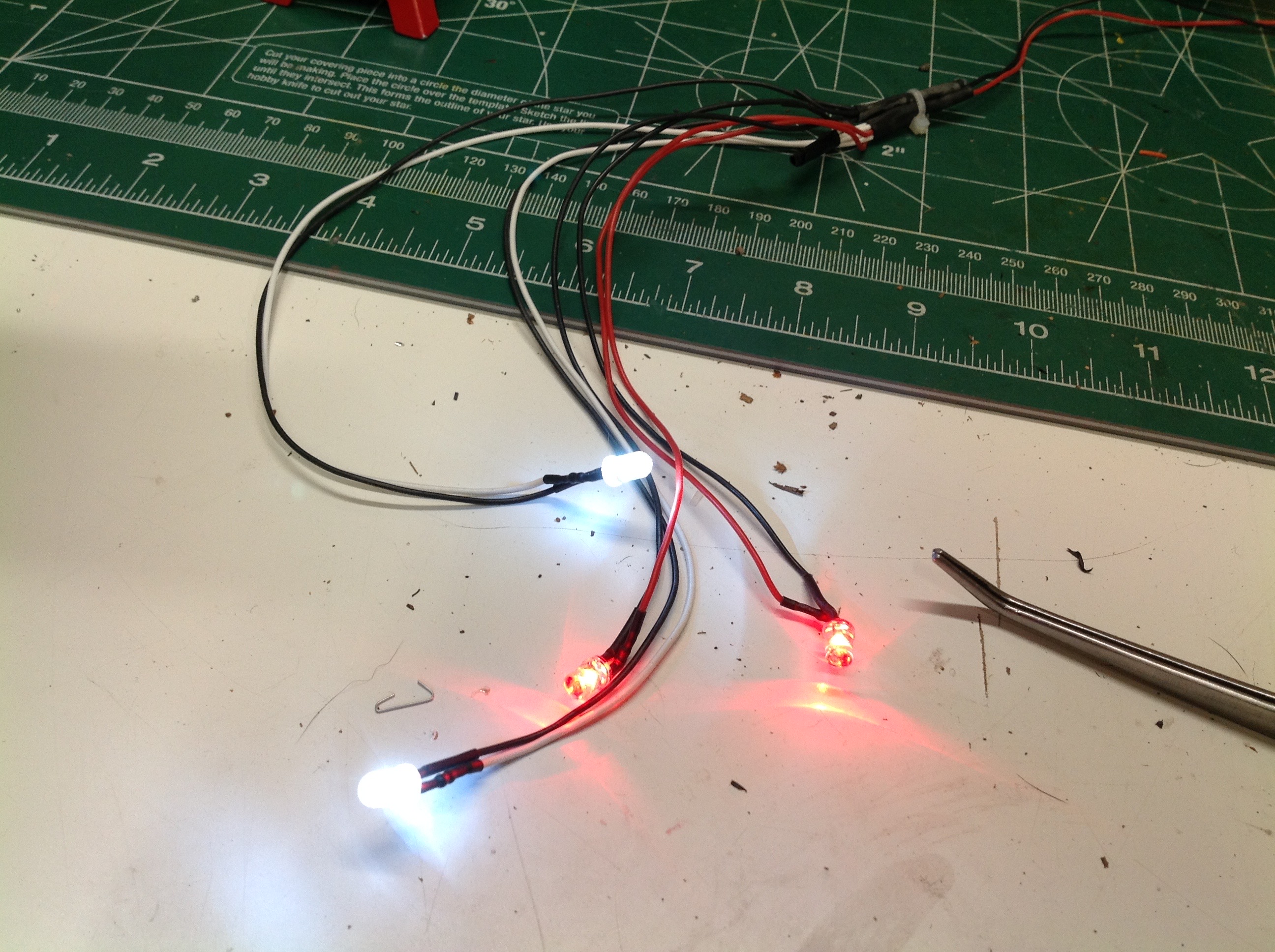

Every scale truck needs some lights, but the Tamiya TLU-01 system is way too complex for the needs of this model.  I was able to find a small Yeah Racing system for only $7 which works fine.  The lighting set came with 4 white lights so I just clipped two of them off.  The body already comes with light buckets in both the front and rear.

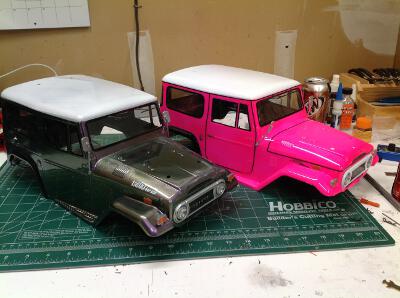

I built two bodies for this truck (more info on the next page).  At the moment I've decided not to use the pink one, but I did go all out on detailing the panel lines.


Phase 2:

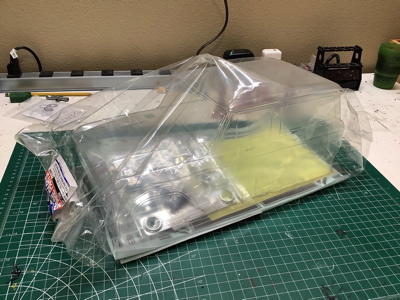

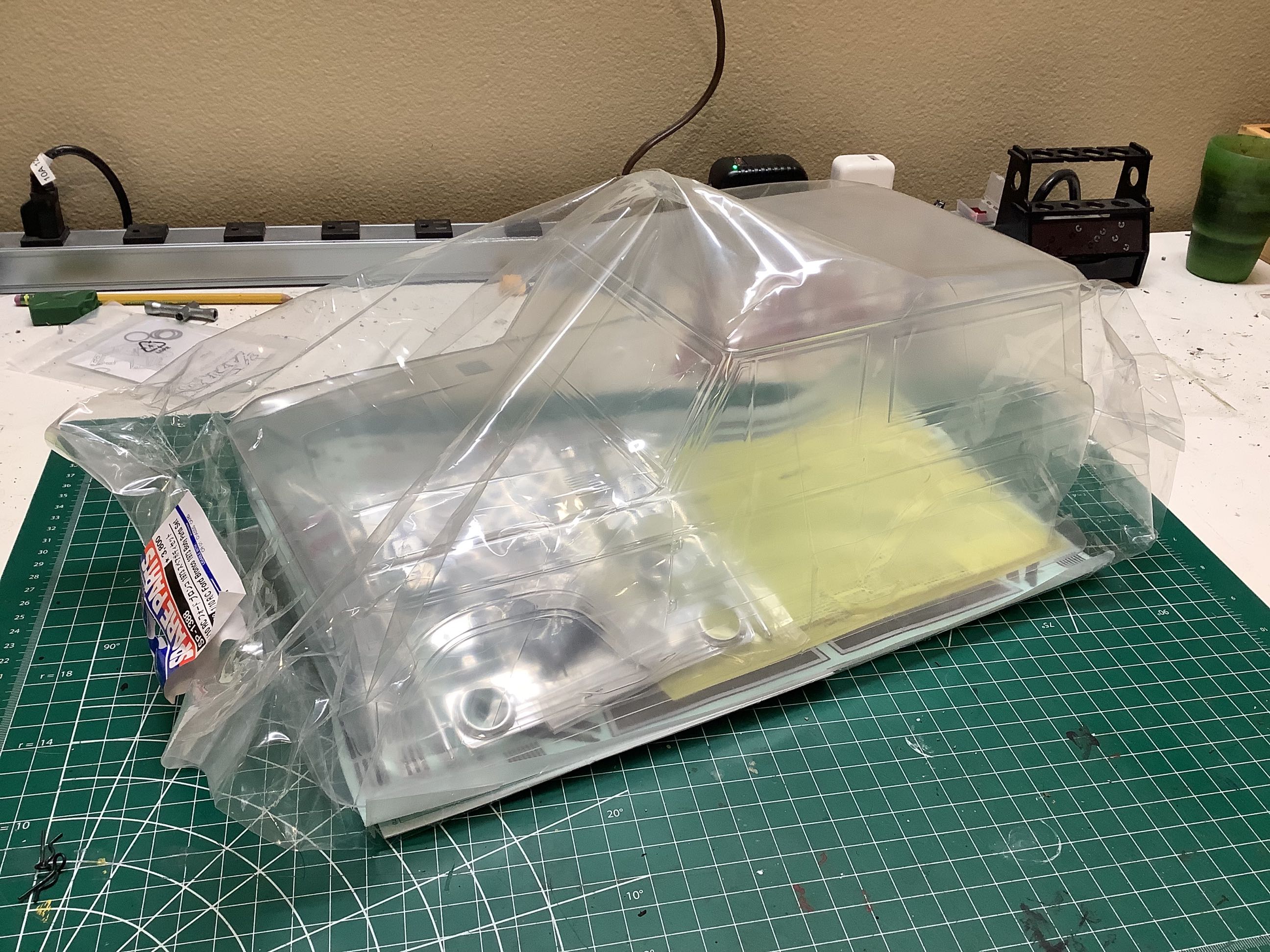

Several years later I came back and changed the body to a classic Bronco while also updating the electronics.  Here is the bag containing the Tamiya Bronco body which was originally intended for the CR-01 chassis but also fits the CC-01 and, therefore, the CFW which uses the same bodies.  In fact, I could have bought this chassis with this body but I didn't.

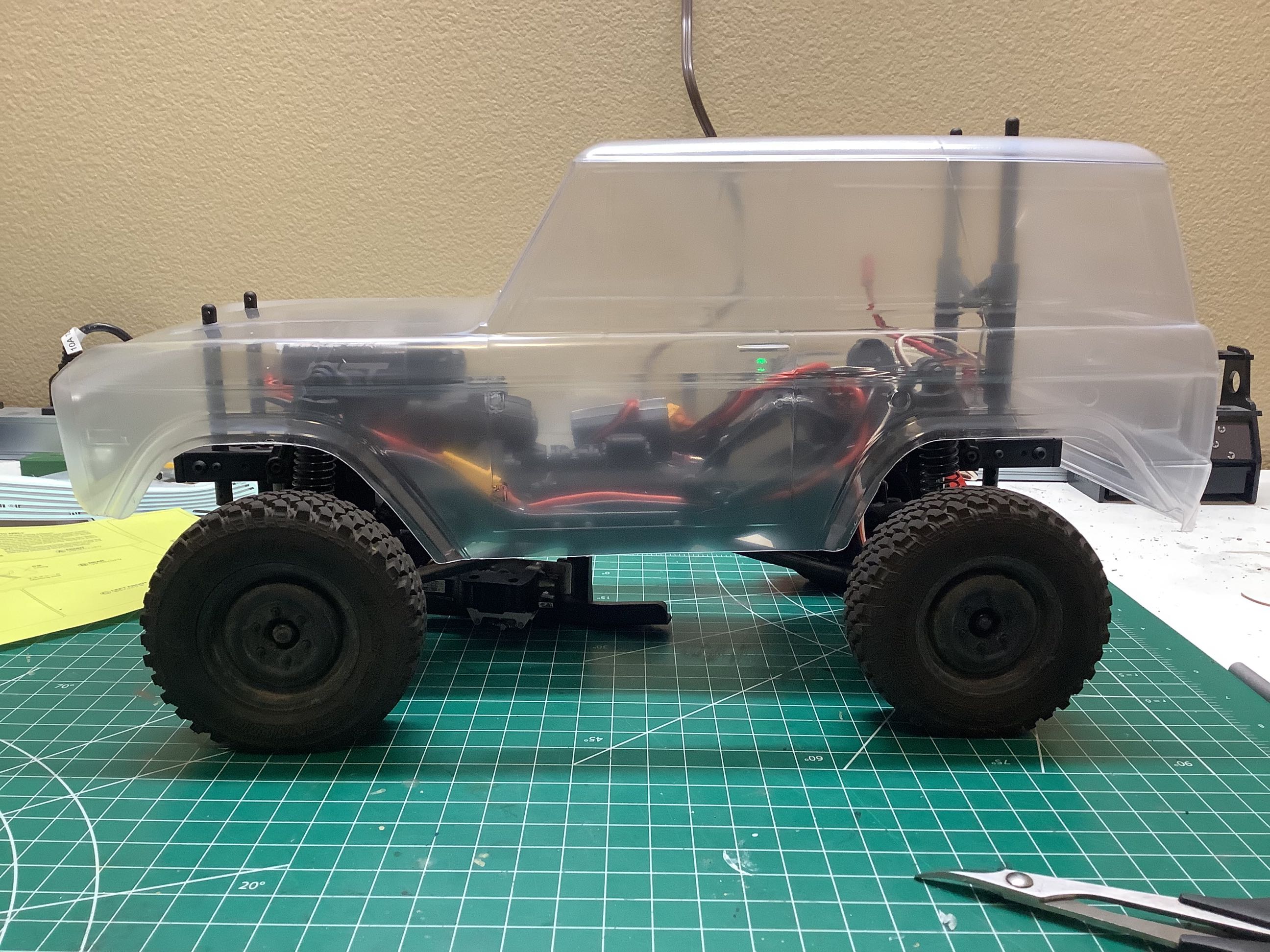

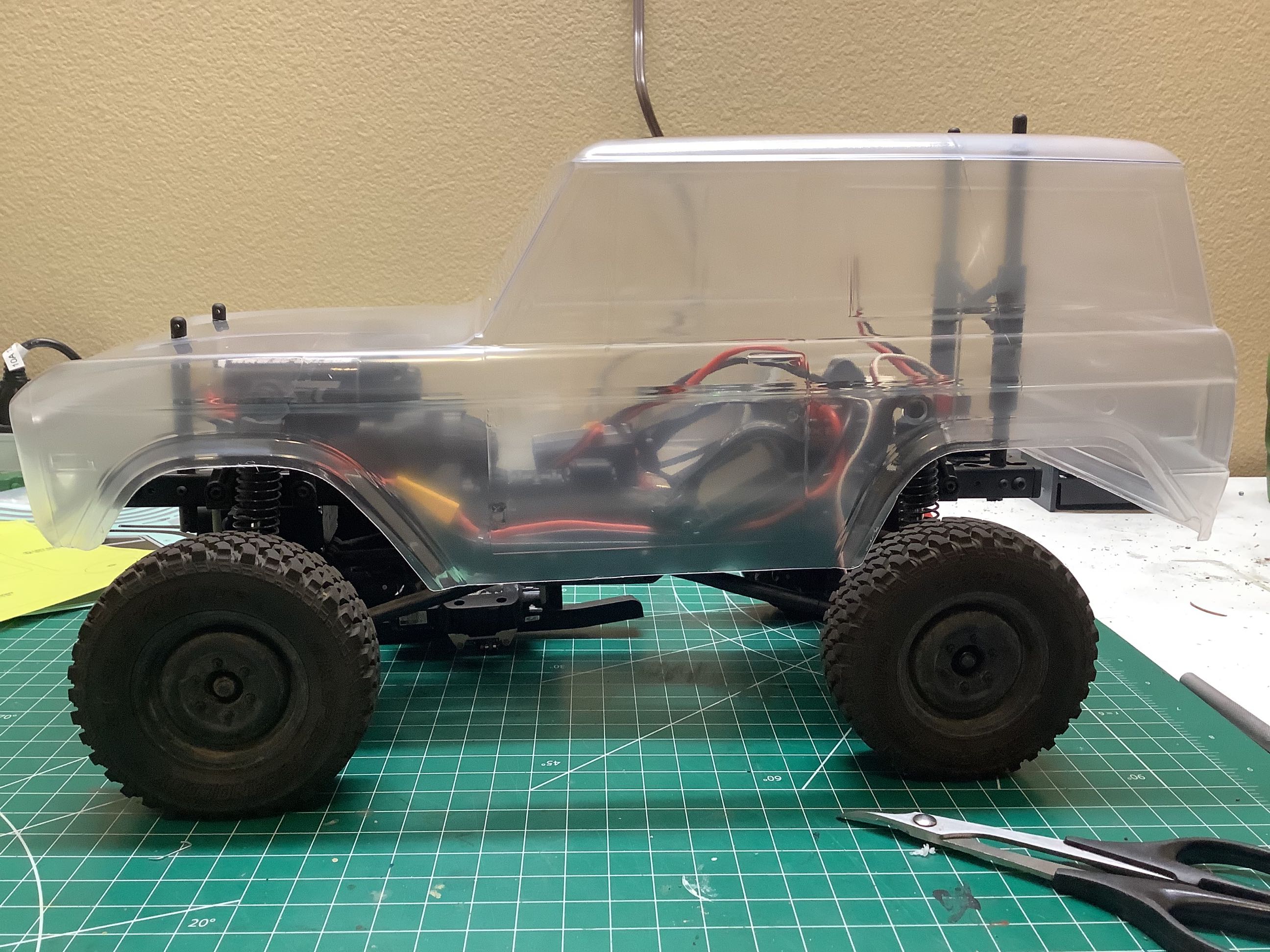

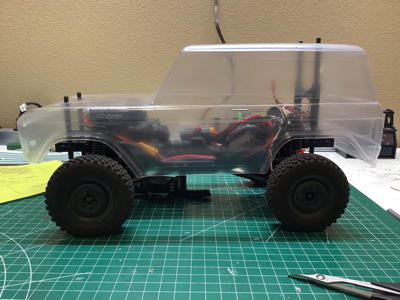

After trimming out the shell I checked the fit.  The FJ40 used a 252mm wheelbase but the Bronco uses 242mm so I made the changes from MST's instructions as shown on the left.  This involved removing 10mm of spacers from the rear links.  The body posts lined up perfectly, but as you can see on the left rest didn't line up at all.  The front wheels are too far forward and the wheelbase is too short.  I then realized that you are also supposed to move the body posts to different holes which I did as shown on the right.  This is better, but I still don't like the position of the rear wheels.

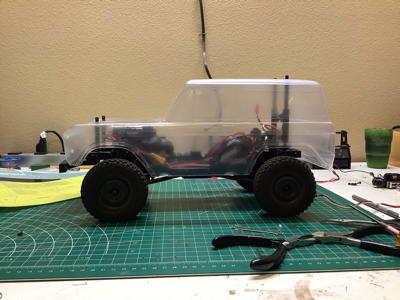

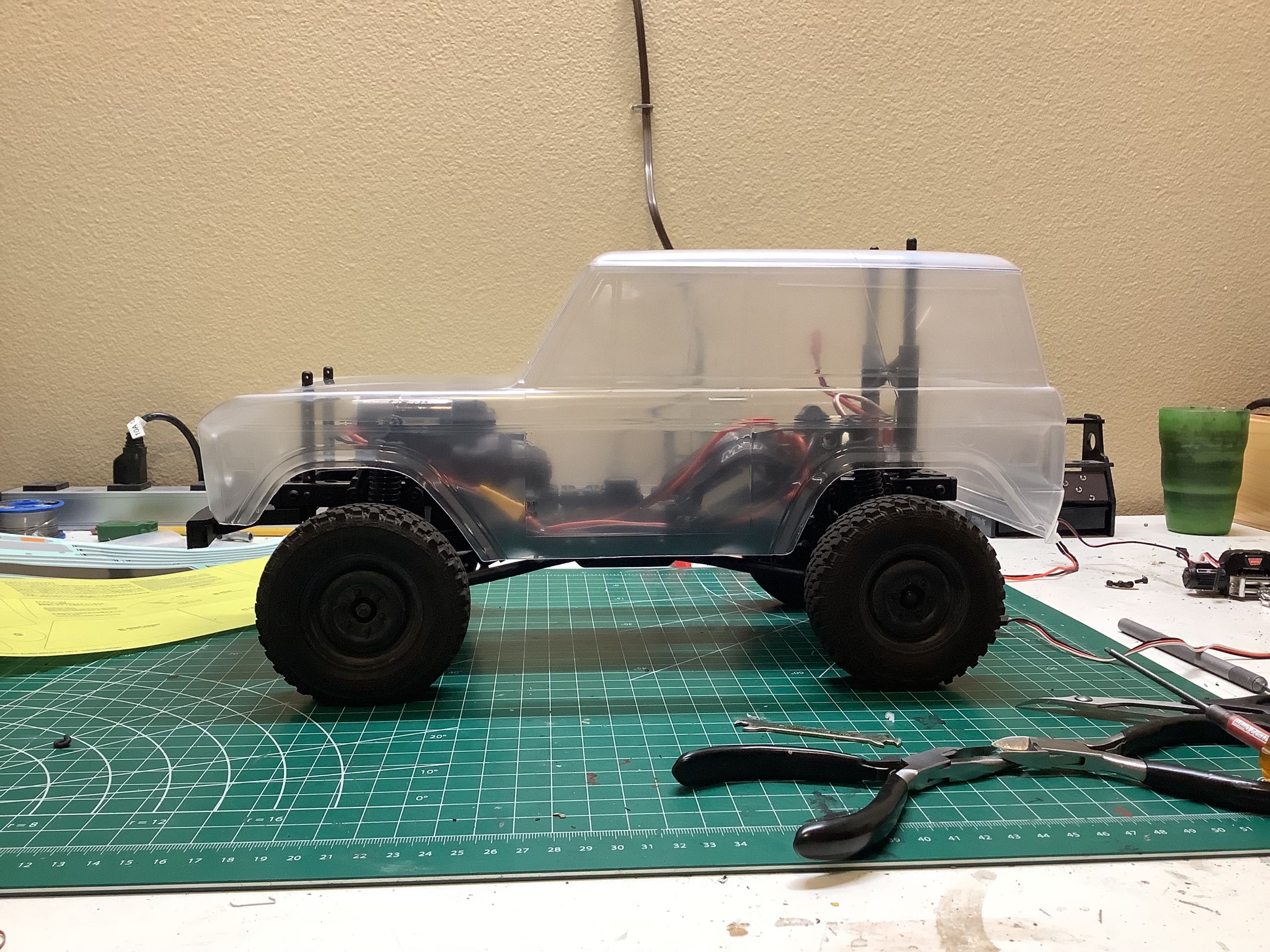

I decided to play around with the links so I put 5mm worth of spacers back into the rear links resulting in an interim 247mm wheelbase.  This looks much better in my opinion.

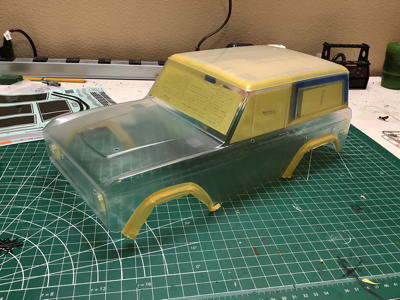

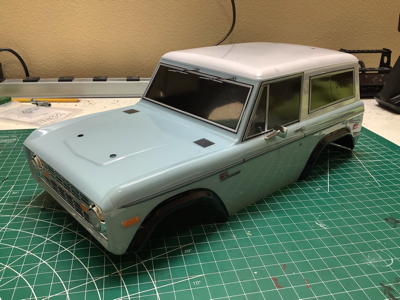

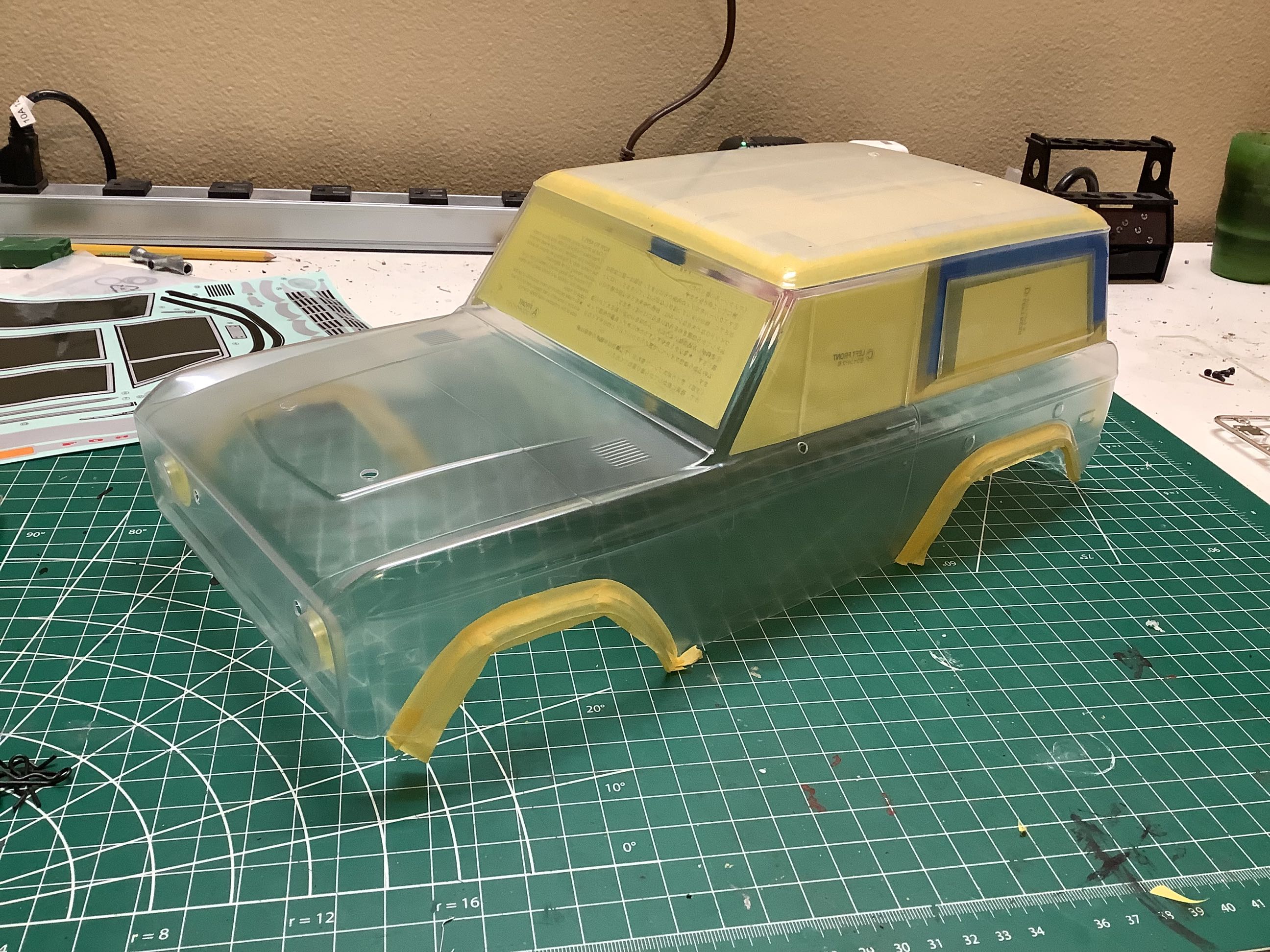

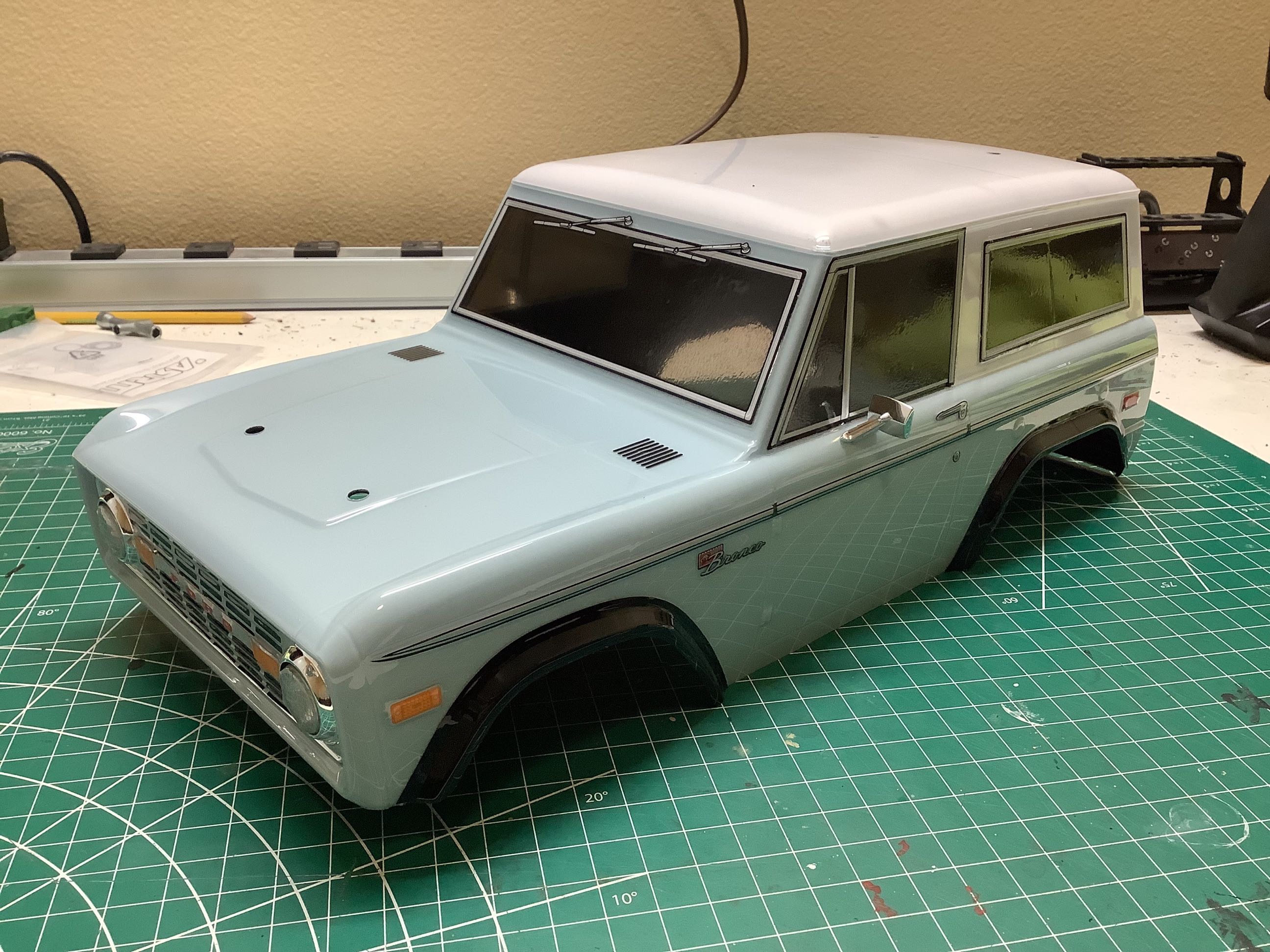

Time to paint the body.  I chose Corsa Grey which is actually a light blue that I think is perfect for that early 70's look.  I did the top in plain white.  I didn't need to smoke the windows because the stickers cover them with a tint color already.  I also masked and painted the wheel arches in black.

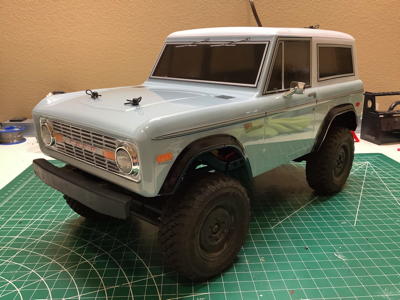

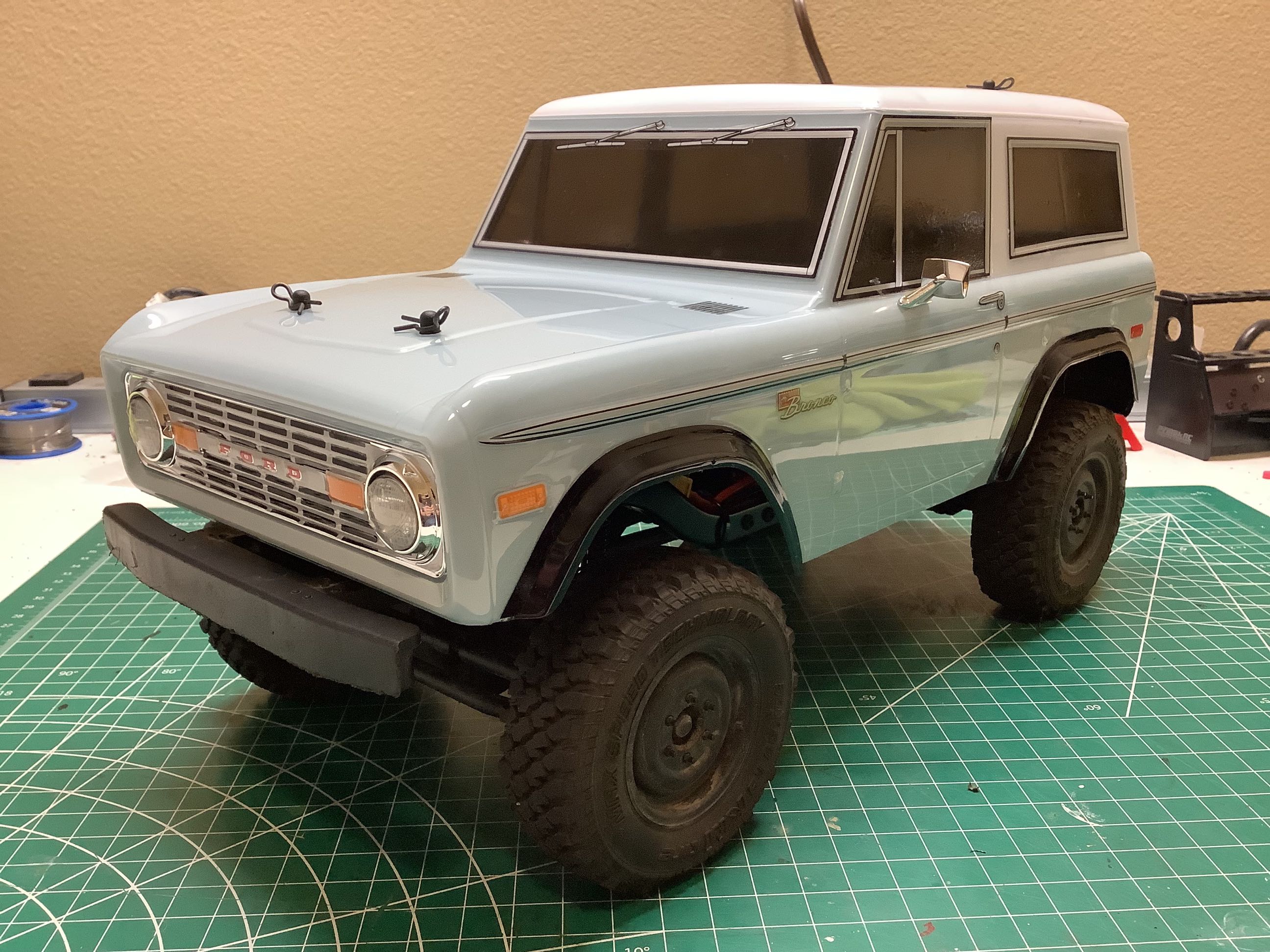

Here is the completed body on the chassis.  The winch had to be removed, but I was able to move over the lighting system from the FJ body.
