Ford Aeromax Project
Page 2: Upgrades!
This model is box stock except for the addition of the Multi Function
Control Unit. I used the older MFC-01 because of the more
"American" engine sound. This unit provides lights, sounds,
vibration, and serves as a speed controller. This particular model
doesn't use every single light option but does include headlights,
brake lights, turn signals, fog lights, and marker lights. The

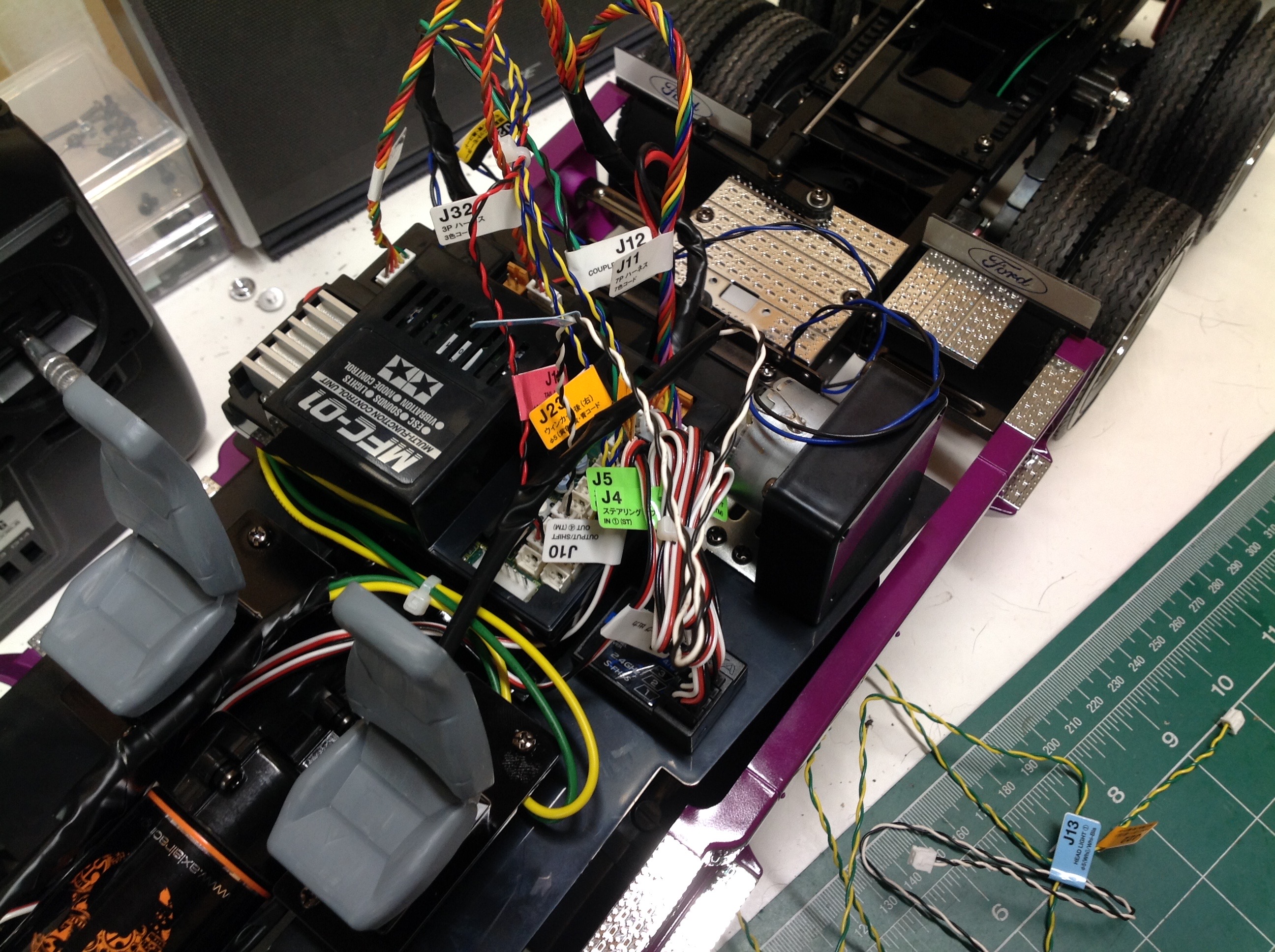

left hand images shows how I was able to install all the electronics in
the large sleeper behind the cab and still leave the interior in
place. This is the first of the Tamiya tractor trucks I've built
that allow both the MFC and the interior at the same time. You can
see the main control unit, the vibration motor at the right, and the
receiver at the lower right. The control panel is installed in one

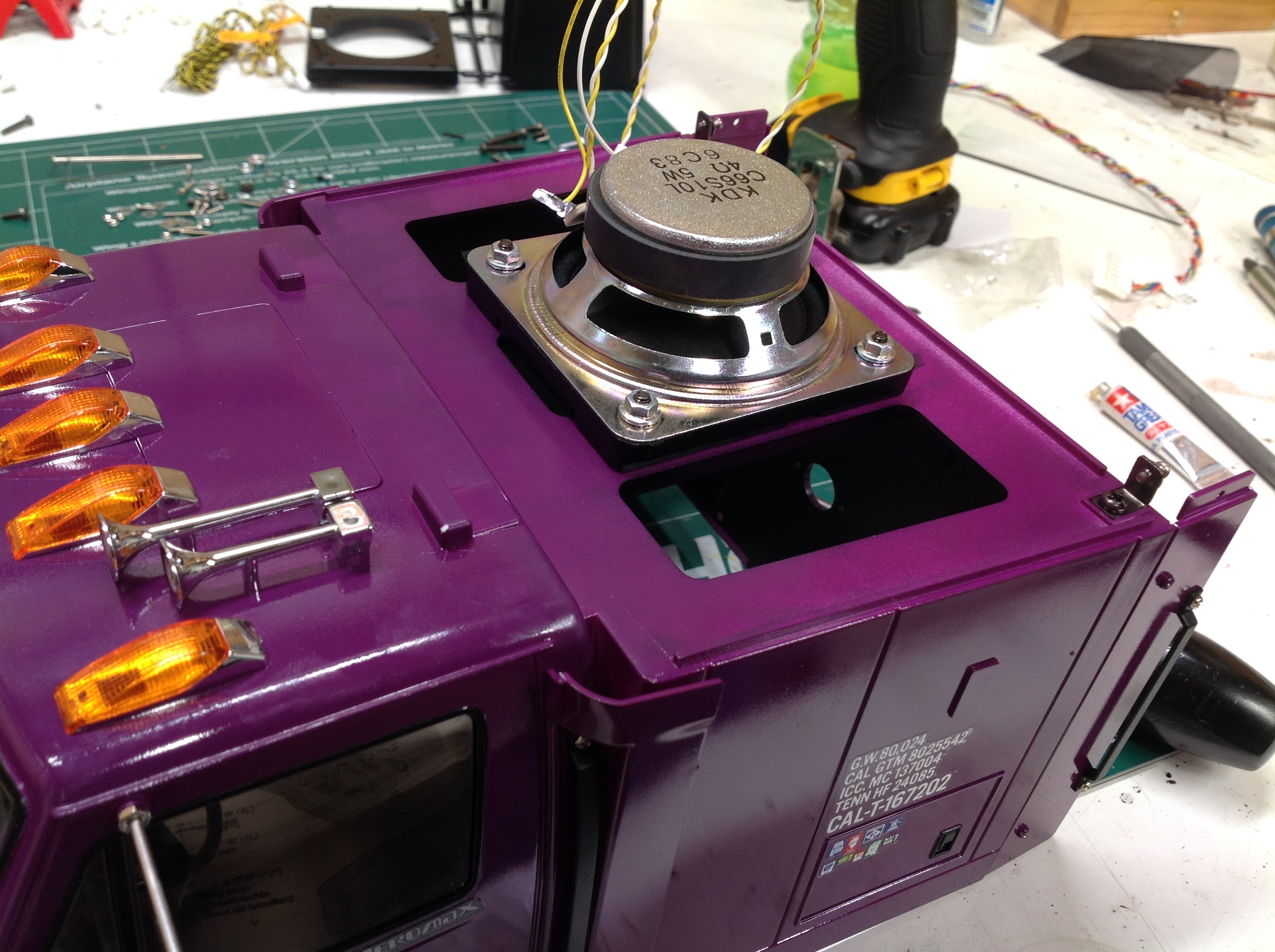

of the fuel tanks where it is hidden. The
right hand image shows how the speaker can be installed in the roof
under the wind deflector. There are no molded holes for the
speaker so you need to line it up and drill them yourself.

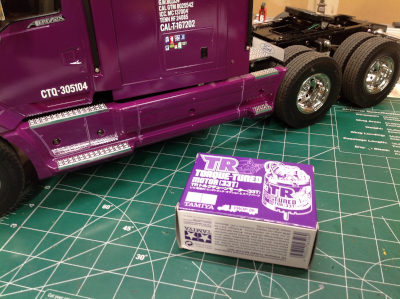

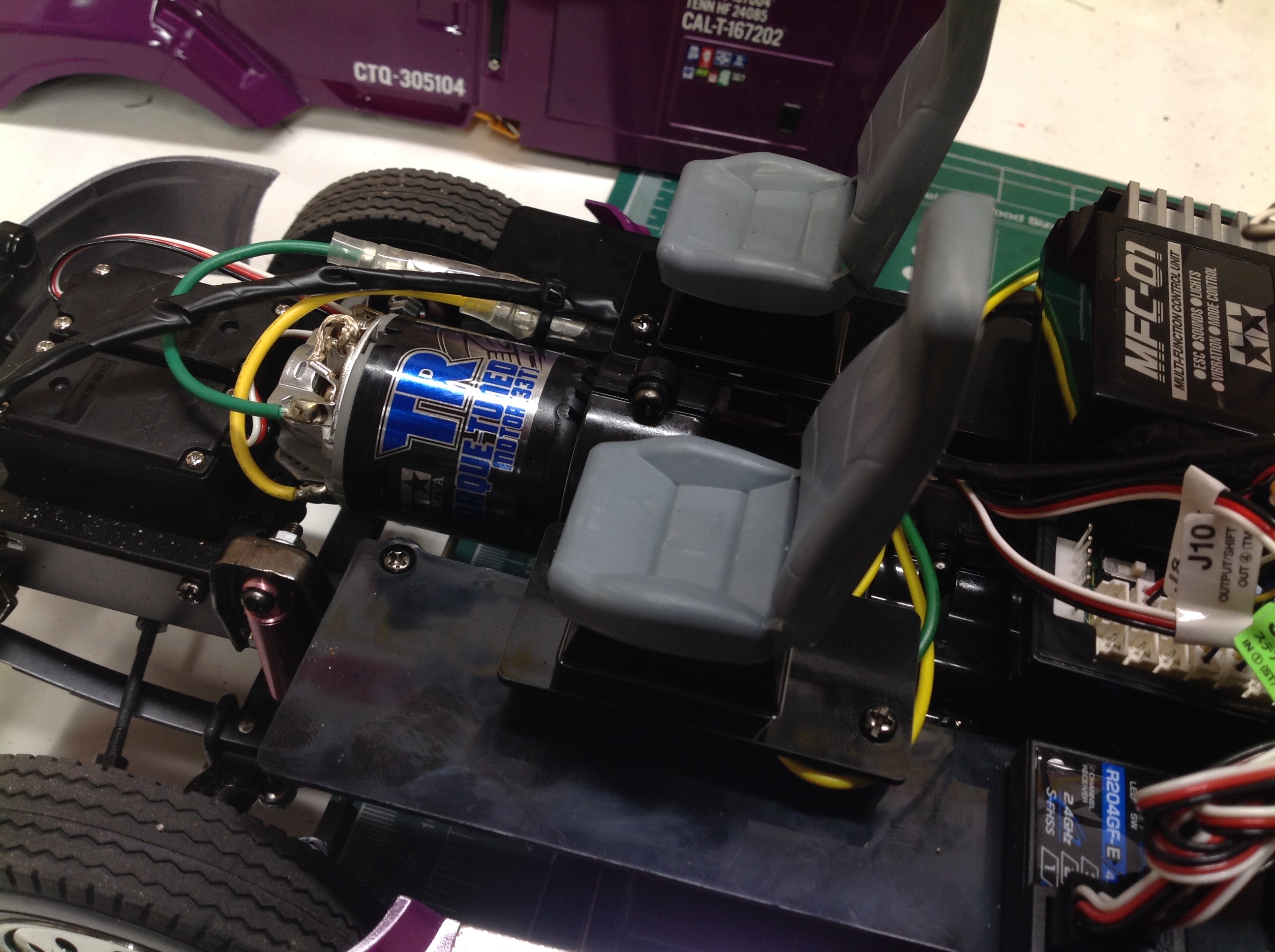

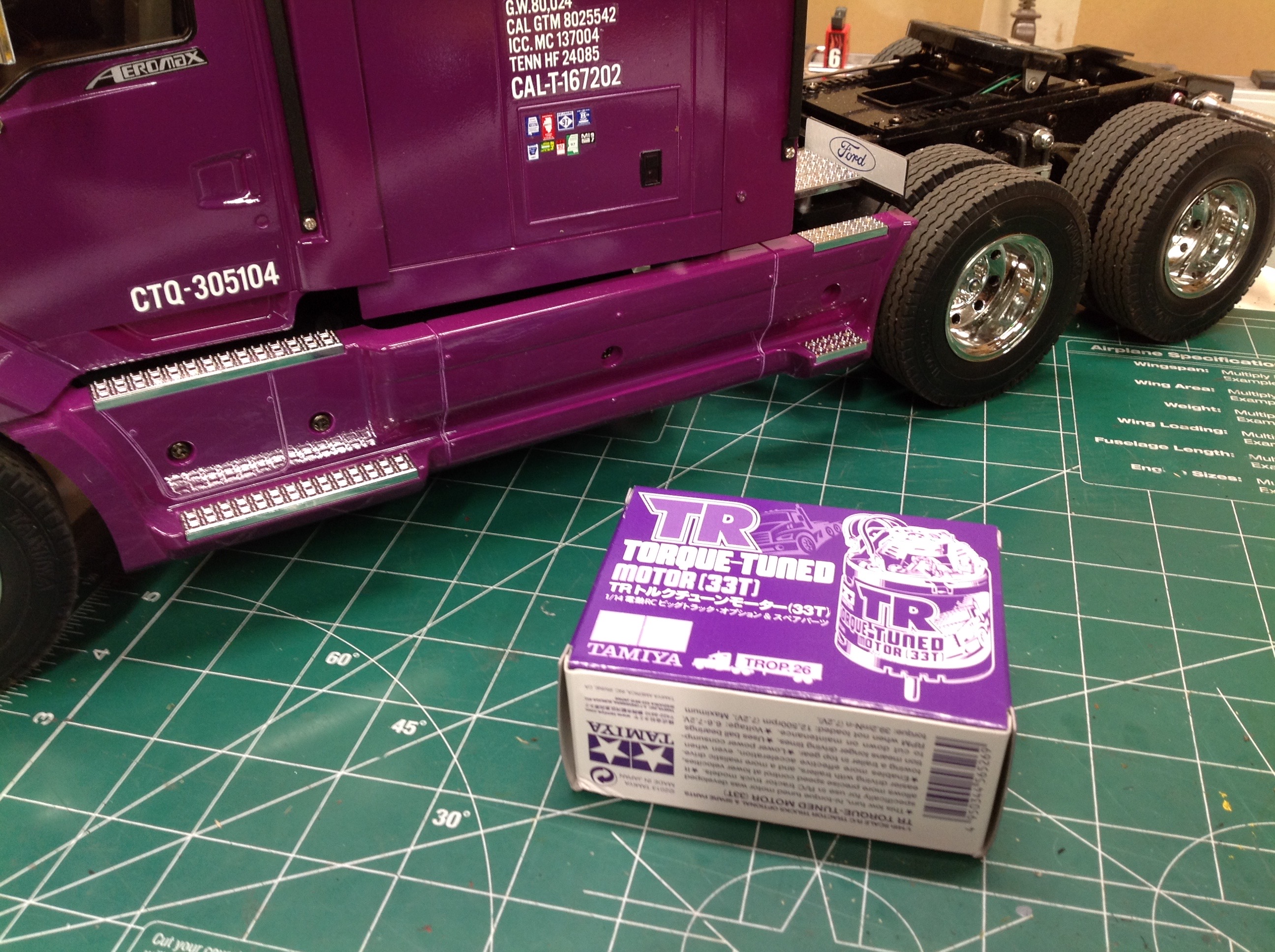

For whatever reason, this model seemed under powered with the Axial 55T
motor that I use in most of my tractor trucks. I had never tried
the Tamiya TR Tuned motor which is made specifically for this purpose so
I ordered one from Japan. I have to admit, it is perfect
here. I'll be using these in all of my tractor trucks from now on.
