Original Year
1990
# of pieces
220
Categories
Cars & Trucks: Buggies
Dimensions
26(L)x15(W)x15(H)
Features
Steering, rear suspension,
2 cylinder engine
Other Views

8840 Rally Shock 'n' Roll Racer

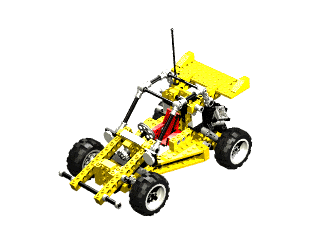

iso revolve
Click the image to download the LDraw file of this model.
Model by Benjamin Wendl


This is one of 3 1990 models centered around a "Rally" theme.  This model is a dune buggy with working swing arm rear suspension.  A V-2 engine is located between the rear wheels made from the new engine parts introduced this year.  The front wheels have rack and pinion steering.  The Technic figure also made a reappearance here after being absent for a year.  Toothed elements were used to make a roll bar.

Each of the Rally vehicles had a special numbered flag which matched the third digit of the set number, in this case "4".  This is the first set to include an engine made of the new engine parts, and one of only a few models to date with suspension other than the big super cars.  In my opinion, this is one of the better looking small buggies.

Features

Steering

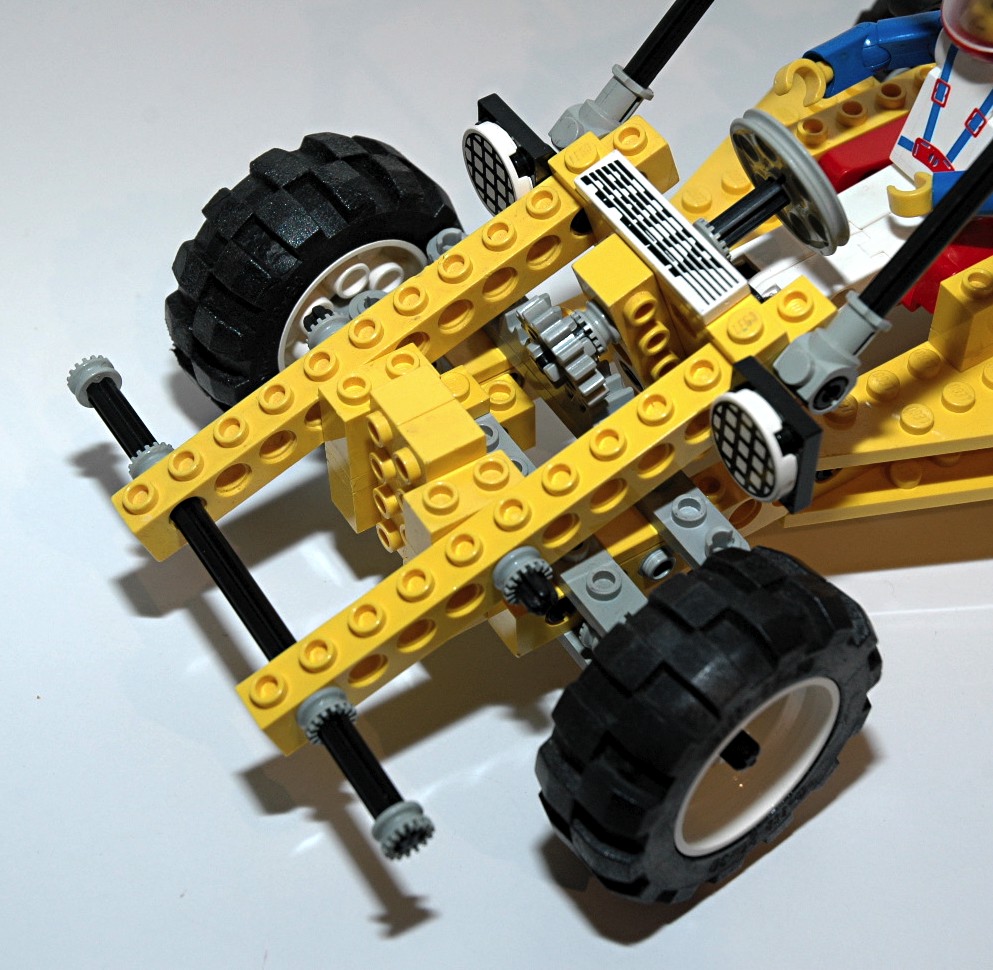

The front wheels can be steered using a wheel at the driver's position driving a 16 tooth spur gear.  This spur gear mates with a rack at an angle and drives the steering arm back and forth.

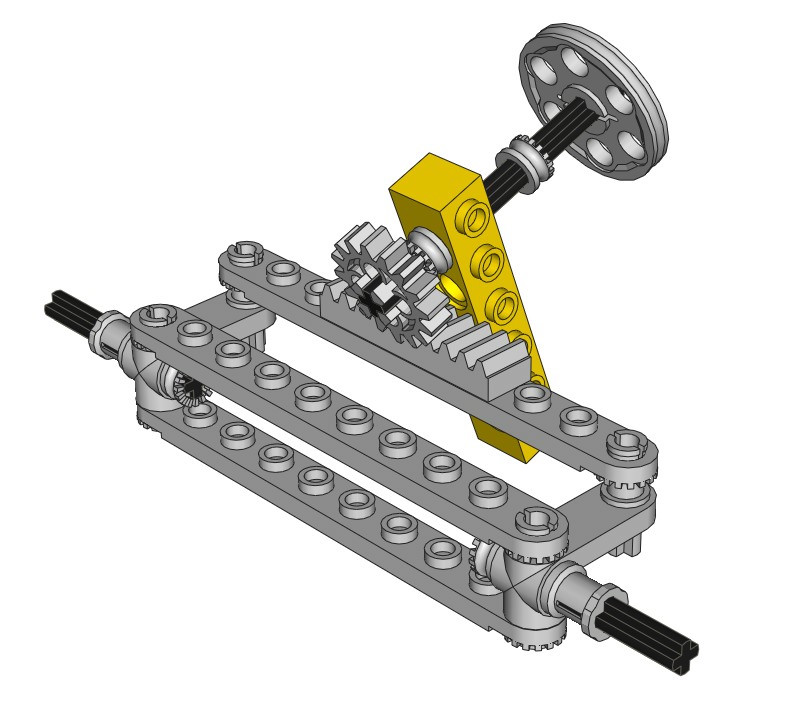

The steering mechanism itself uses control arms and toothed links as shown in the computer image.
steering    steering
Click for an animation of the steering in motion.
Engine

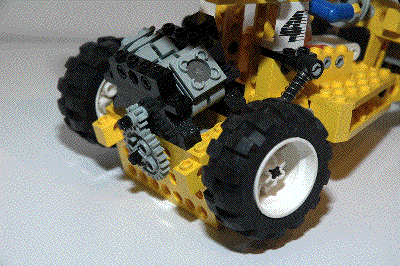

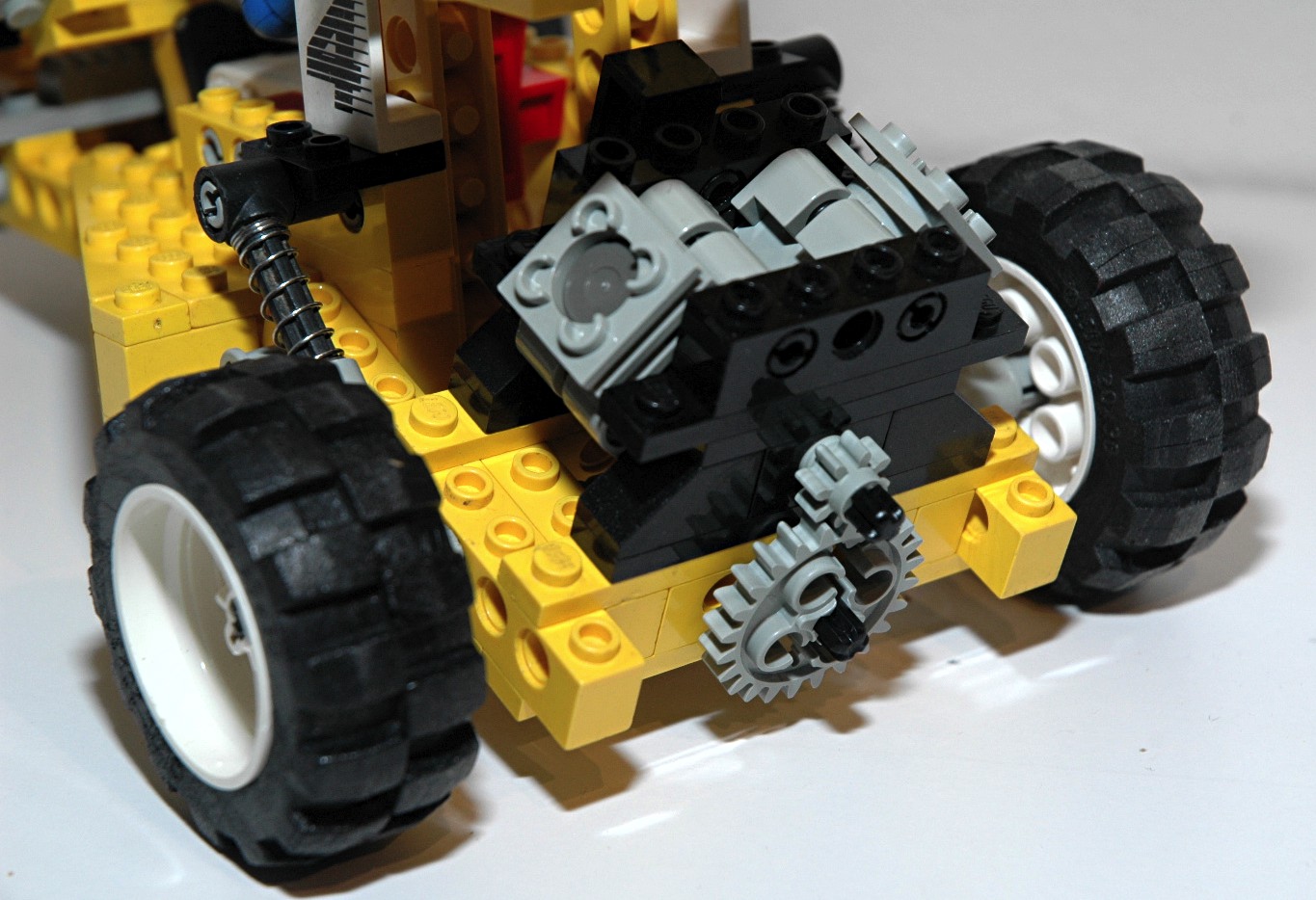

The V-2 engine is located between the rear wheels on the swing arm assembly.  Because of the location, the engine changes angle as the suspension goes up and down.  This can be seen in the animation.

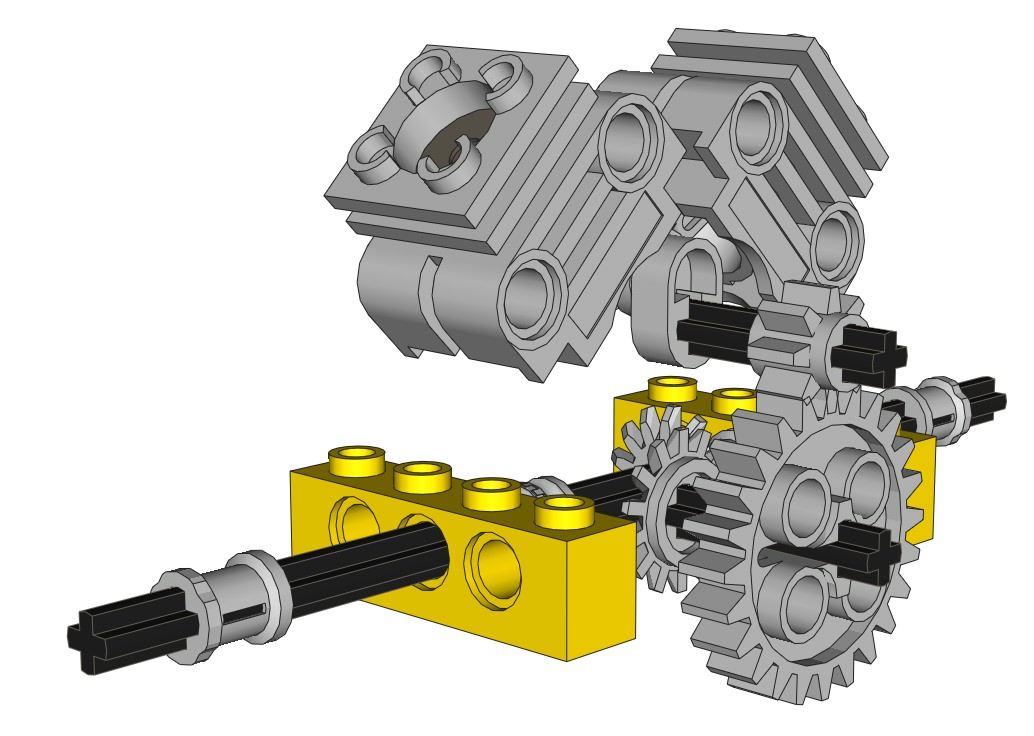

The engine is made from the new cylindrical engine elements and is driven by the right hand rear wheel.  The wheel axle connects to a pair of 14 tooth bevel gears.  The second stage is a set of 8 and 24 tooth spurs, resulting in a gear ratio of 3:1.  This makes the engine turn quite quickly when the model is pushed.  The final axle drives the crankshaft of the engine.  The crankshaft is offset 1/2 stud from center, giving the pistons a stroke of 1 stud.
engine    engine
Click for an animation of the engine in motion.
Suspension

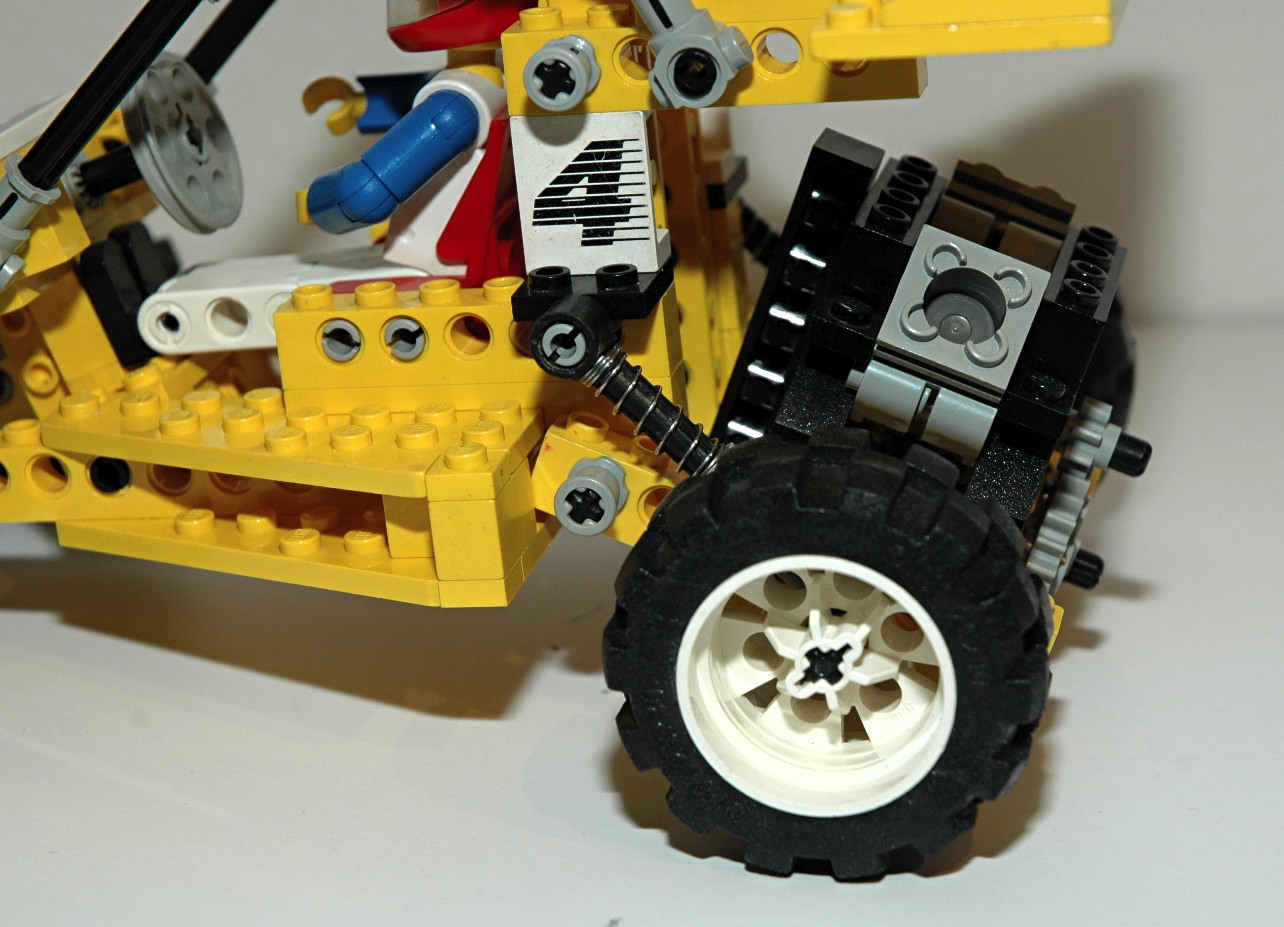

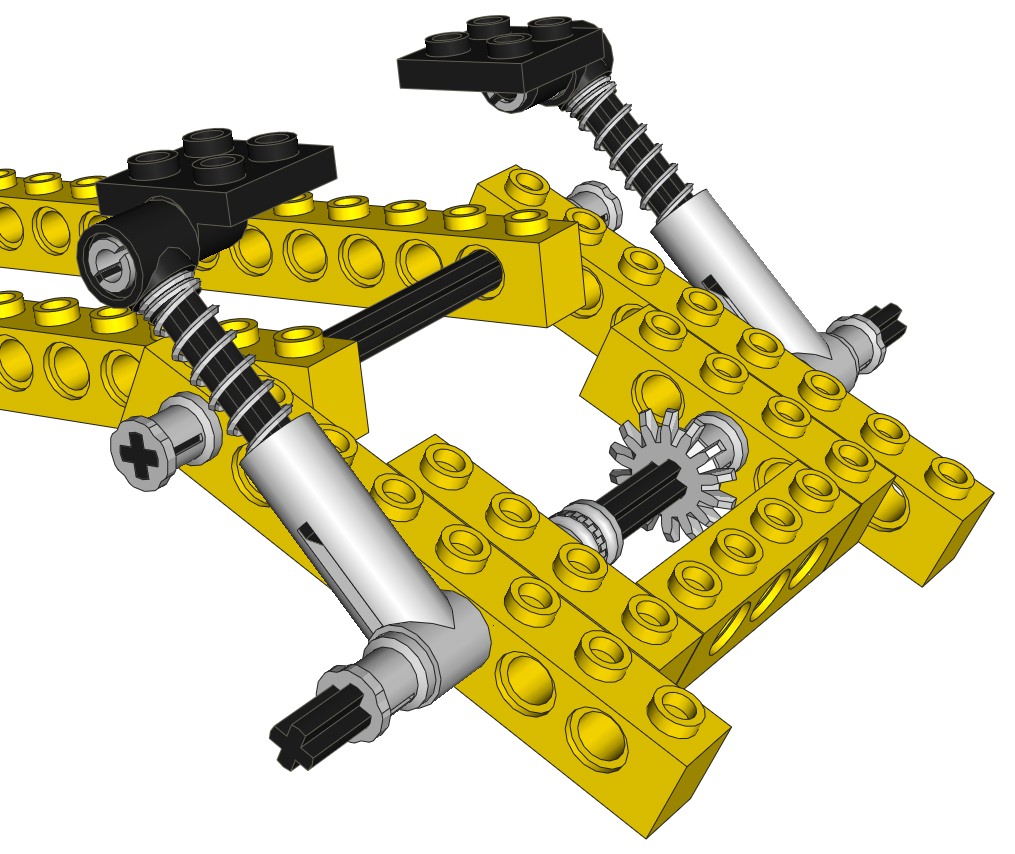

The rear suspension is a swing arm variety which has a live rear axle (not independent).  A pair of spring shock absorbers support the axle and engine.  The shocks are installed at an angle almost parallel to the swing arm giving them poor mechanical advantage.  This effectively increases the spring rate, making the suspension stiffer.
suspension    suspension

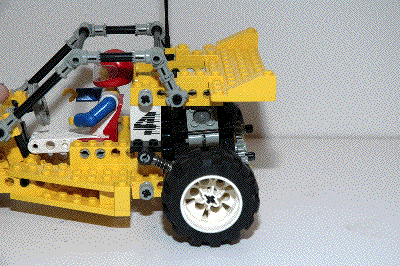

Click for an animation of the suspension in motion.
Wheels and Tires

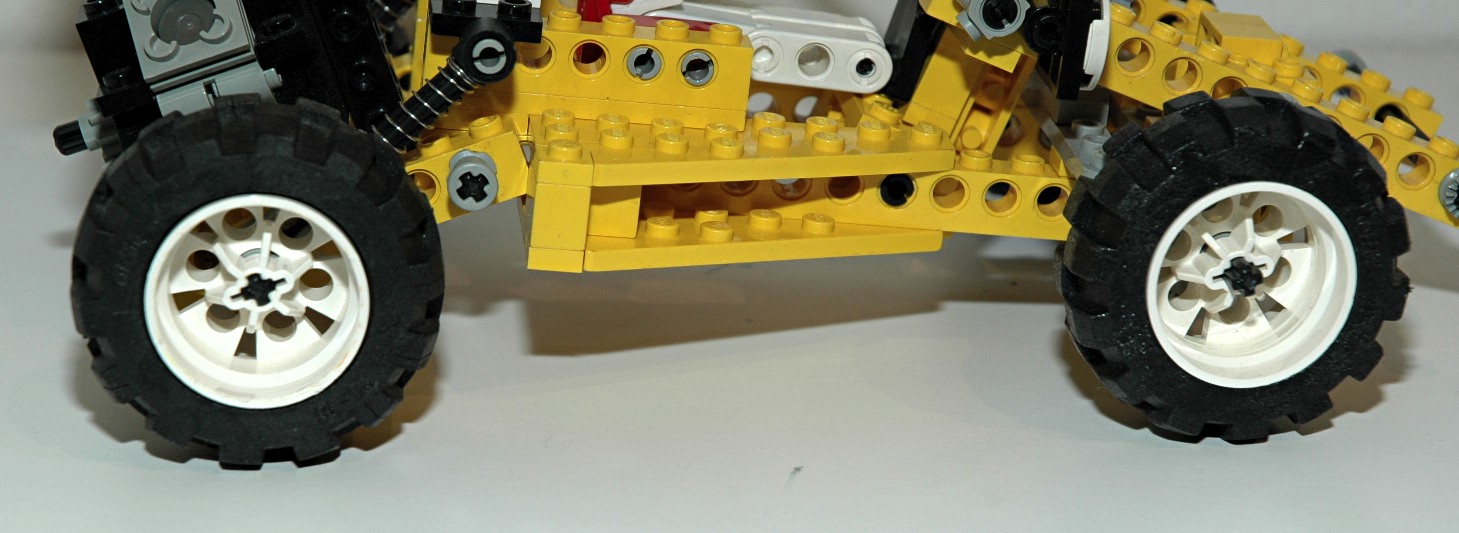

This set has 4 of the new 20x30 solid foam tires mounted to the older wheels.  This is the first set to use these tires.
wheels



Other Views

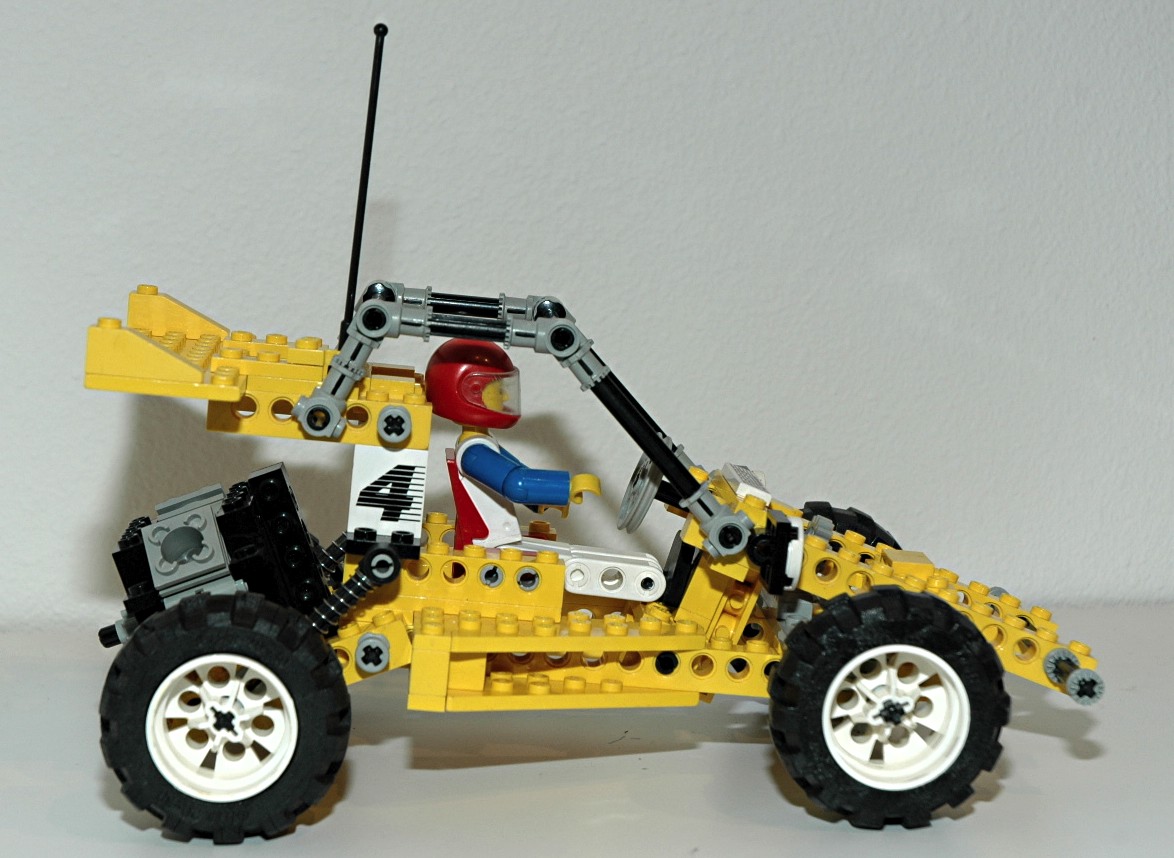

Side View
side view

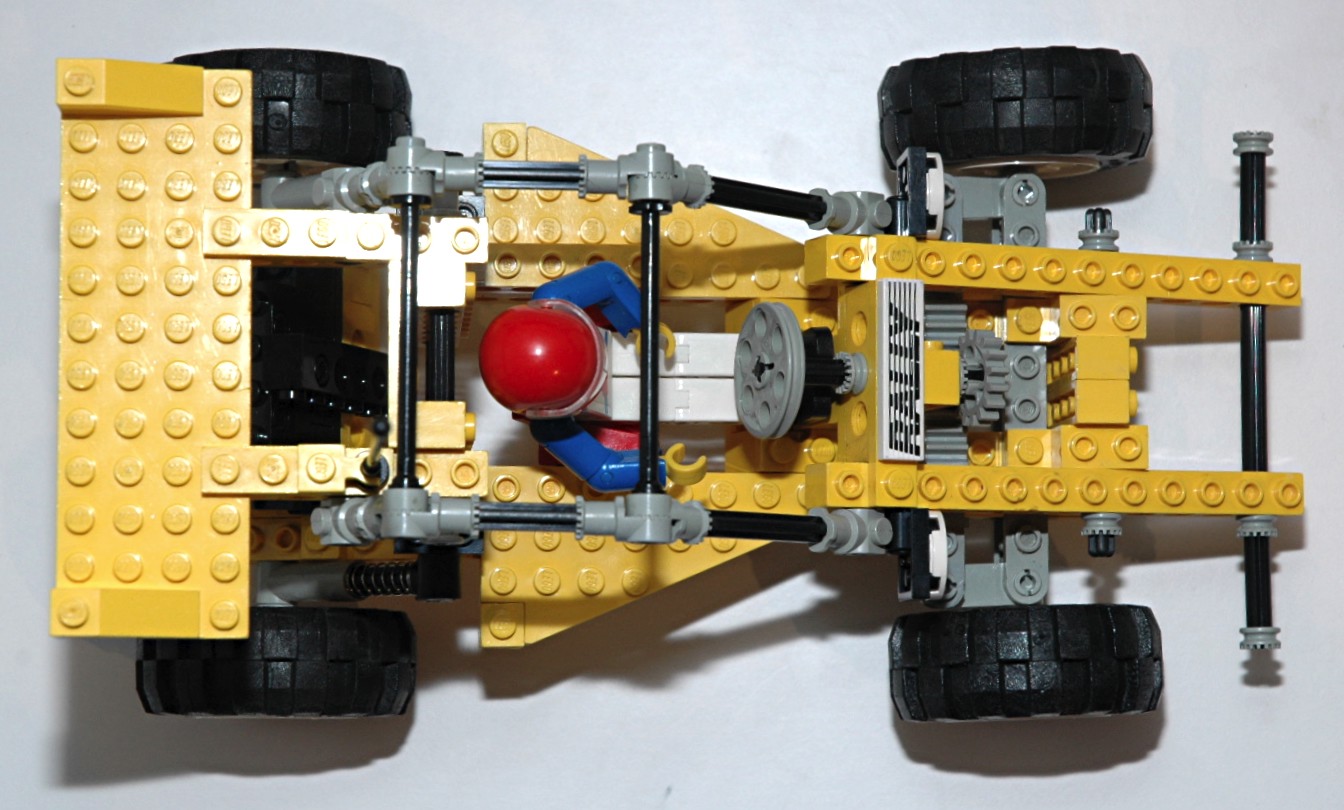

Top View
top view

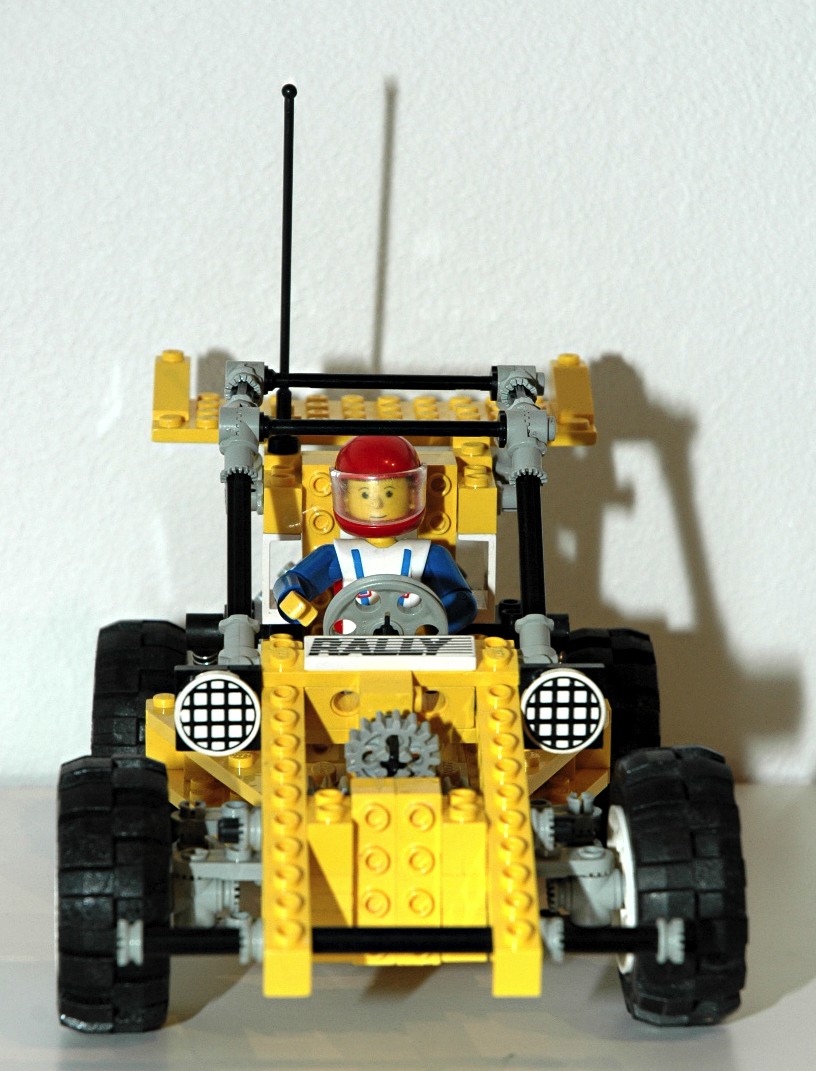

Front View
front view

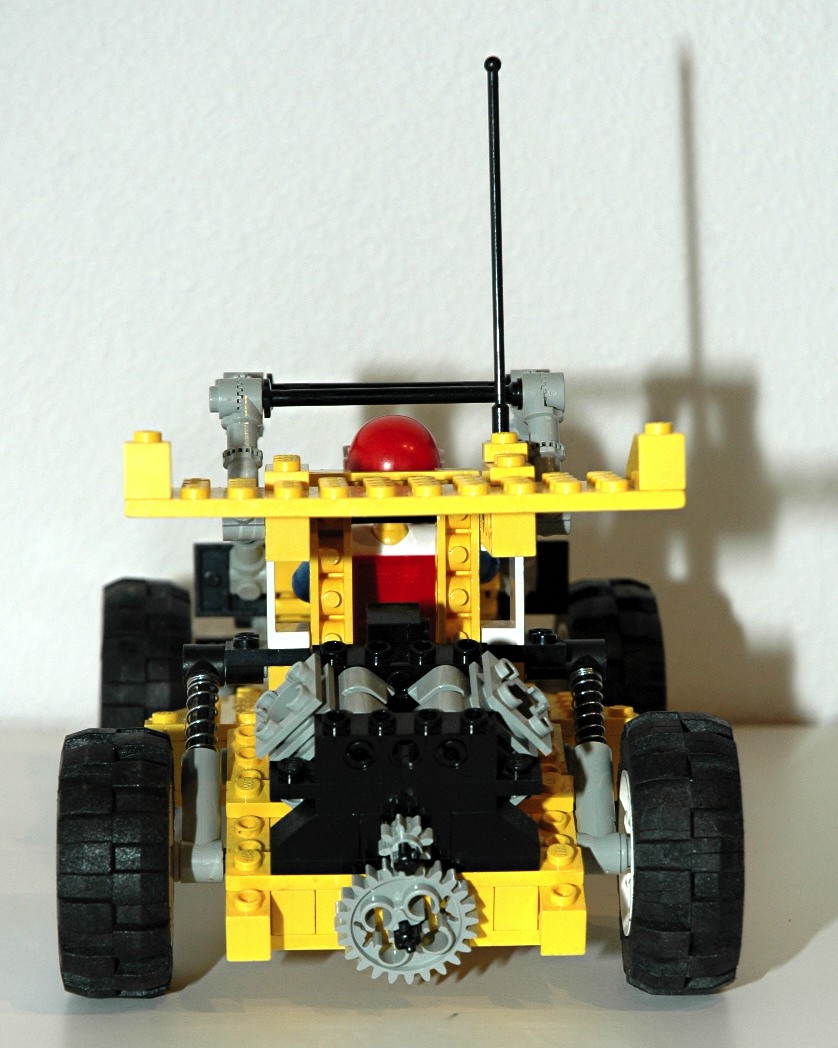

Back View
back view

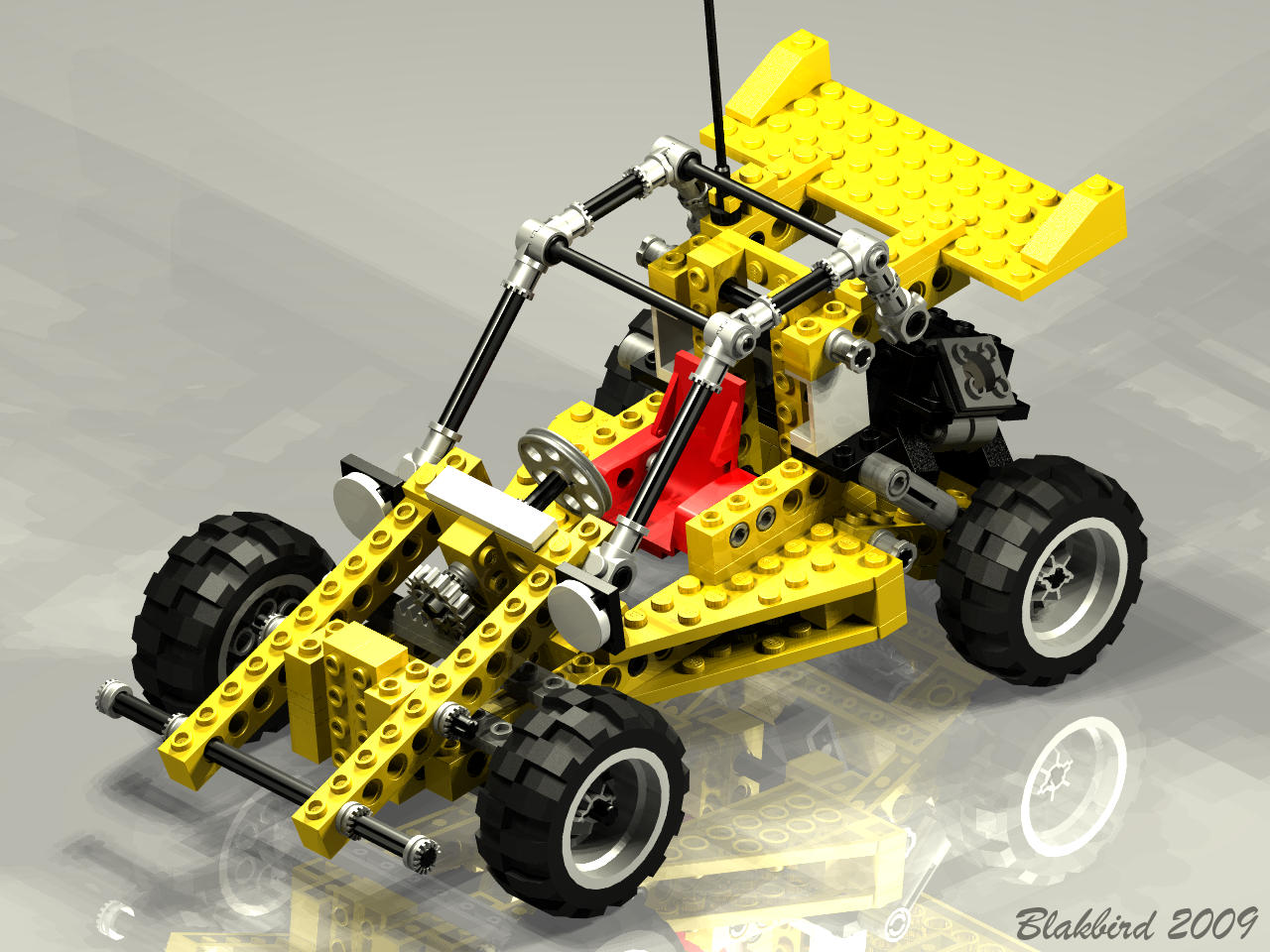

Computer Render
render
