Traxxas Slash 4x4 Project

slash

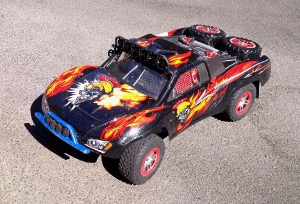

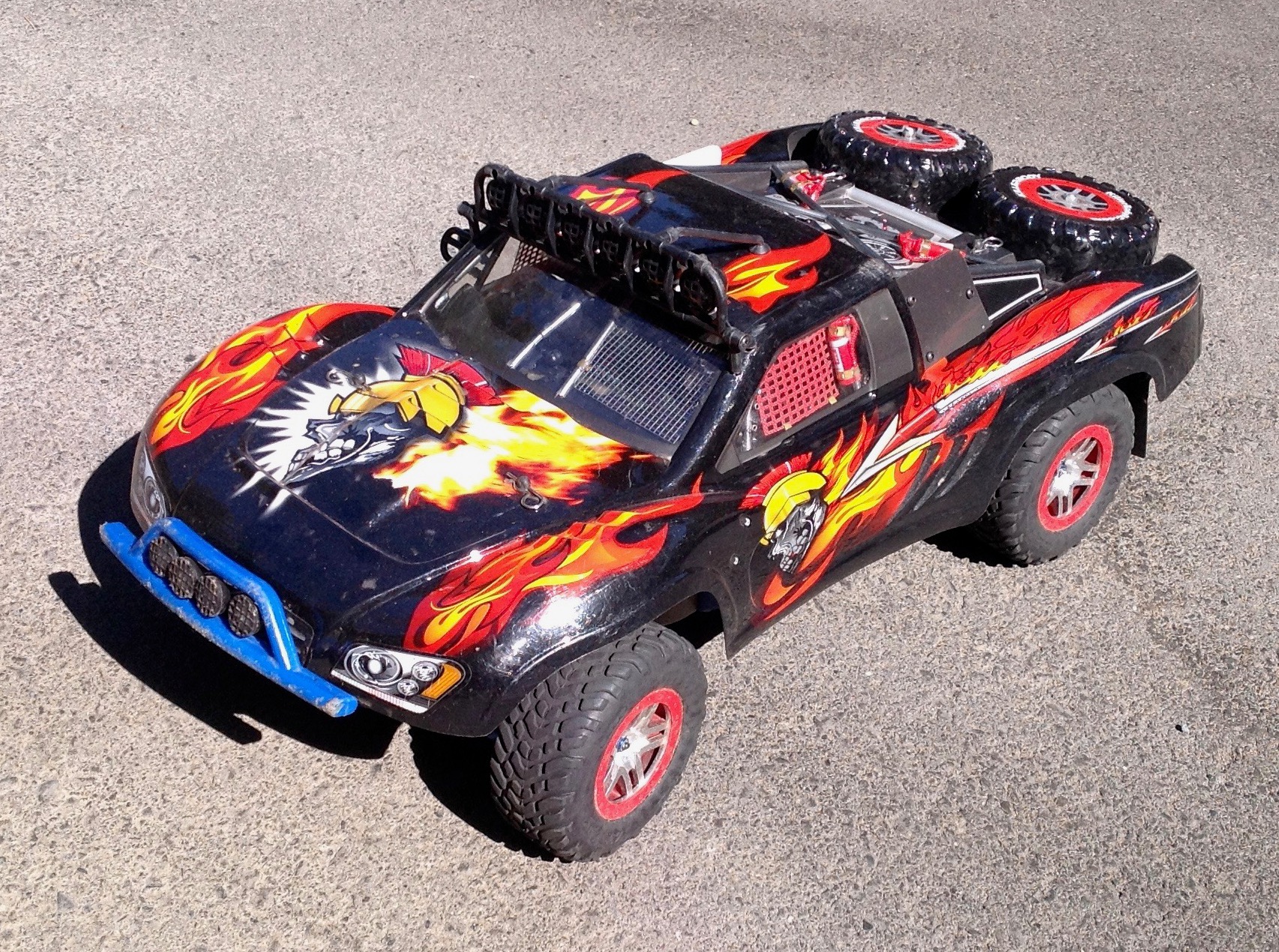

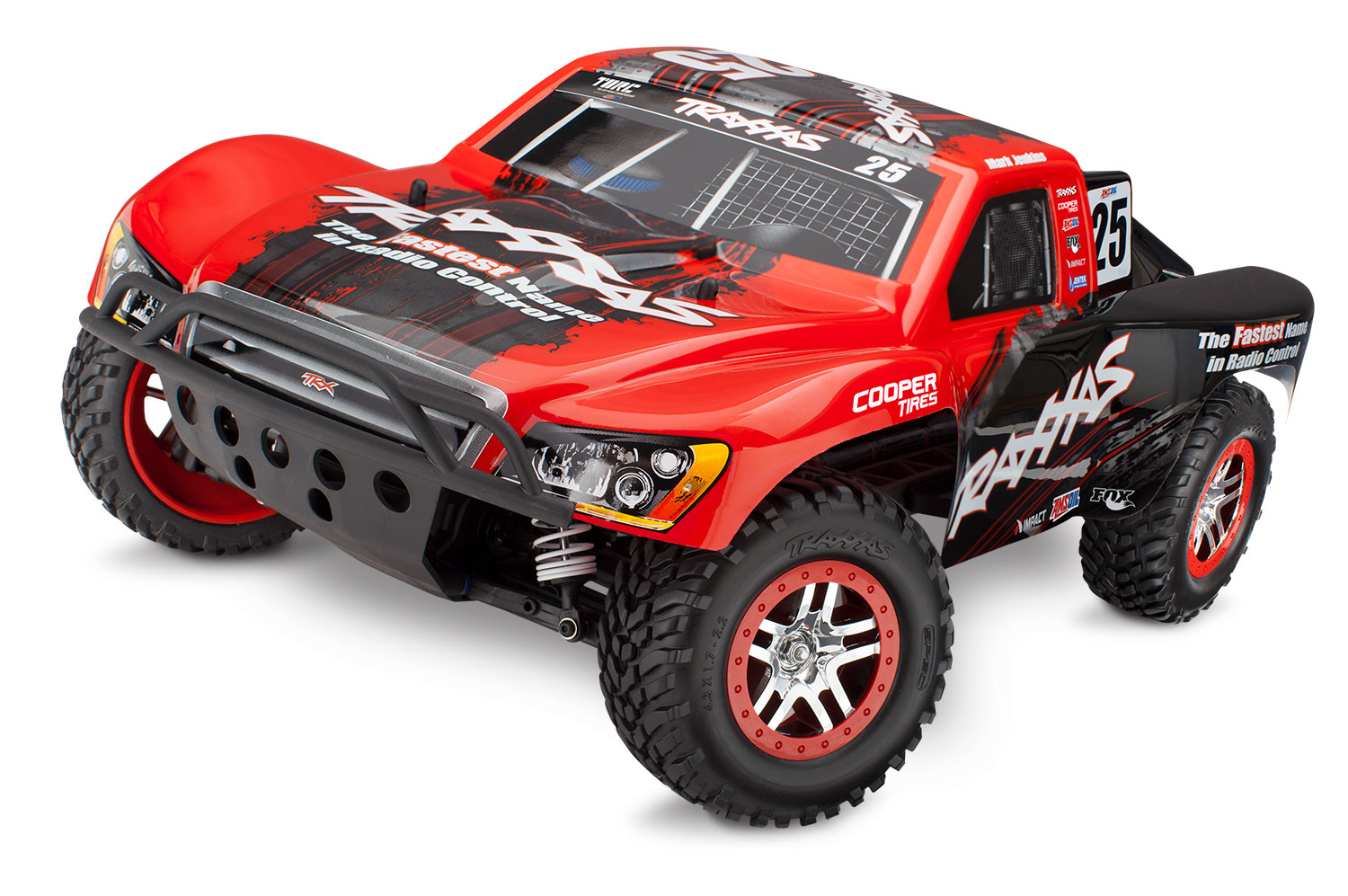

I had a Slash phase.  After returning to the RC hobby with a vengeance in my adulthood with an X-Maxx, I wanted to get my kids involved.  I took a couple of daughters to the hobby store and they each picked out a Slash: a pink one and a Hawaiian one.  I didn't know much about the Slash at the time, but after we got home and they started driving them, I found myself jealous.  So I went right back to the store the same day and got myself a brushless 4x4.  At the time I bought it, it wore a Mark Jenkins body as shown on the left.  I bashed it around for a couple of weeks and was very impressed.  I hadn't started my kit phase yet, but I had a strong urge to tinker so I went momentarily insane.  I replaced pretty much every part on the entire truck (except the ones which really matter: the electronics).  I put on RPM arms, low CG kit, aluminum hubs and shock towers, GTR shocks, the works.  You can see the extent of the upgrades in the table below.  The change which required the most work was an RC Screws stainless screw kit which required a complete teardown of the model, so I got to build it like a kit after all.  It still wasn't enough so I also got a Killer Bodies body shell with interior and filled it with 18 LED lights.  I run this on 3S and beat it pretty hard.  I don't think I've broken a single part, but I did throw the pins out of the expensive Traxxas CVD axles and had to switch back to the stock plastic telescoping axles.  I'm still using the stock tires which seem to last almost forever.

About a year later, I sold this model.  By then I had built my own short course truck from scratch and I just didn't have the same emotional attachment to this one as an RTR.  I took a huge loss on the sale, but I bet someone is enjoying it immensely.  I sometimes regret the sale because I don't really have another 4WD SCT.

Description
Manufacturer
Model #
Slash 4x4 1/10 4WD Brushless
Short Course Truck RTR
Traxxas
68086-4
Velineon 3500 kV
Brushless Motor
Traxxas
3351R
VXL-3s Waterproof Brushless
Electronic Speed Control
Traxxas
3355R
5 Channel 2.4 GHz TQi
Receiver with TSM
Traxxas
6533
High Torque Waterproof
Steering Servo
Traxxas
2075
Low CG Chassis Conversion Kit
Traxxas 7421
Velineon ESC Cooling Fan
Traxxas
3340
Sway Bar Kit
Traxxas 6898
4mm Aluminum Flanged
Serrated Nuts
Traxxas 1747R
Front Heavy Duty CV Driveshaft
Traxxas 6851R
Rear Heavy Duty CV Driveshaft Traxxas 6852R
GTR Long Hard Anodized Shocks
Traxxas 7461X
GTR XX-Long Hard Anodized Shocks Traxxas 7462X
White GTR Long 0.653 Rate Spring
Traxxas 7441
White GTR XX-Long 0.762 Rate Spring
Traxxas 7443
Front Bulkhead
RPM
73565
Rear Bumper
RPM 80125
Turnbuckle Rod End Set
RPM 80515
Nerf Bar Set
RPM 70655
Front and Rear A-arms x2
RPM 80705
Mud Flaps
RPM
81012
Front Bumper Light Canister Set
RPM
80982
12mm Aluminum Hex Adapters
ST Racing
1645R
Aluminum Rear Hub Carriers
ST Racing 1952R
Aluminum Front C-hubs
ST Racing 6832R
Aluminum Front Steering Knuckles
ST Racing 6837B
Aluminum HD Rear Shock Tower
ST Racing 6830R
Aluminum HD Front Shock Tower
ST Racing 6839R
Stainless Steel Screw Kit
RC Screwz
tra039
Front Bumper
Killer Body 48042
Front Access Light
Killer Body 48046
Unique Cockpit
Killer Body
48071
Short Course Truck MONSTER Body
Killer Body
48049
LED Light System with Control Box
(18 LEDs)
Killer Body
48103
