Tamiya Lancia 037 Rally Project



The Lancia 037 Rally has an interesting history, both in 1:1 and in model form.  The real car won the World Rally Championship constructors' championship in 1983.  Audi had come out with the Quattro in 1980 and All Wheel Drive was coming to dominate rally racing.  Rear wheel drive was disappearing, and the Lancia 037 was the last RWD car ever to win the constructors' championship.  Tamiya was quick to capitalize on the popularity of the historic car, releasing the 58040 Lancia Rally in 1983, the same year it became famous.  This model came with a wonderfully detailed hard body mimicking the original perfectly, but was paired with the ORV chassis from the Subaru Brat and common to The Frog.  While a perfectly passable chassis for something like the Frog, in my opinion it wasn't right for the Lancia at all.  It was much too wide and much too tall and therefore made the car look like some kind of monster truck instead of the rally car it should be.  In 2001 Tamiya re-released the body on the belt drive TA-03RS chassis as set 58278 and it finally looked the way it should look.  I missed out on that one by a wide margin, but luckily for me they released the 58654 version on the shaft drive TA-02S chassis in 2018.  This is a nearly perfect rendition of the car down to the drivers and tires, but it has one critical flaw: the TA-02 is a 4WD chassis.  The definitive feature that made the Lancia 037 historic is the fact that it was RWD.  Making the model in 4WD is just wrong.

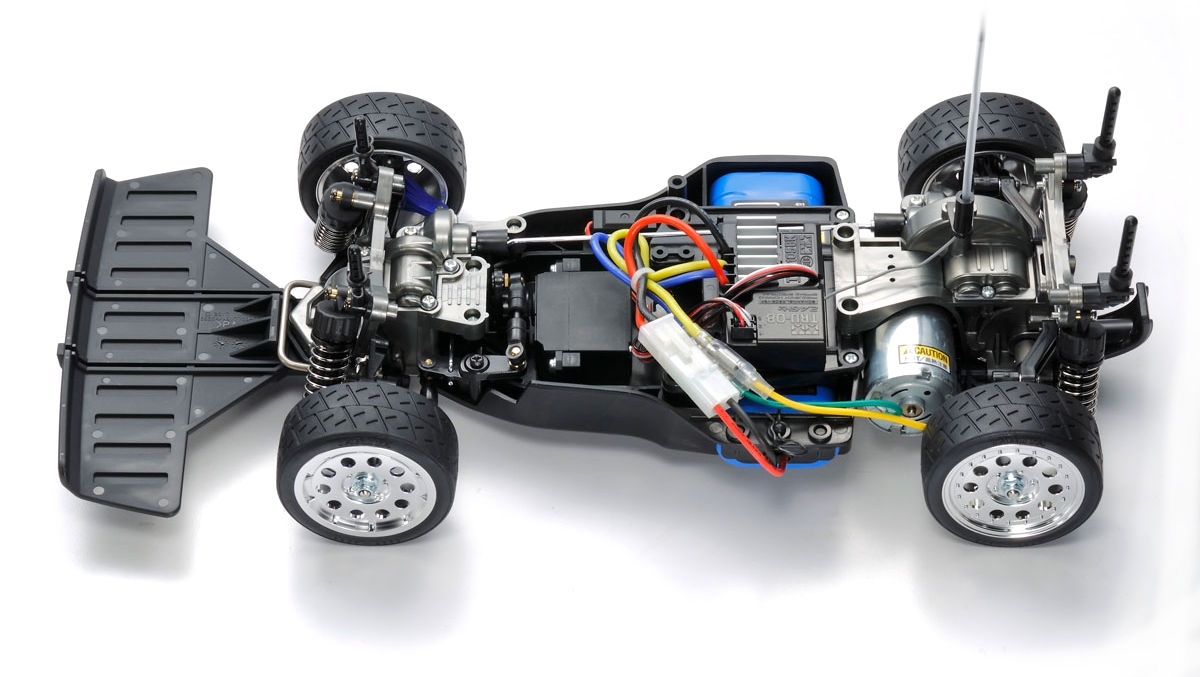

This is a 4WD shaft drive bathtub chassis with four wheel double wishbone suspension and oil filled CVA shocks.  The motor is mounted laterally just ahead of the rear axle and the battery ahead of that.  This is a very stable chassis which handles well.  Off road performance is limited due to the low ground clearance and nearly slick tires, but really this model is about the appearance and it looks fantastic.  The chassis could almost certainly handle a lot more power than the stock silver can motor, but I have no desire to roll it over and destroy the body, so for now my copy is completely box stock apart from a set of ball bearings.

Update:  This model was destroyed in the 2022 fire.  It has not been replaced.

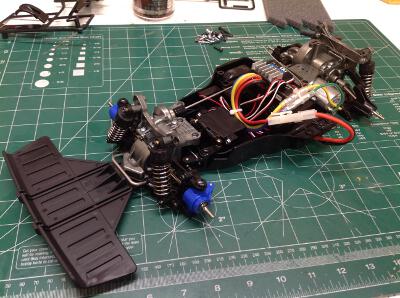

Page 1: Chassis Assembly

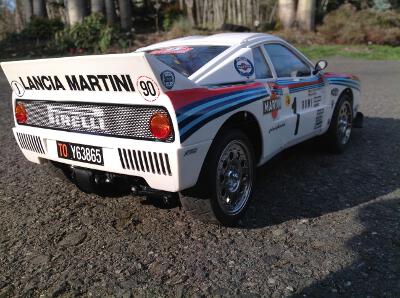

Page 2: Final Photos

Description
Manufacturer
Model #
Lancia 037 Rally 1/10th Scale Radio Control
4WD High Performance Racing Car Kit
Tamiya
58654
Mabuchi RS-540SH-6527
27T 540 Brushed Motor
Tamiya
53689
21 Tooth 0.6 Mod Steel Pinion
Robinson Racing
1121
TBLE-02s Sensored Brushless
Electronic Speed Control
Tamiya
45057
2 Channel 2.4 GHz DSMR Receiver
Spektrum
SR215
Standard Ball Bearing Servo
Futaba
S3004
TS-26 Pure White Paint
Tamiya
85026
Rubber Sealed Ball Bearing Kit
Fast EddyTFE4066
