Tamiya King Hauler Project

rig

2017 saw a resurgence in my interest in the Radio Control Hobby.  I got a couple of Traxxas Ready-to-Run models for the kids and then decided to go full blown into kit building.  Although being interested in R/C as a kid and intermittently as an adult, I had never built a Tamiya model before.  Never one to start small, I decided on a 1/14 scale tractor trailer combo with all the options and upgrades I could find. The pages below chronicle the journey of my build.

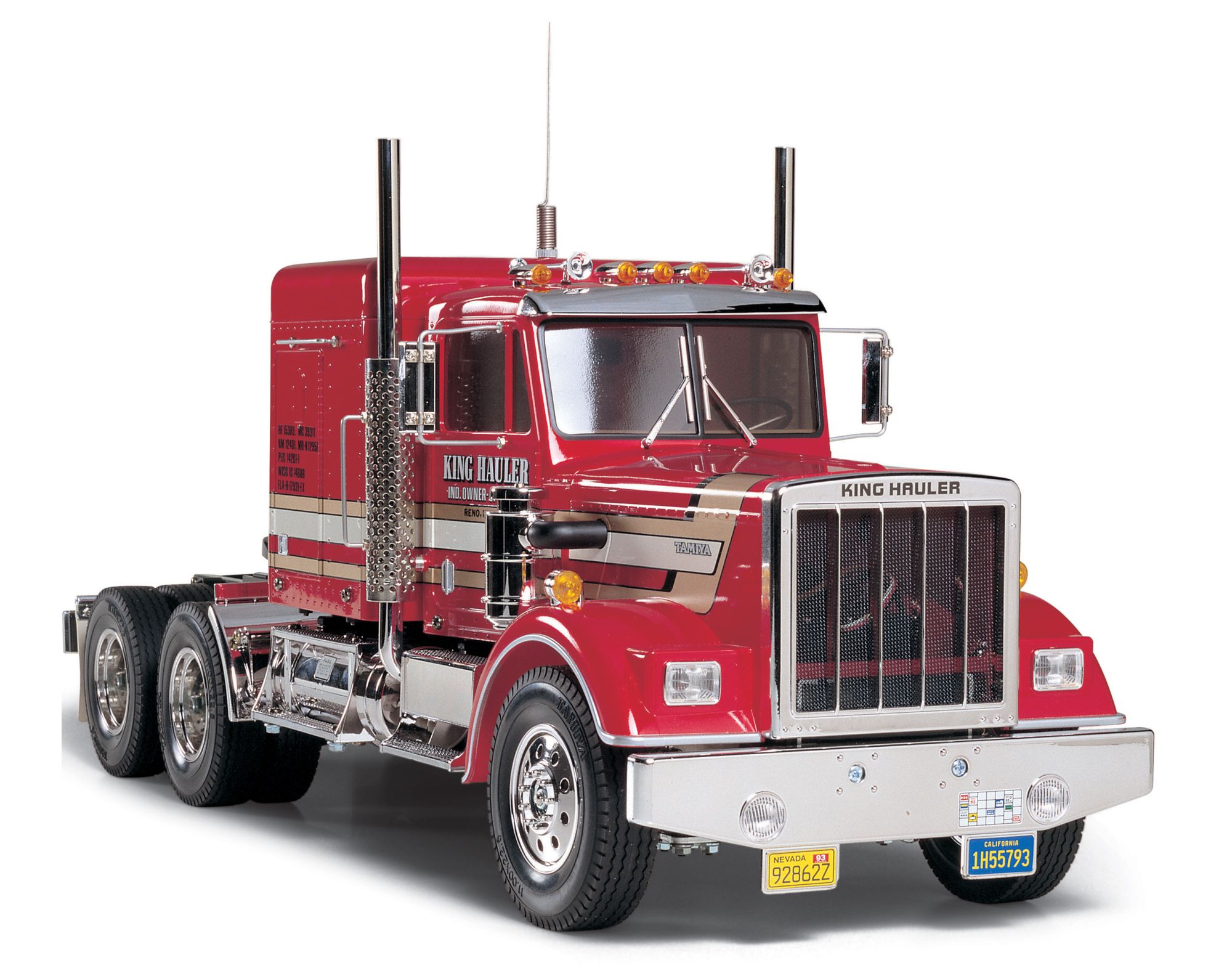

The 56301 King Hauler was Tamiya's first ever 1/14 scale tractor truck and was released in 1993.  They would then go on to progressively release another new truck approximately every 1.5 years until by 2023 there were a total of 22 different models.  The early models were unlicensed generic cabs, but it wasn't long until Mercedes Benz, Ford, Volvo, Scania, MAN, and Freightliner were added to the mix.  Of those 22 trucks, a few are derivative such as 4x2 and 6x4 versions of the same cab or box and tractor truck variants of the same cab, but most of them are unique cabs sharing a mostly common chassis.  The King Hauler and all the other 6x4's have dual rear differentials with tandem dually axles and a three speed gearbox.  More recent 8x4 models have two steered front axles.  The gearbox is essentially unchanged in all that time, and for the most part the chassis is as well.  There are some servo mounting differences between longnose and cabover varieties.  It is quite amazing that, as of 2023, virtually all of these varieties are still available in at least one form or another so it is a pretty simple matter to collect them all (if you can come up with the money).  Apart from their extreme realism in appearance, one of the best things about the tractor trucks is the ability to add the MFC (Multi-Function Control Unit) which adds dozens of lights, engine sounds, and vibration features to the model.  Once the MFC is installed, these are insanely fun to drive because they look and sound truly magnificent.

I originally used the "Euro-Style" MFC-03 because it was the most current.  I didn't realize at the time that it has different sounds than the old MFC-01 which sounds more "American" so I went back later and it swapped it out.  The 56511 MFC-01 came out in 2003.  The 53957 MFC-02 is for the Highlift series of 1/10 trucks, and the 56523 MFC-03 came out in 2014 (without a whole lot in the way of changes).  This means that there was no MFC available when the King Hauler came out in the dark ages (electronically speaking) of 1993.  Instead there was the 56501 Tractor Truck Electrical Unit Set which contained lights and a backup beeper (full of incandescent lights, switches, ribbon cables, terminal blocks, and circuit boards) and the separately available 56510 Tractor Truck Sound Unit.

To be honest, I didn't know any of what I wrote above when I bought this model.  I just chose the King Hauler because it looked cool and was available.  As it turns out, the 56336 metallic black version had been released in 2013 and was still easy to find.  I didn't know the King Hauler was the oldest and, in some ways, the simplest.  The MFC didn't exist when the King Hauler was first released which made installation a little tricky, but that was part of the fun.

Update:  This model was destroyed in the 2022 fire.  As the first model I'd built at the start of my adult RC renaissance, this was a priority for replacement.  I was able to find the same Black Edition model kit and MFC and proceeded to rebuild the model very much as before, but 6 years later and with a whole lot more experience and knowledge.  Changes include a Tamiya TR Tuned motor and different servos.  This time I omitted the ball bearings and oil shocks because I felt they weren't necessary.  Visually the new model is indistinguishable from my original build so I didn't take any new pictures.

box
Page 1: Unboxing and building

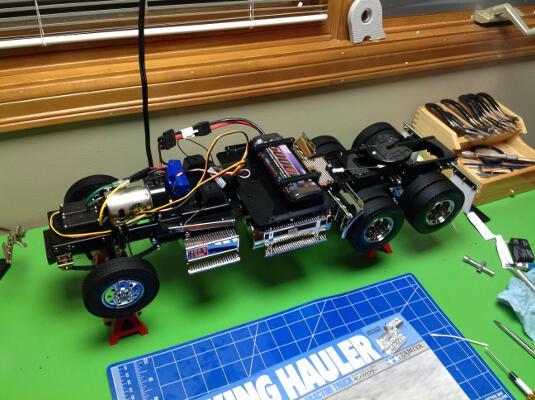

the frame
susp

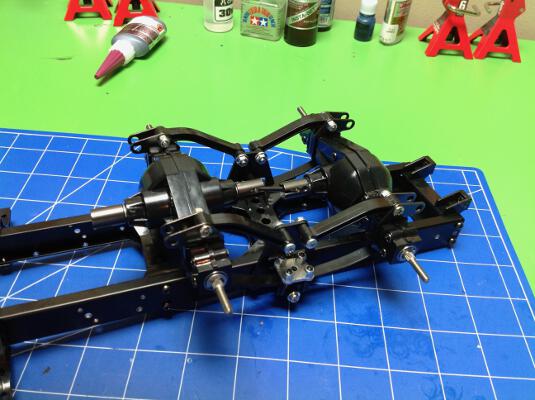

Page 2: Building the suspension

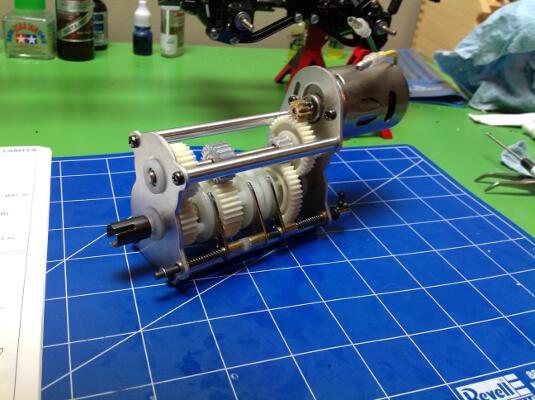

xmsn
Page 3: Building the transmission
chassis
Page 4:  Finishing the Chassis

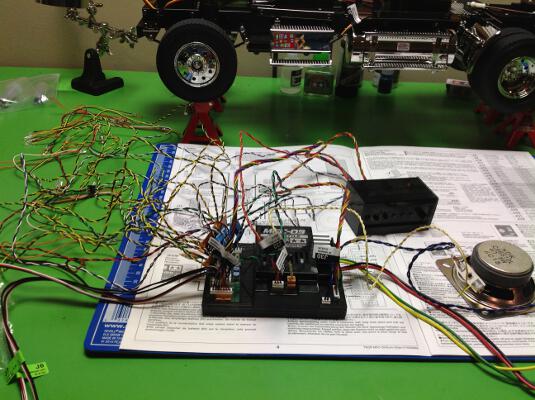

mfc
Page 5:  Installing the Multi-Function
Controller

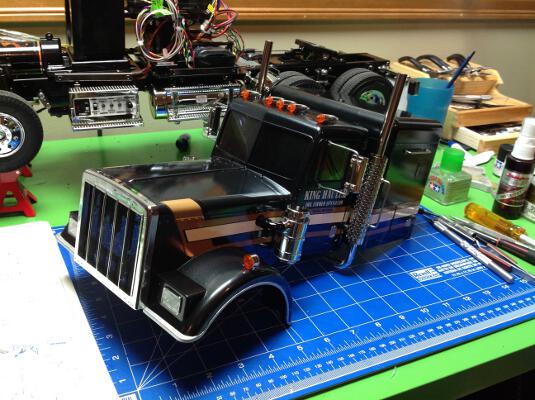

body
Page 6: Building the body

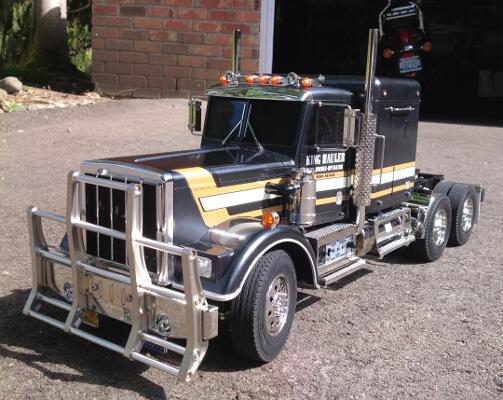

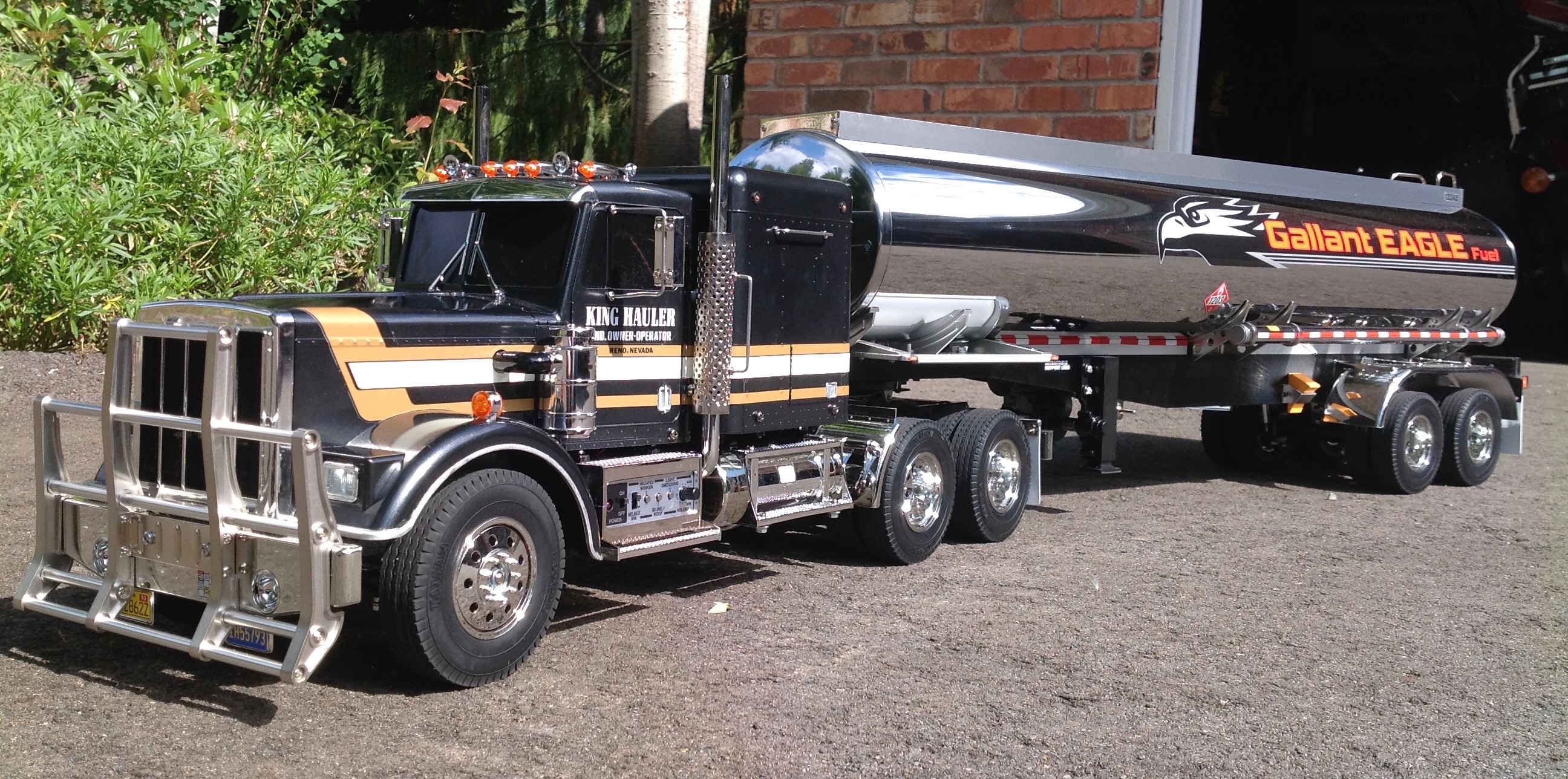

tractor
Page 7: Final photos


Original Build

Replacement Build
Description
Manufacturer
Model #
King Hauler 1/14 Scale Radio Control
Tractor Truck Kit (Black Edition)
Tamiya
56336
Multi-Function Control Unit (MFC-01)
Tamiya
56511
Trail Breaker 55T Rebuildable
Electric Motor
AxialAX31330
Standard Economy Servo x3
HiTecHS-311
4 Channel 2.4 GHz Receiver
Futaba
R204GF-E
3mm Amber LED x2
Tamiya7175101
5mm Halogen LED x2
Tamiya
56522
Animal Guard
Tamiya 56506
Aluminum Oil Damper x3
Tamiya
56515
5x11mm Rubber Sealed
Ball Bearings x34
Advantage Racing
MR115-2RS
6x12mm Rubber Sealed
Ball Bearings x4
Advantage Racing MR126-2RS

Description
Manufacturer
Model #
King Hauler 1/14 Scale Radio Control
Tractor Truck Kit (Black Edition)
Tamiya
56336
Multi-Function Control Unit (MFC-01)
Tamiya
56511
Torque Tuned TR 33T Rebuildable
Electric Motor
Tamiya56526
Standard Ball Bearing
Servo x3
Tamiya
S3004
4 Channel 2.4 GHz Receiver
Futaba
R204GF-E
3mm Amber LED x2
Tamiya7175101
5mm Halogen LED x2
Tamiya
56522
Animal Guard
Tamiya 56506
