Description |
Manufacturer |
Model # |
---|---|---|

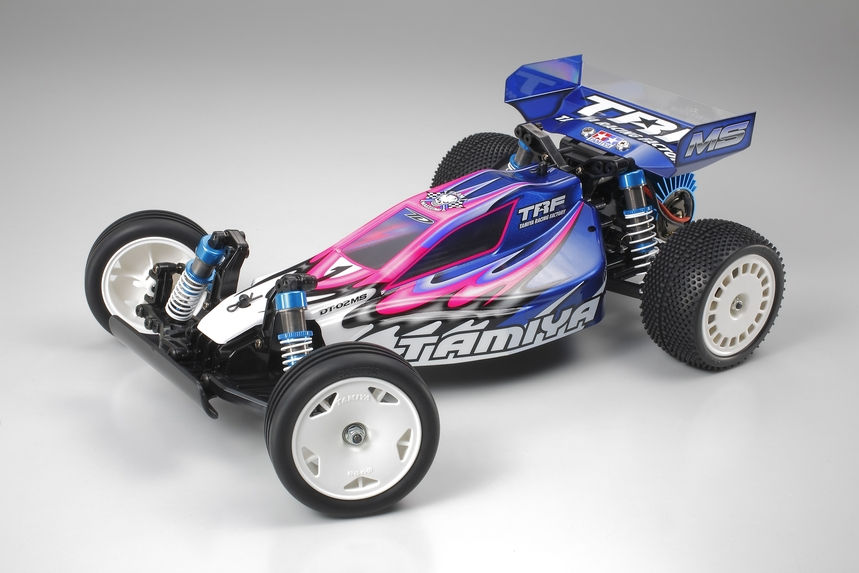

DT-02 MS 1/10 Scale R/C High Performance Off Road Racer Kit |
Tamiya |
49475 |
Sport Tuned 23T 540 Brushed Motor | Tamiya | 53068 |
19 Tooth 32p Steel Pinion | Robinson Racing | 0190 |
Quicrun Waterproof 60A Brushed Electronic Speed Control | Hobbywing | 1060 |
2 Channel 2.4 GHz DSMR Receiver | Spektrum | SR215 |
Standard Ball Bearing Steering Servo | Futaba | S3004 |
2WD Off Road Wide Front Tires (60/19) |
Tamiya |
51207 |
Dual Block Tires K (62/35) |
Tamiya |
54186 |
PS-16 Metallic Blue Paint |
Tamiya | 86016 |
PS-1 White Paint |
Tamiya | 86001 |
PS-12 Silver Paint |
Tamiya | 86012 |
PS-31 Smoke Paint |
Tamiya | 86031 |
Hi-Torque Servo Saver |
Tamiya | 51000 |
Universal Shaft Assembly |
Tamiya | 53791 |
DT-02 Turnbuckle Set |
Tamiya | 53828 |
DT-02 Aluminum Motor Heat Sink |
Tamiya | 53831 |
DT-02 Ball Differential Set |
Tamiya | 53863 |
DF-03 Aluminum Oil Damper Set |
Tamiya | 53926 |
Hard Turnbuckle Shaft Set (42mm) |
Tamiya | 53942 |
Hard Turnbuckle Shaft Set (46mm) | Tamiya | 53943 |

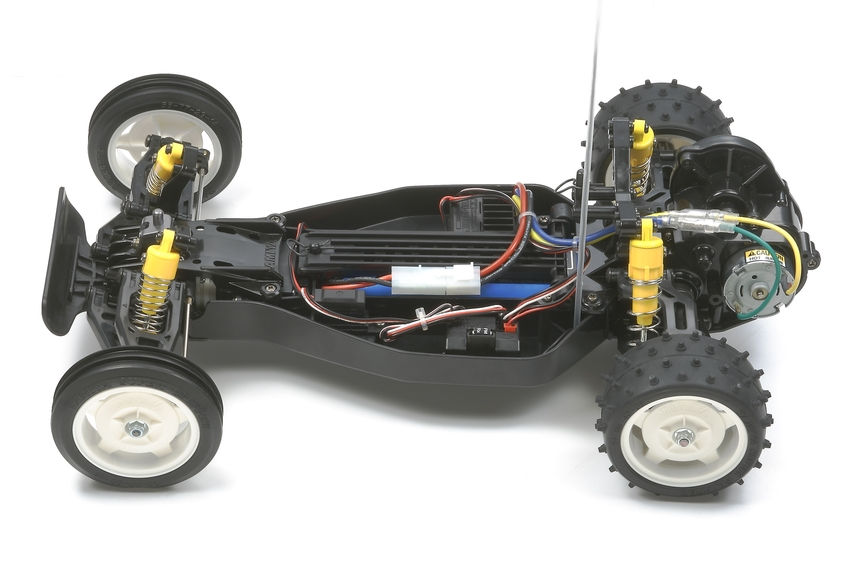

Highlighted parts came with DT-02 MS Chassis Set |
