Tamiya Midnight Pumpkin Project

Page 2: Upgrades!

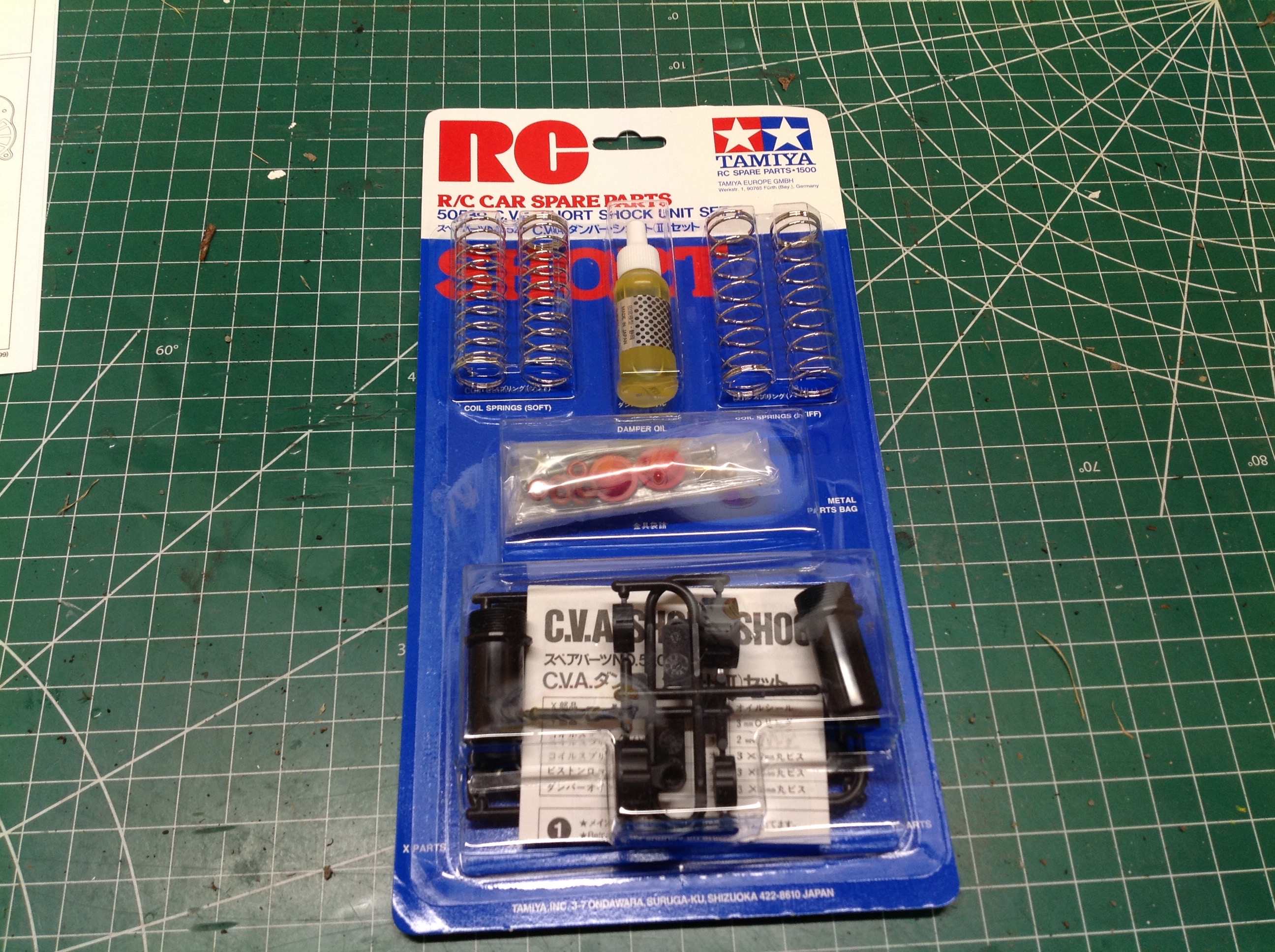

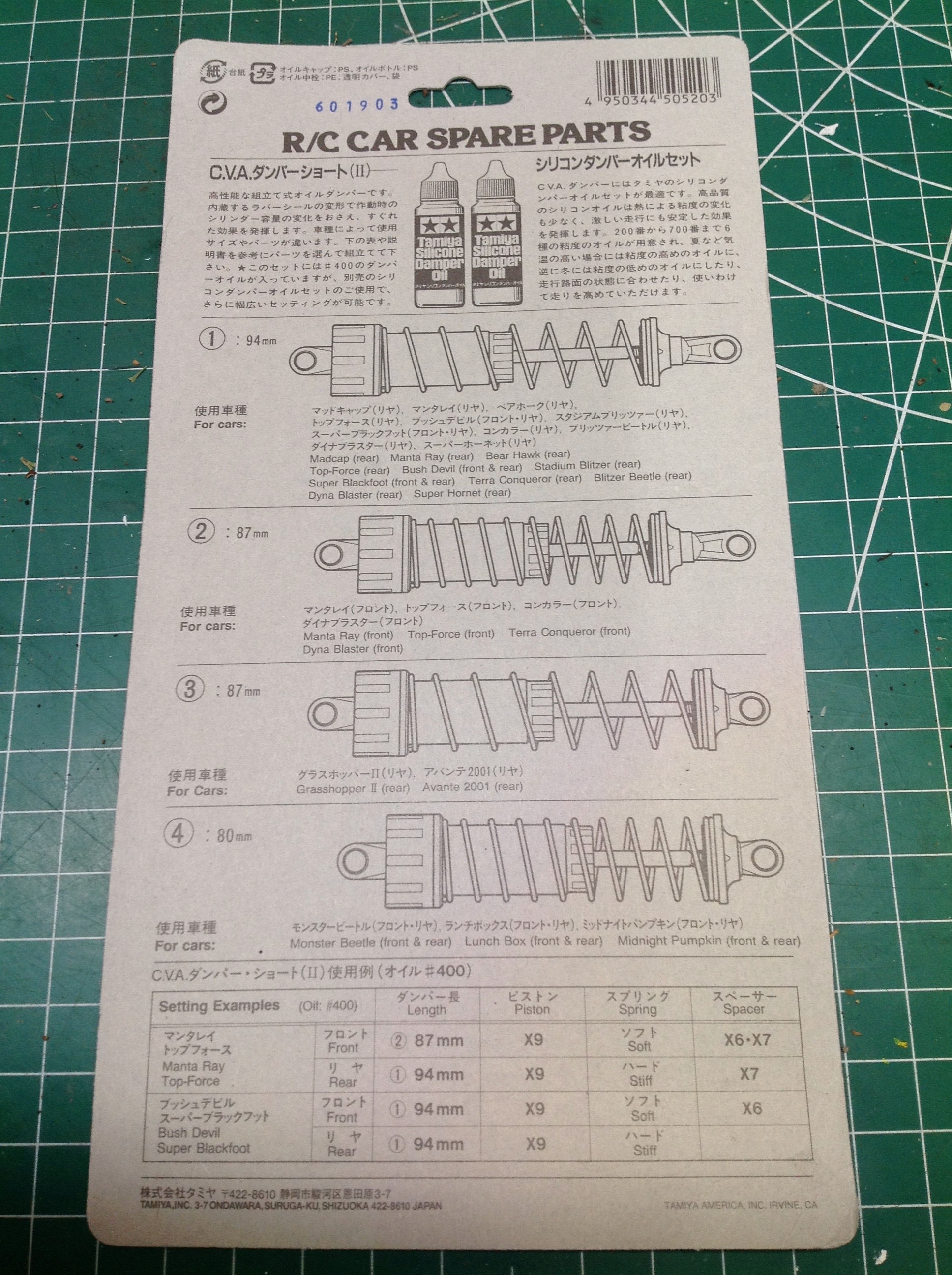

There's not a whole lot of point in upgrading the Midnight Pumpkin, but after 2 years of driving it occasionally I did decide it would benefit from some CVA oil dampers.  This set of "short" dampers can be adjusted anywhere from 80mm to 94mm in length.  The MP uses the shortest version.  I did not realize that I would need two sets of these for the model.  Because you can see four springs I figured there were 4 shocks, but there are actually two sets of springs included with different rates.

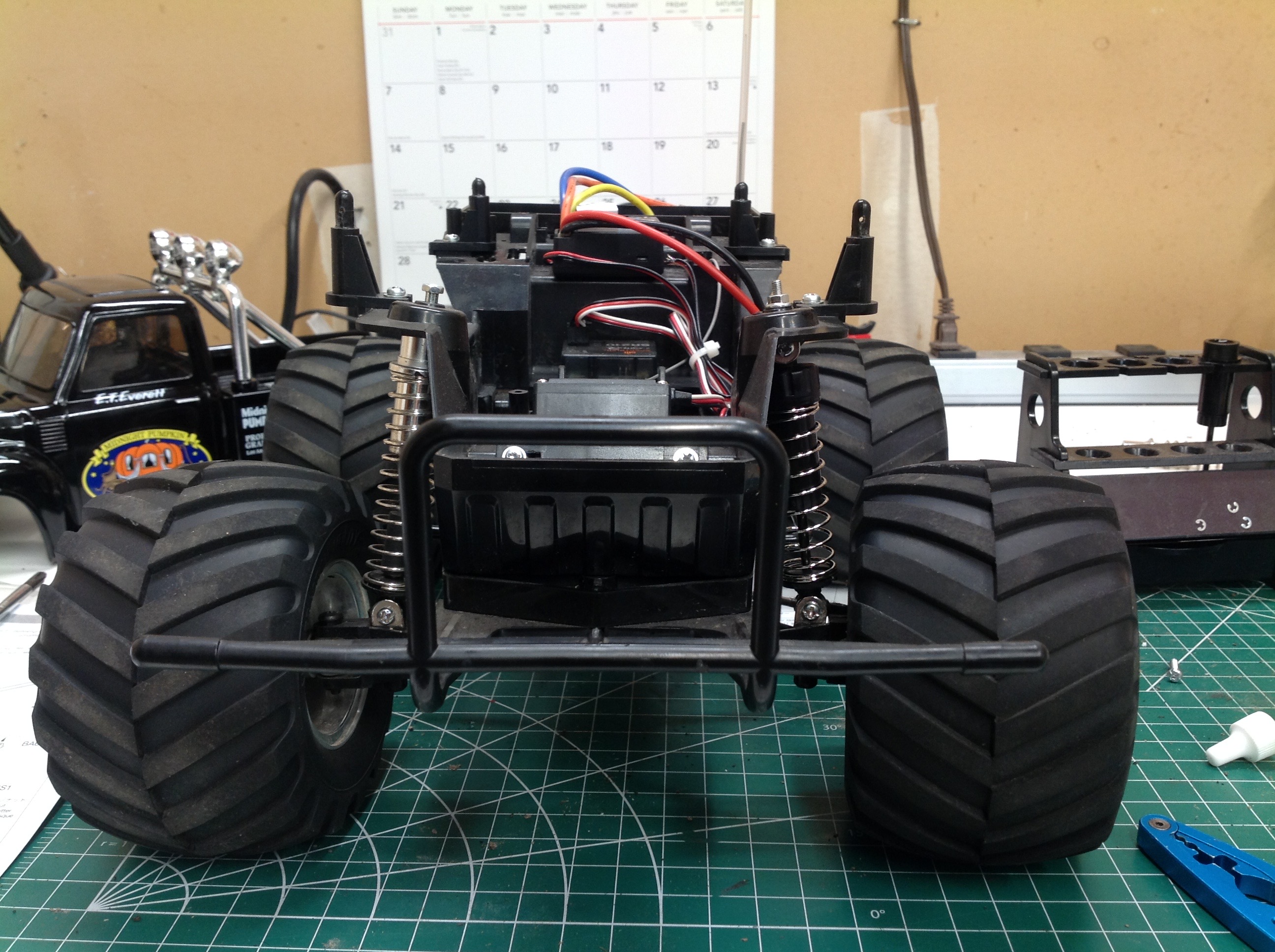

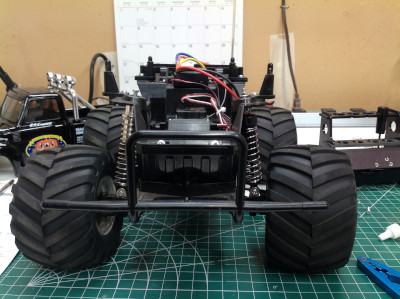

The original kit included the brackets needed to convert from the stock pogo stick installation to the CVA shocks.  Luckily I still had them.  This picture shows one old front shock on the left and a new CVA shock on the right.  One thing I should mention concerns the springs.  The instructions tell you to use the softer springs on all 4 corners of the model, but I found that these were too soft for the front.  When backing up the front suspension compresses and scrapes the body.  I switched the front to the hard shocks and it solved the problem.

I also came back a couple of years later and mildly upgraded the motor from a silver can to a Torque Tuned.  It actually made a significant difference in the ability to wheelie.
