Original Year
 1988
# of pieces
 85
Categories
 Cars and Trucks: Go Carts
Dimensions
 16(L)x11(W)x9(H)
Features
 Steering, rear suspension
Other Views

8832 Roadster

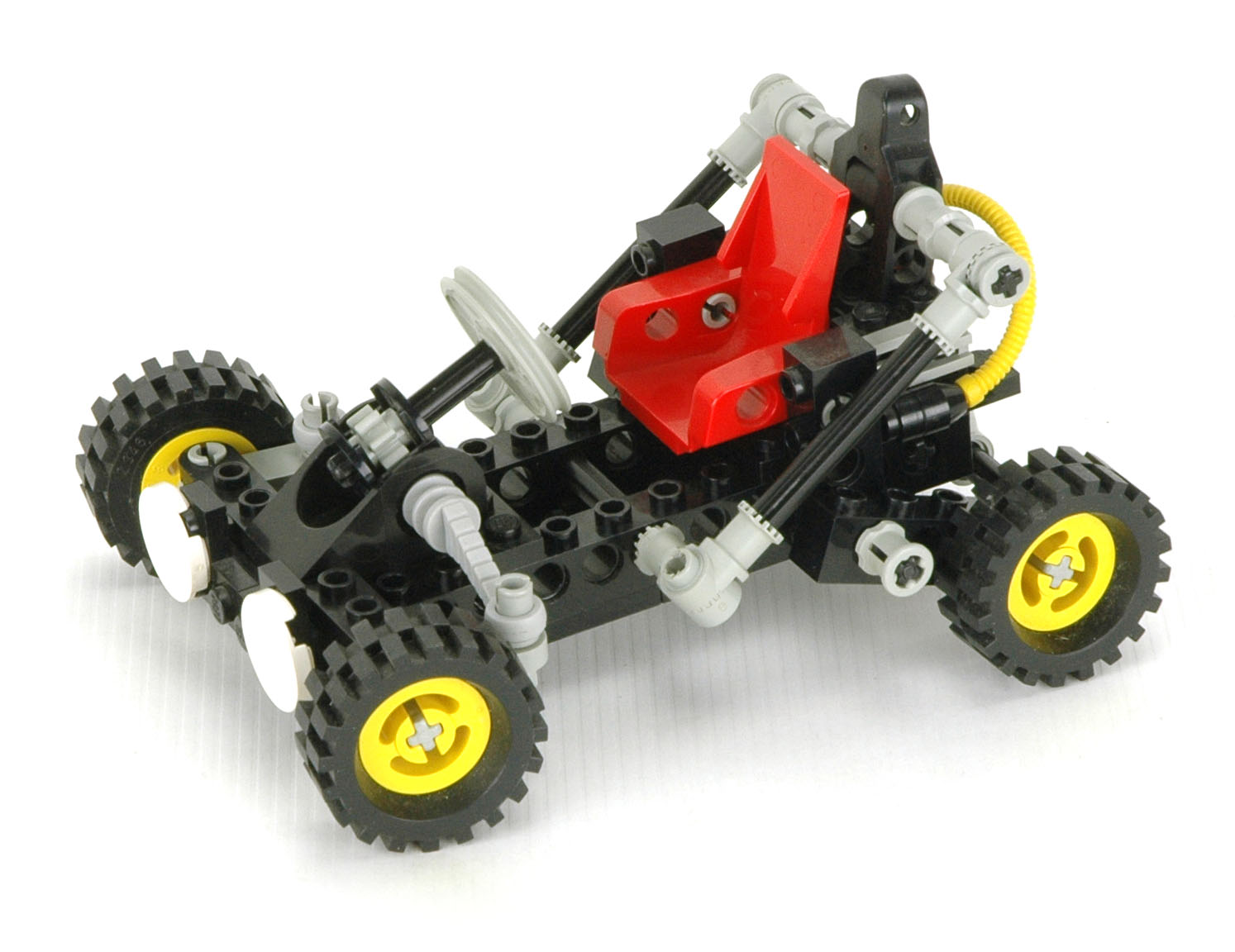

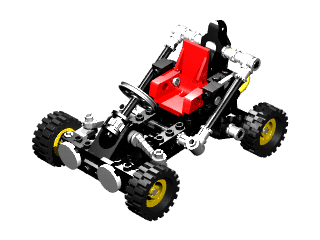

iso revolve
Click the image to download the LDraw file of this model.
Model by Benjamin Wendl
Set 8832 was released in 1988, and was already the 4th Technic go cart.  This set features rack and pinion steering using the new steering parts and a swing arm rear axle suspension.  It is the first go cart to feature the specialized seat designed to fit a figure, although no figure comes with the set.

Features

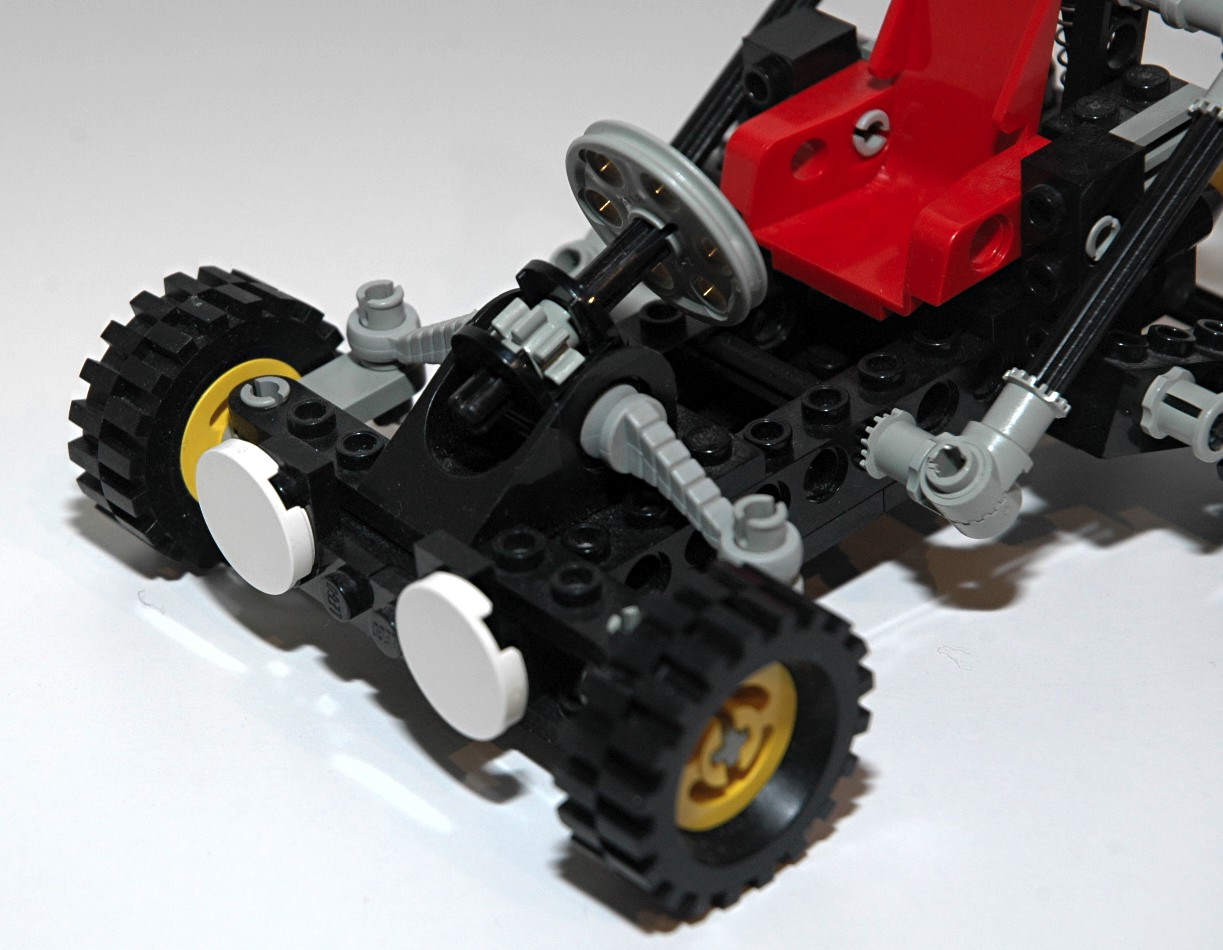

Steering

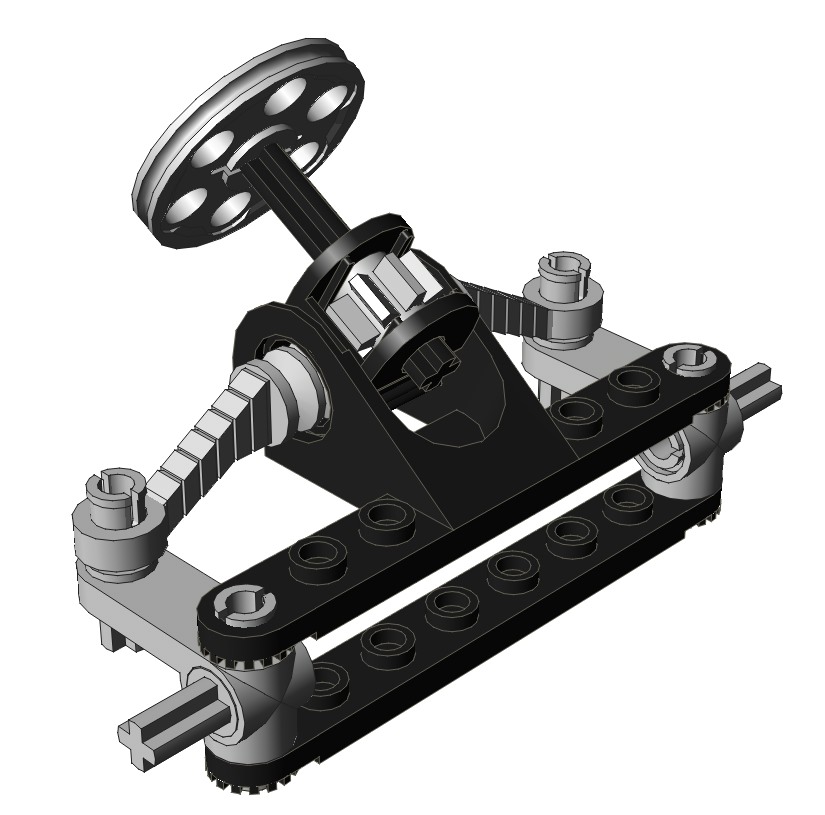

The front wheels can be steered using a wheel at the driver's position.  The wheel drives an axle connected to a 8 tooth pinion gear.  The gear drives a new flexible rack.  The steering mechanism itself uses steering arms and toothed links.

This model effectively has tilt steering since the angle of the steering column can be changed.
 steering     steering

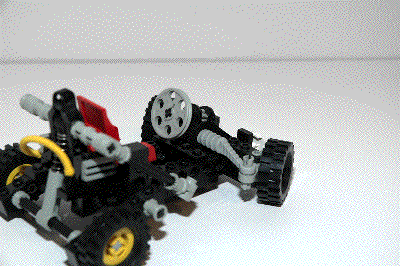

Click for an animation of the steering in motion.

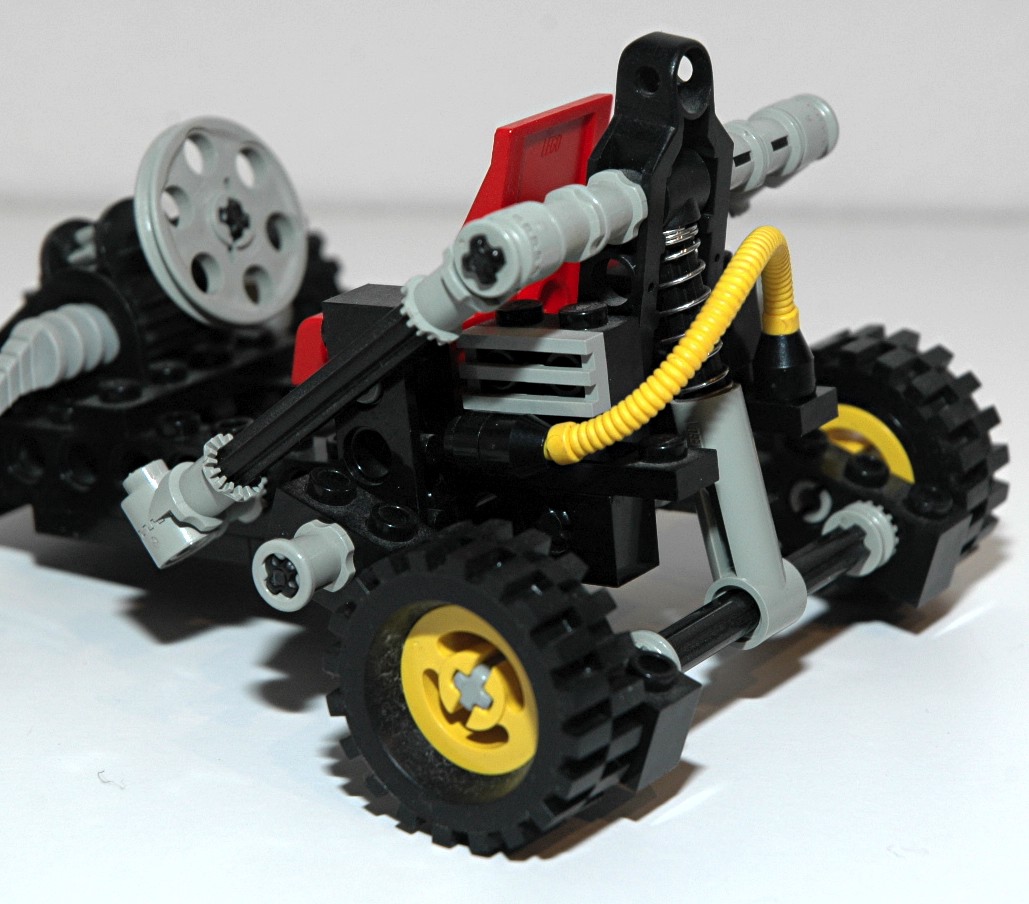

Suspension

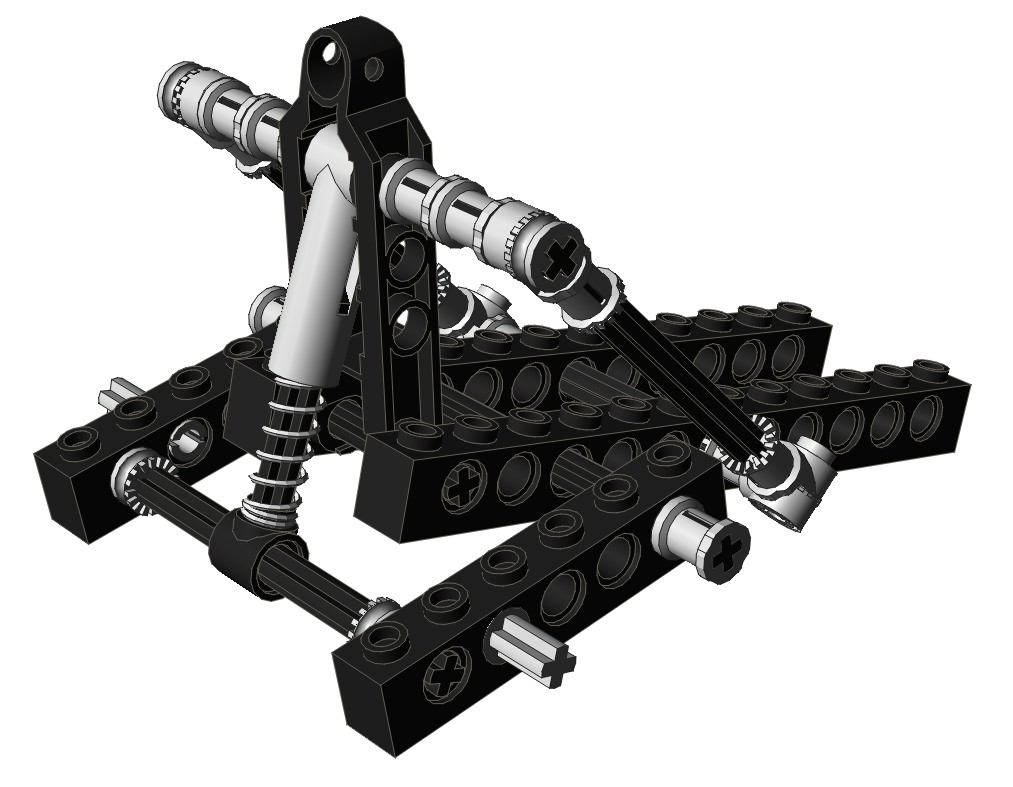

The rear axle uses a swing arm type suspension.  The arms are 6L beams.  A single central shock absorber provides support.  One of the new control arms is used as a vertical member to support the shock, as well as connect to the roll bar assembly.
suspension   suspension

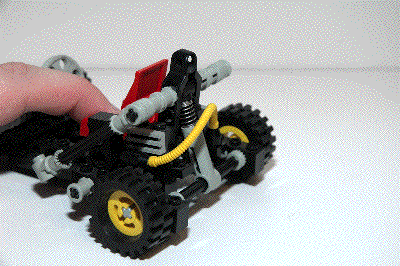

Click for an animation of the suspension in motion.

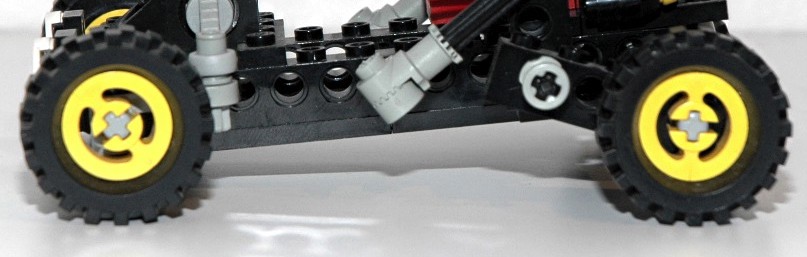

Wheels and Tires
This set uses four small rubber tires and standard old wheels.
 Wheels


Other Views

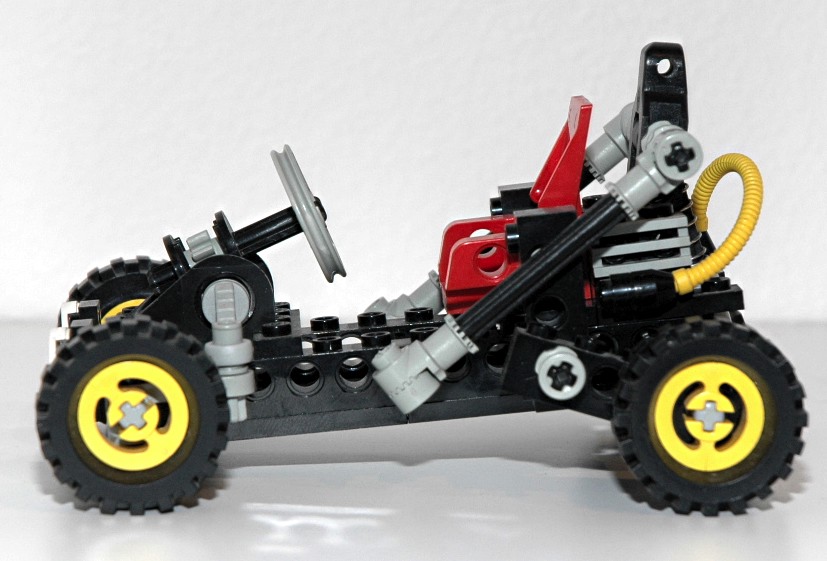

Side View
side view

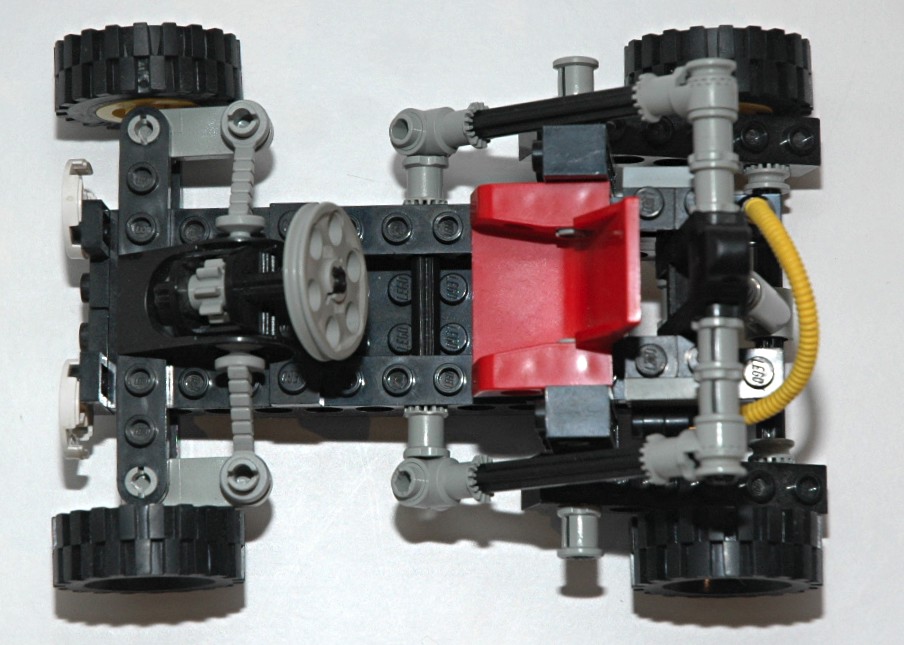

 Top View
top view

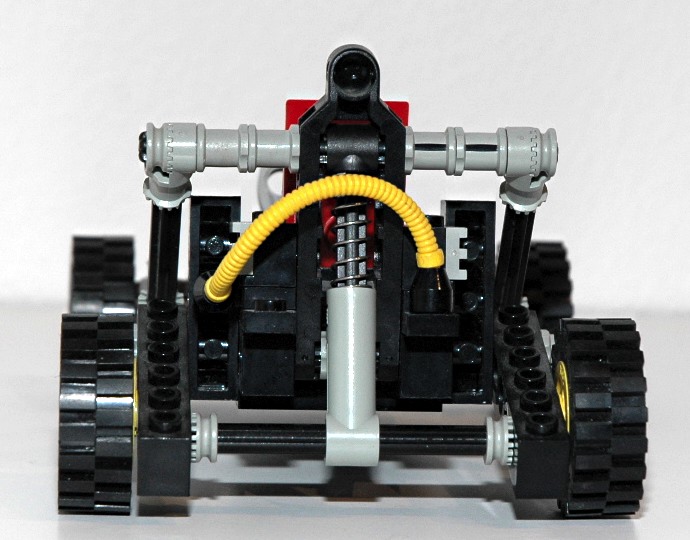

Back View
back view

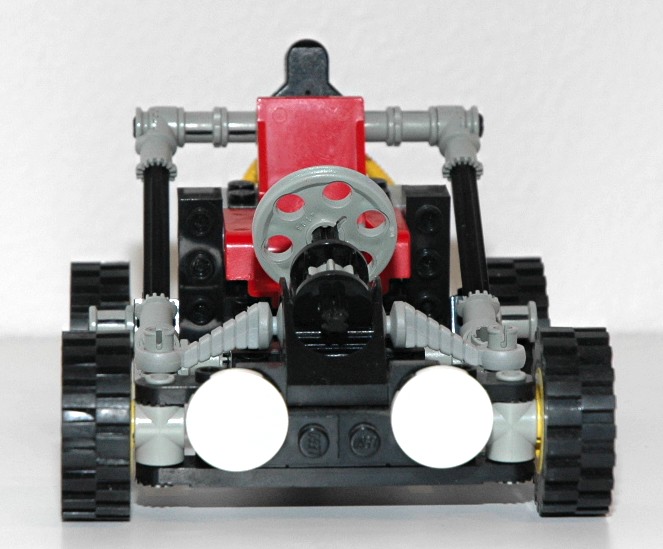

Front View
front view

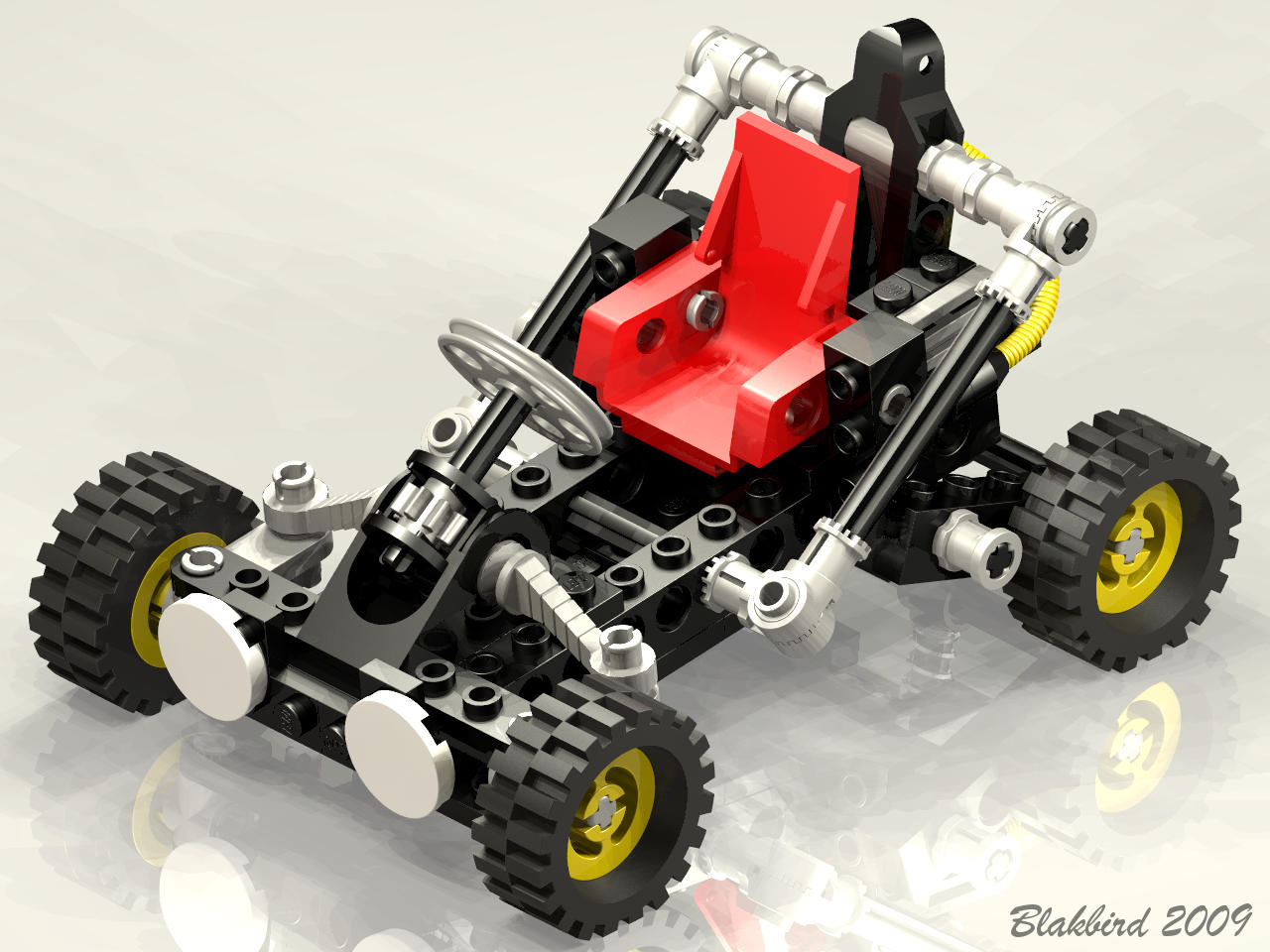

Computer Render
Render
