Original Year
1999
# of pieces
89
Categories
Other: Motorcycles
Other: Mini/Micro
Dimensions
18(L)x6(W)x11(H)
Features
Steering,
Rear Suspension
Other Views

8251 Sonic Cycle

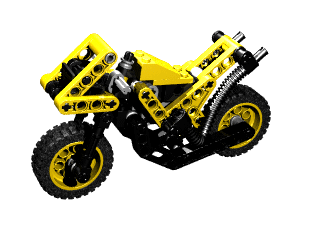

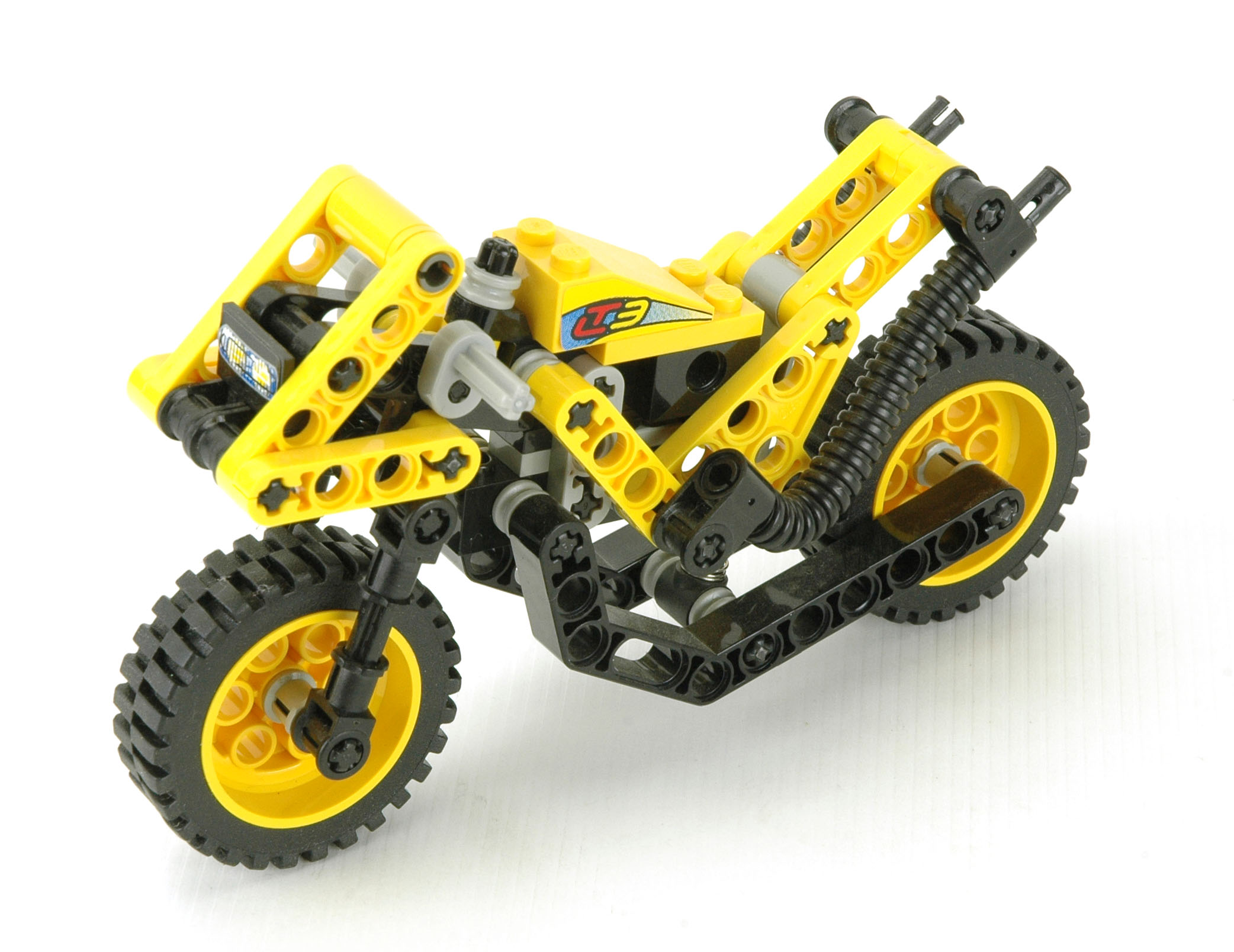

iso revolve
Click the image to download the LDraw file of this model.
Model by Michael Heidemann


While similar in size to 8210, this little motorcycle adds more stylized highlights including more non-square angles and curved exhaust.  It also makes use of many of the newer 1/2 thickness Technic parts.

Features

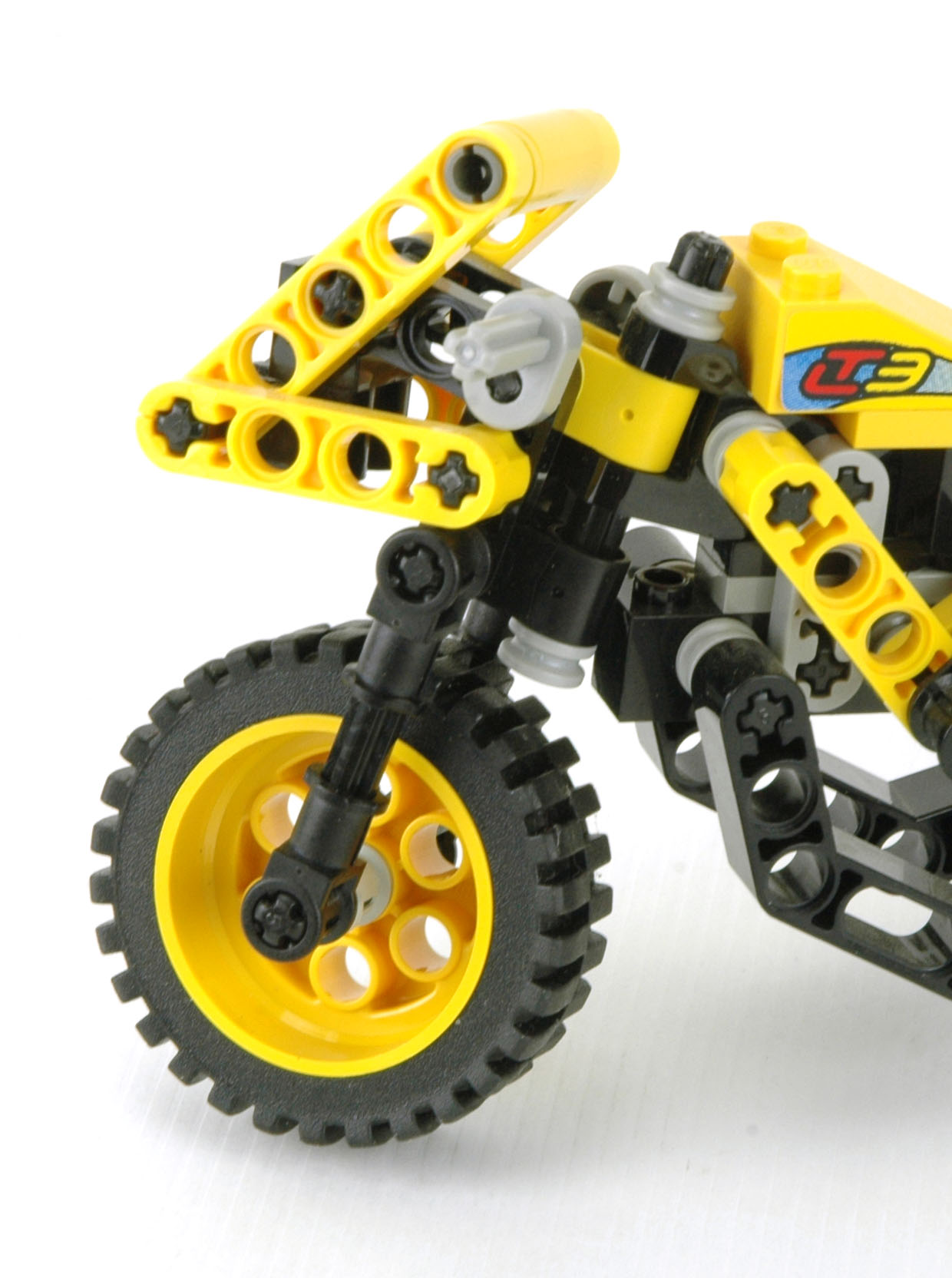

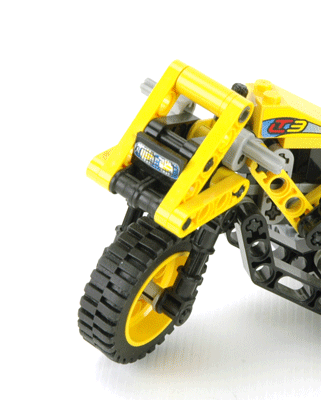

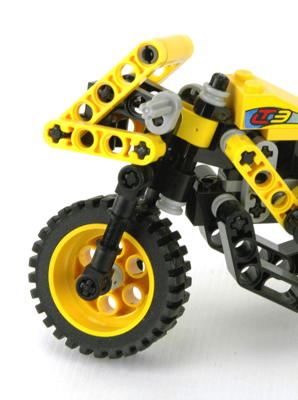

Steering

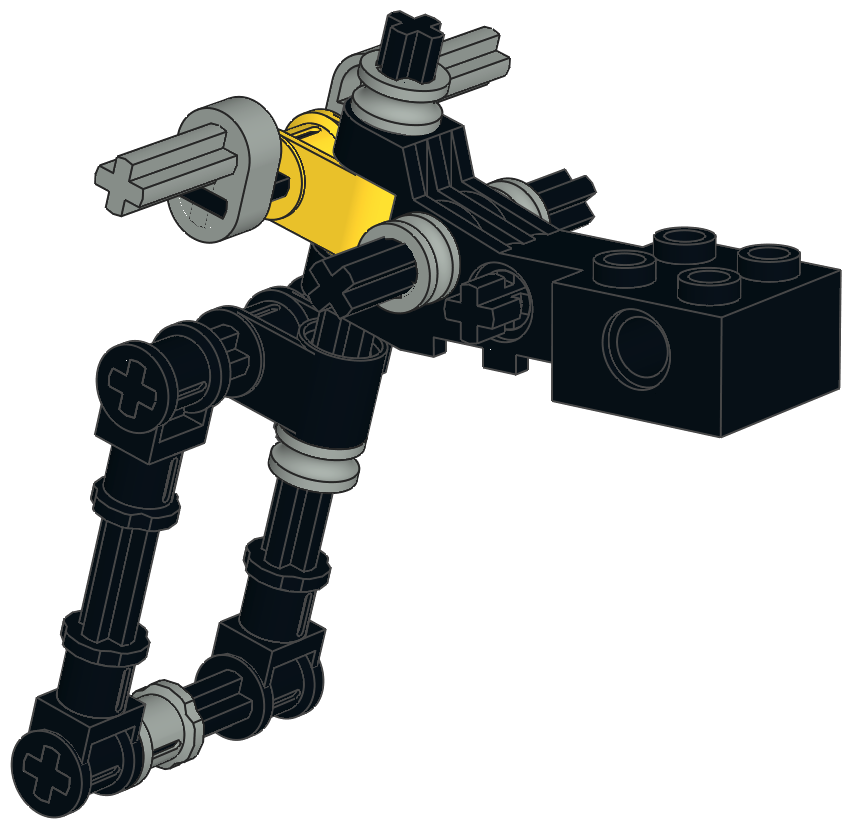

The front fork can be steered using the handle bars which are made from crankshaft elements.  The fork pivots around an axle which passes through the head tube part.   The fork rake angle is set by the head tube.

The front down tubes are solid and have no suspension.
steering    steering
Click for an animation of the steering in motion.

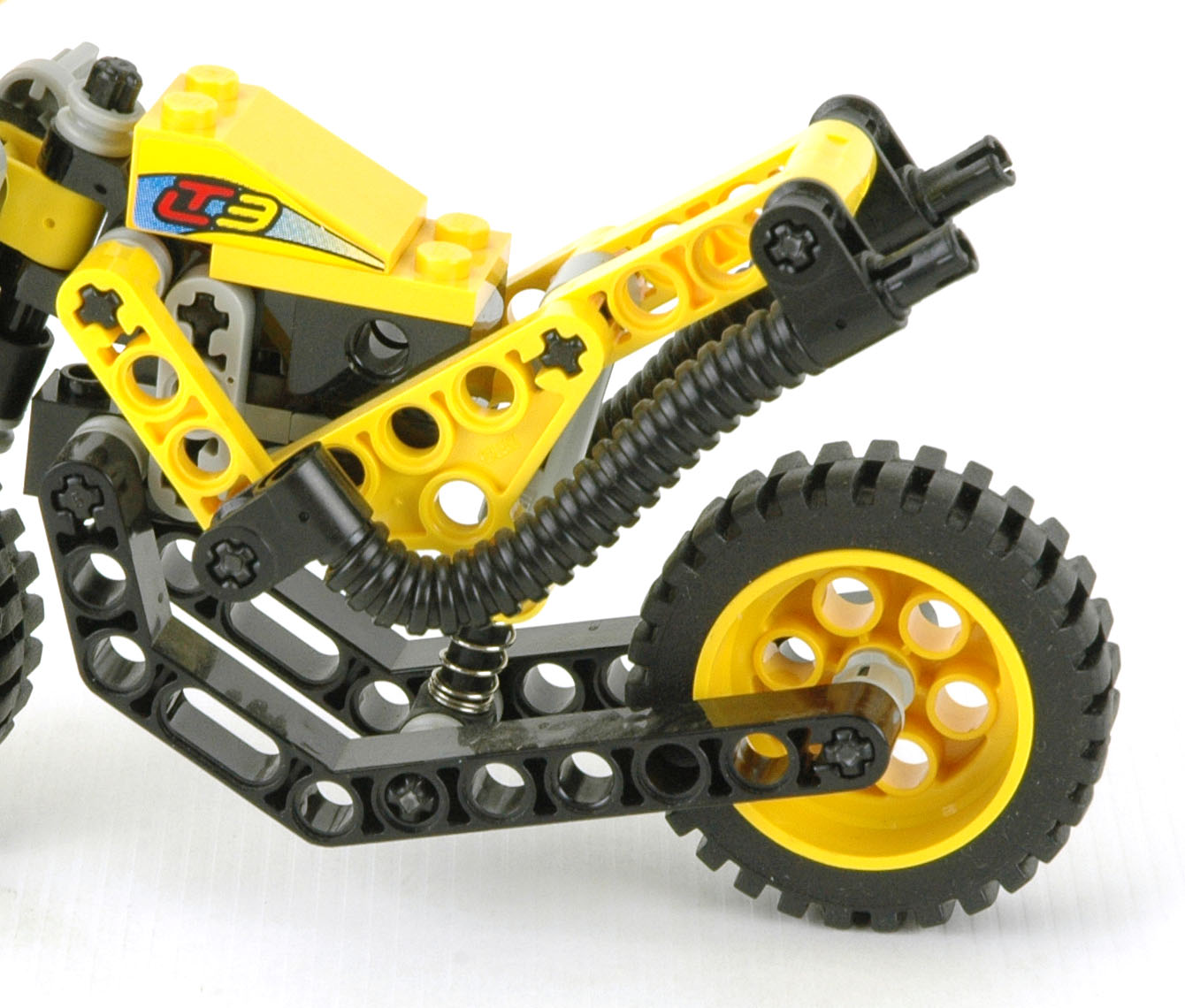

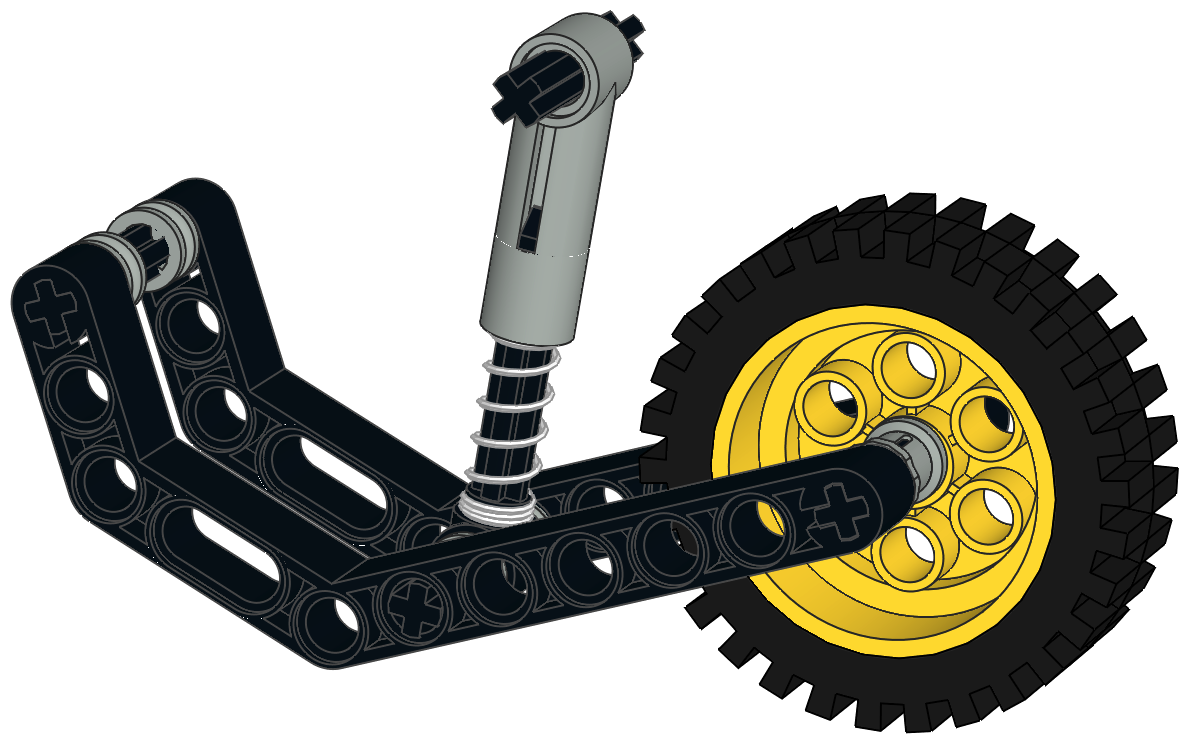

Suspension
The rear wheel is attached to a trailing arm supported by a spring loaded mono-shock which attaches under the seat.  The tire will contact the seat at full suspension compression.
suspension    suspension

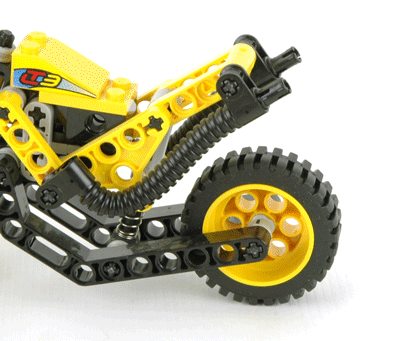

Click for an animation of the suspension in motion.

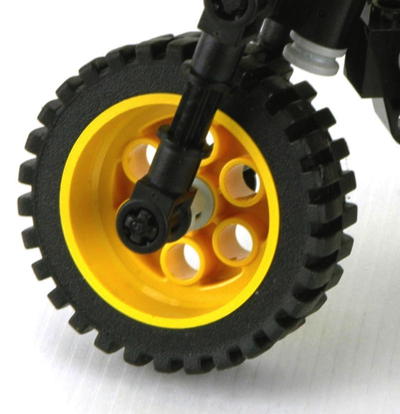

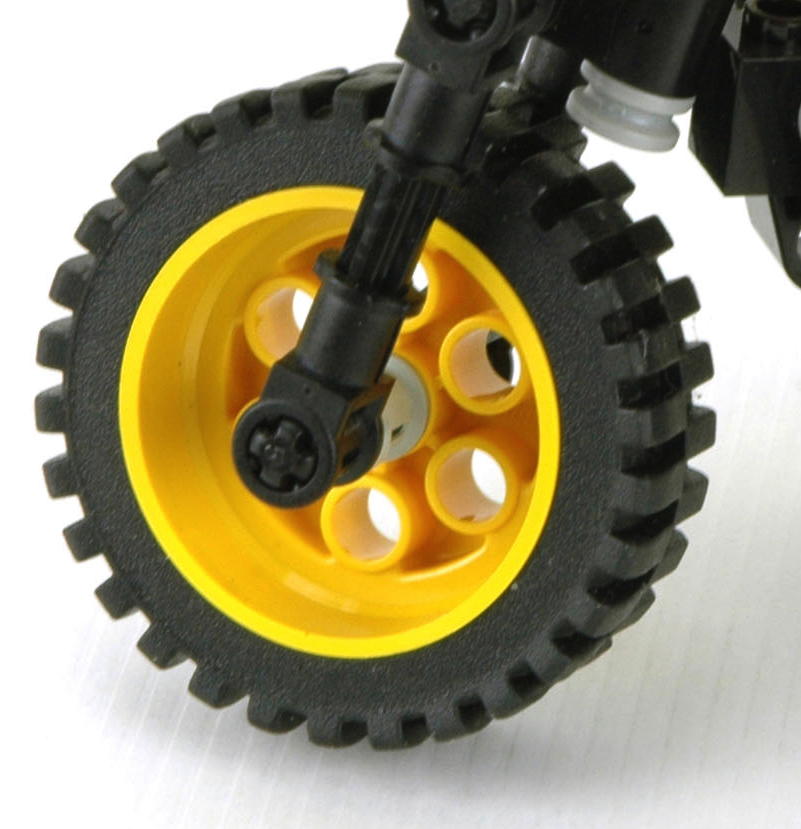

Wheels and Tires
This set uses two 13x24 Model Team wheels and tires.  This wheel has an asymmetric offset, so to get it centered in the fork the left and right spacers must be different sizes.
Wheels



Other Views

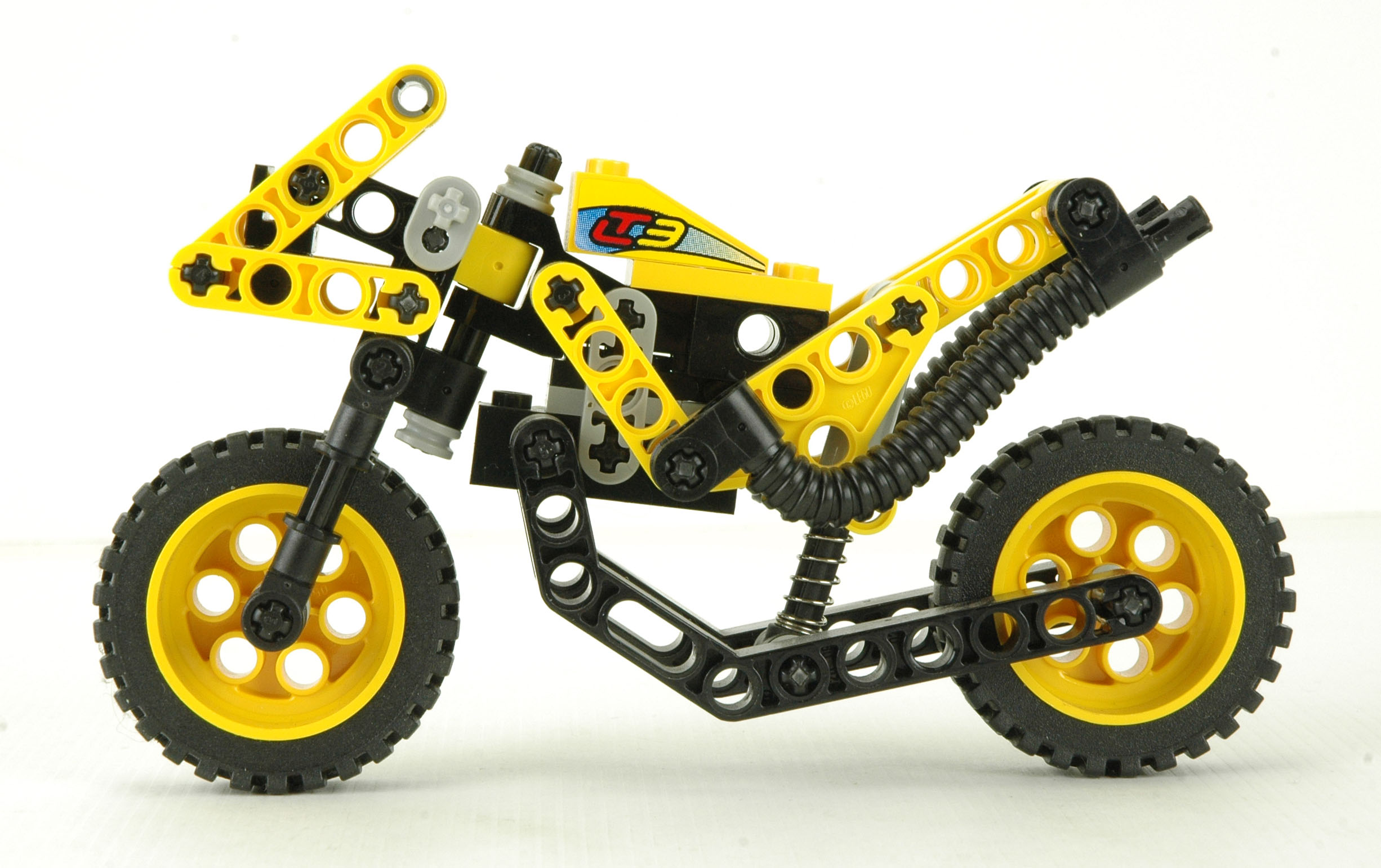

Side View
side view

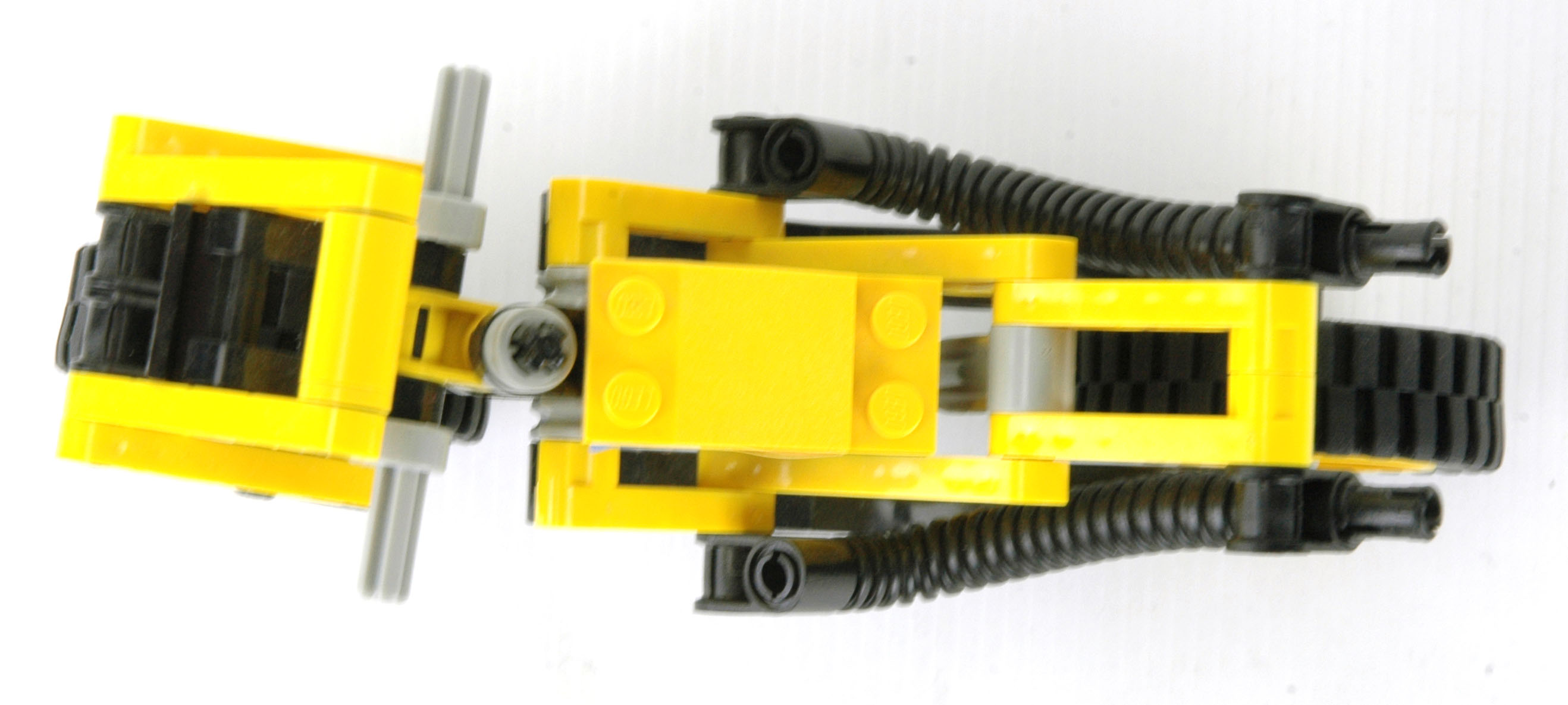

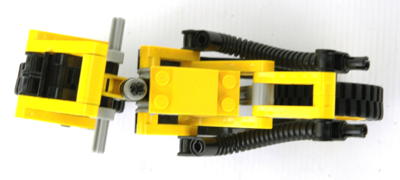

Top View
top view

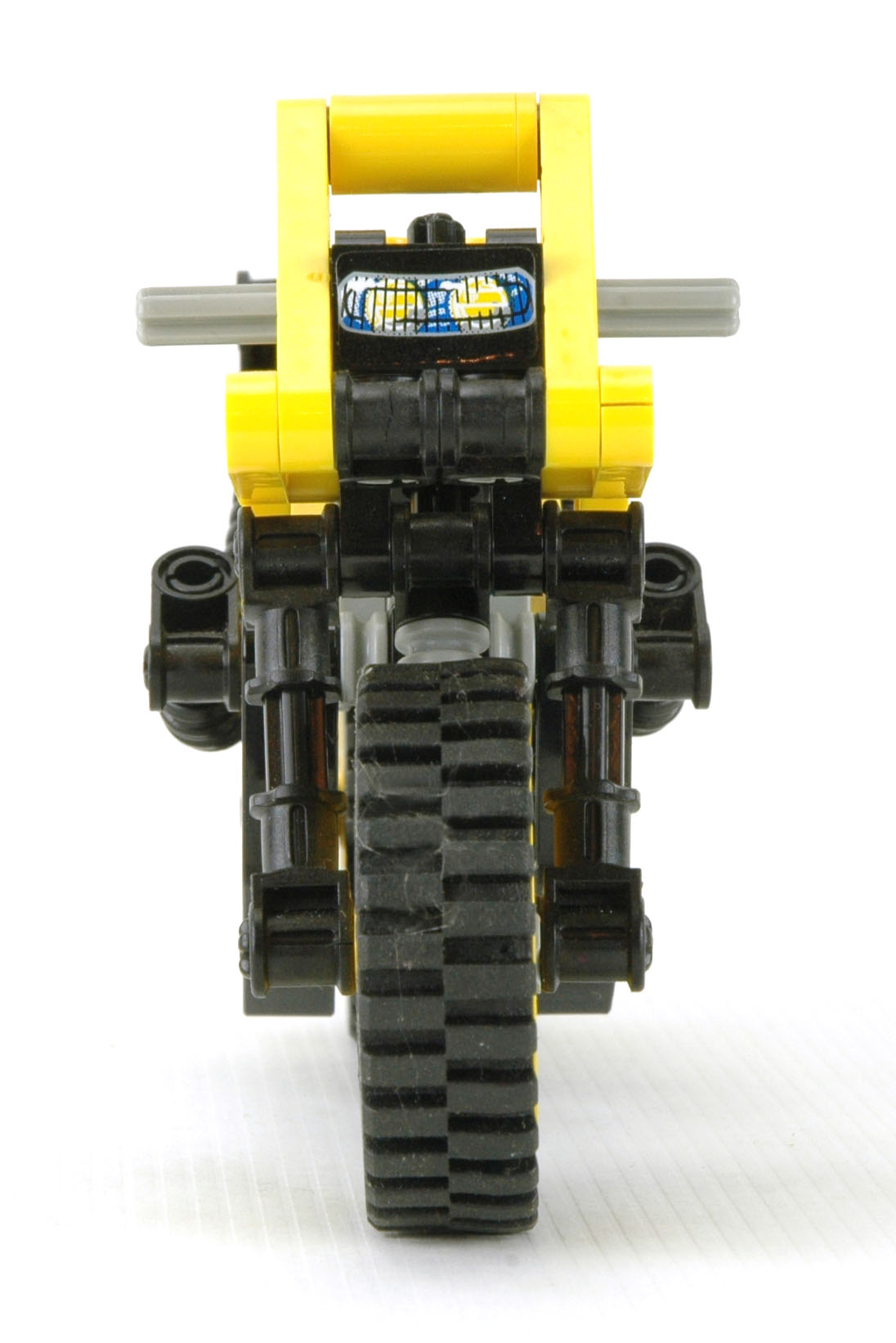

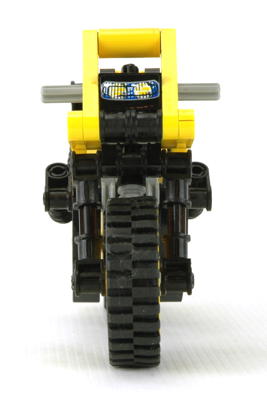

Front View
front view

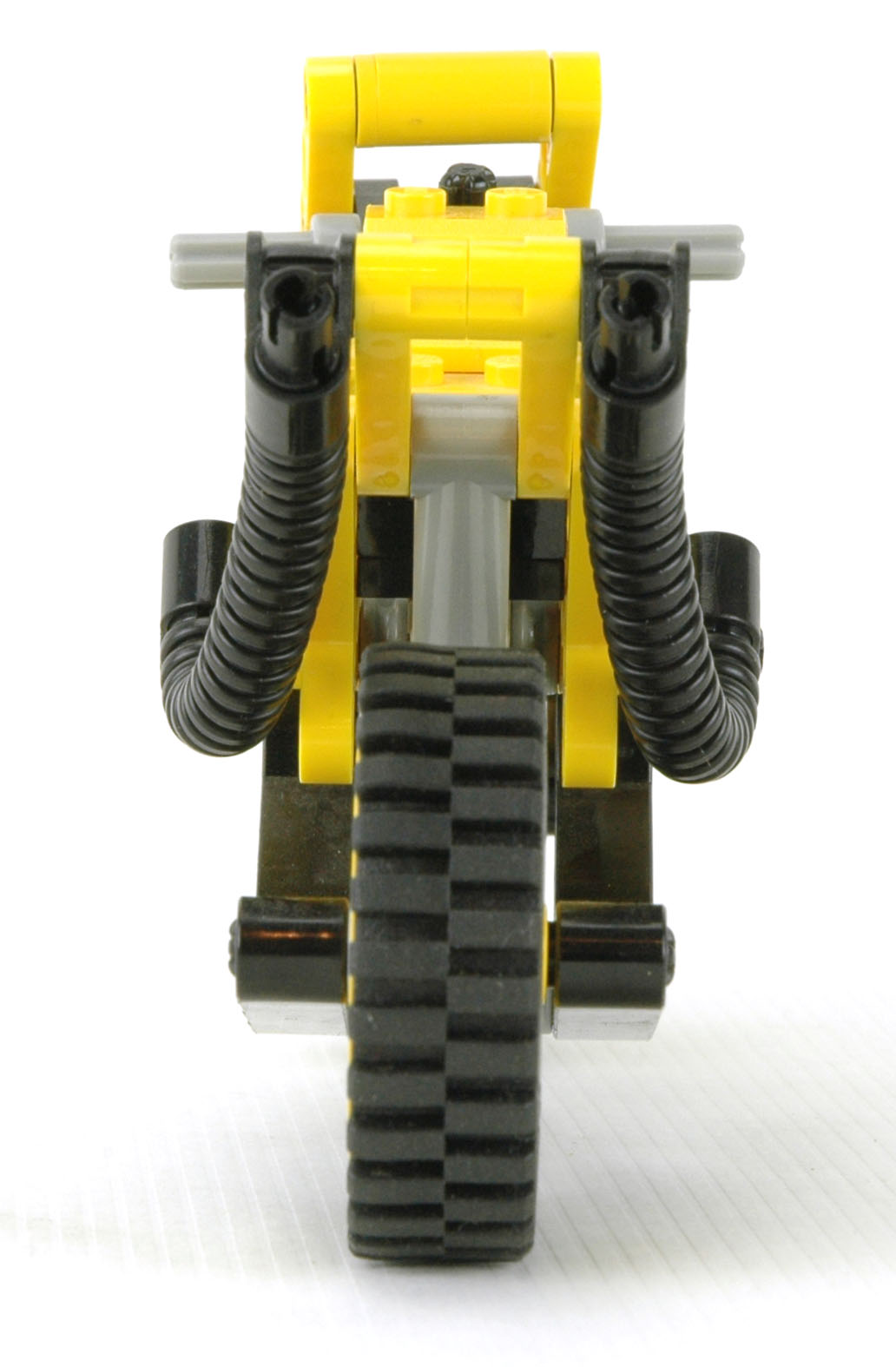

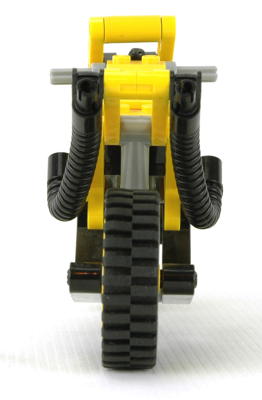

Back View
back view

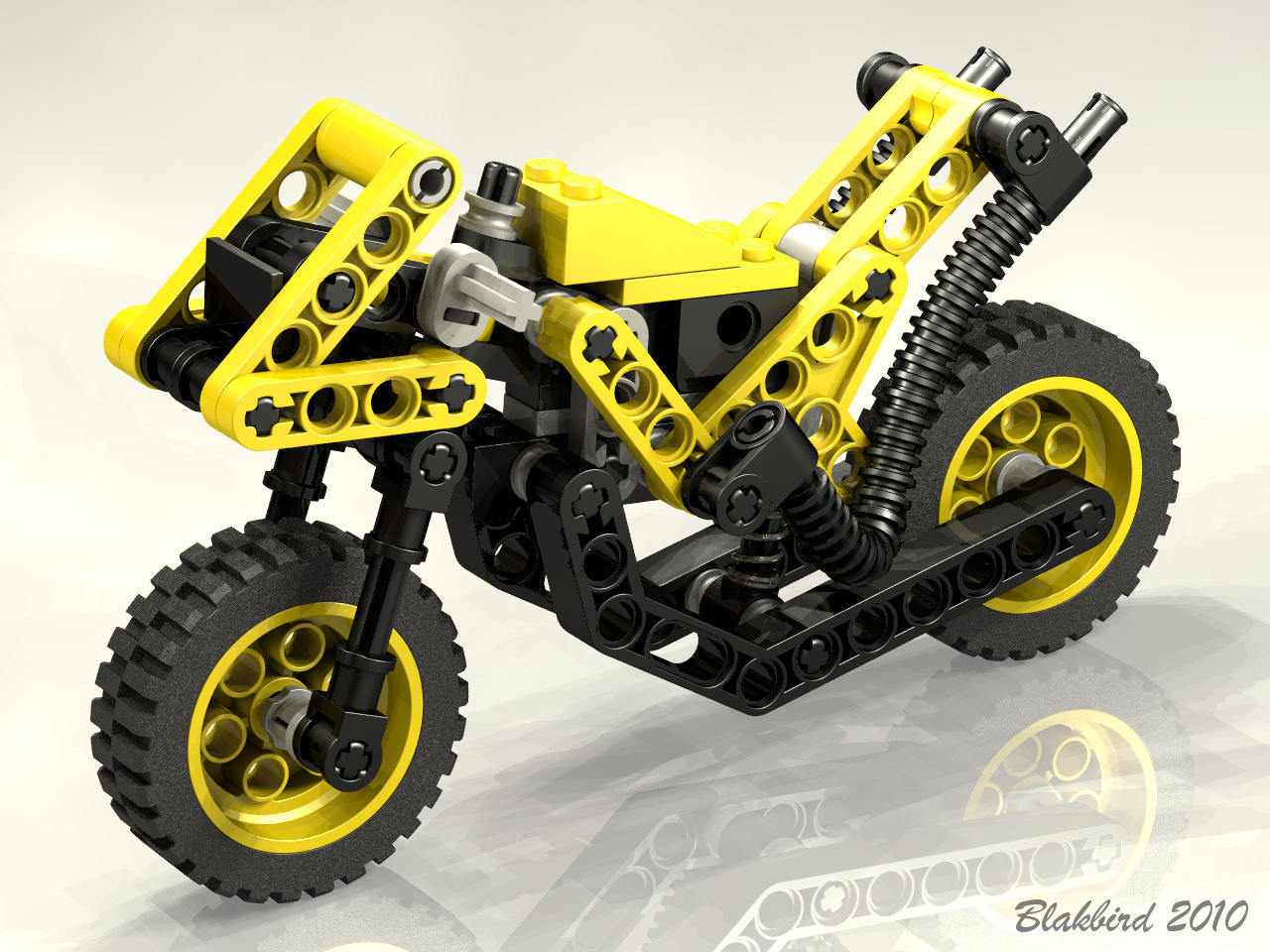

Computer Render
Render
