Original Year
 1996
# of pieces
 175
Categories
 Cars & Trucks: Buggies
Dimensions
 23(L)x16(W)x14(H)
Features
 Steering
Other Views

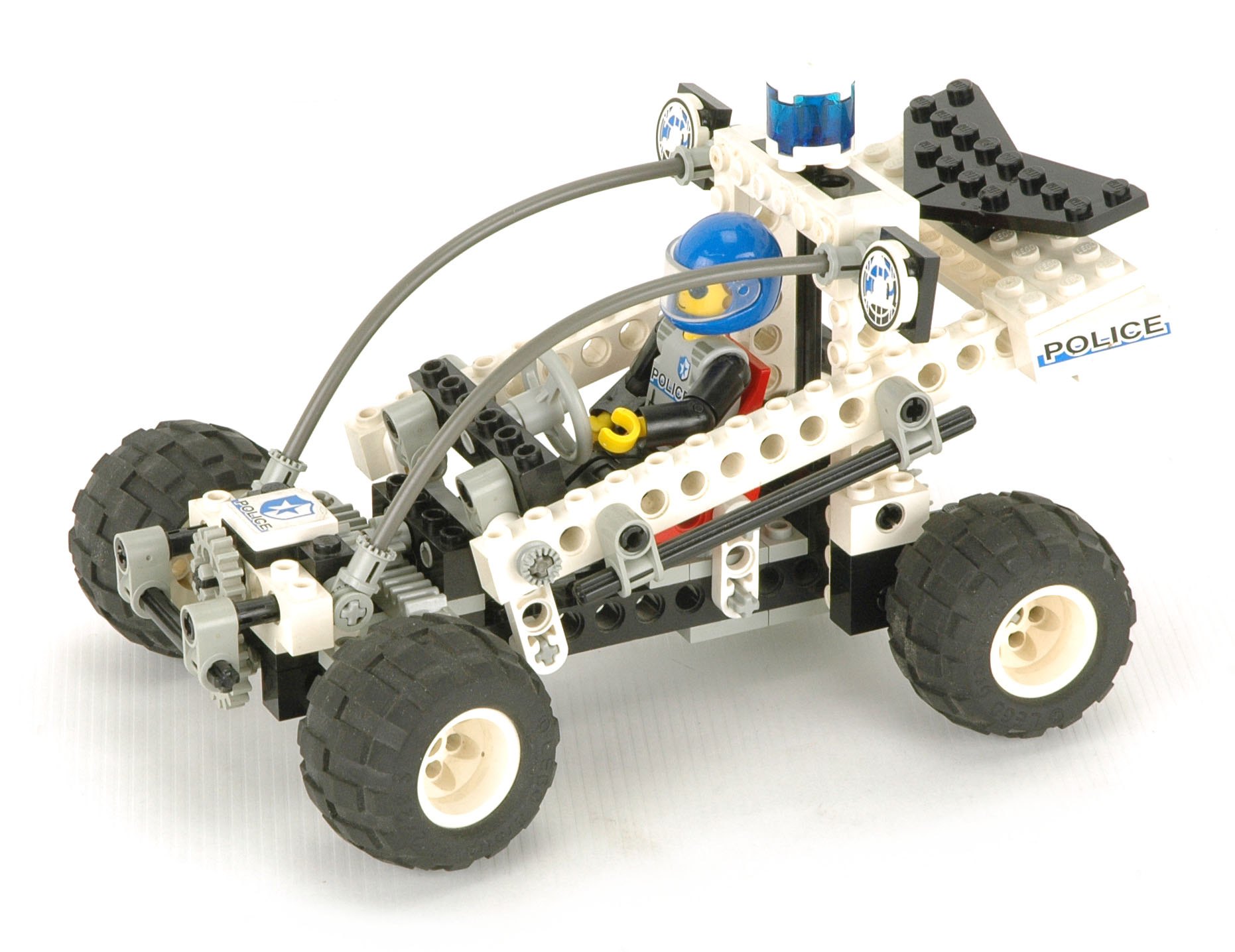

8230 Coastal Cop Buggy
iso revolve
Click the image to download the LDraw file of this model.
Model by Benjamin Wendl
The third small Tech Play model of 1996 was the 8230 Coastal Cop Buggy. This appears to be some sort of beach buggy and comes complete with a friendly police officer in black.  Although bigger than the other two Tech Play models this year, 8230 still has only a single feature: steering.  A range of stickers represent the police logo, spotlights, and tail lights.  There's nothing really new here other than the use of flex tubing as a roll cage, though the use of uncommon white is welcome.

Features
Steering

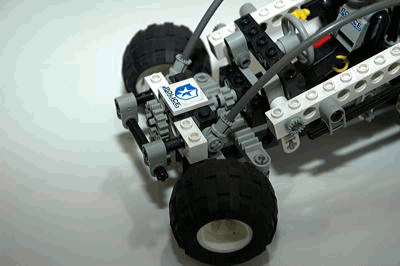

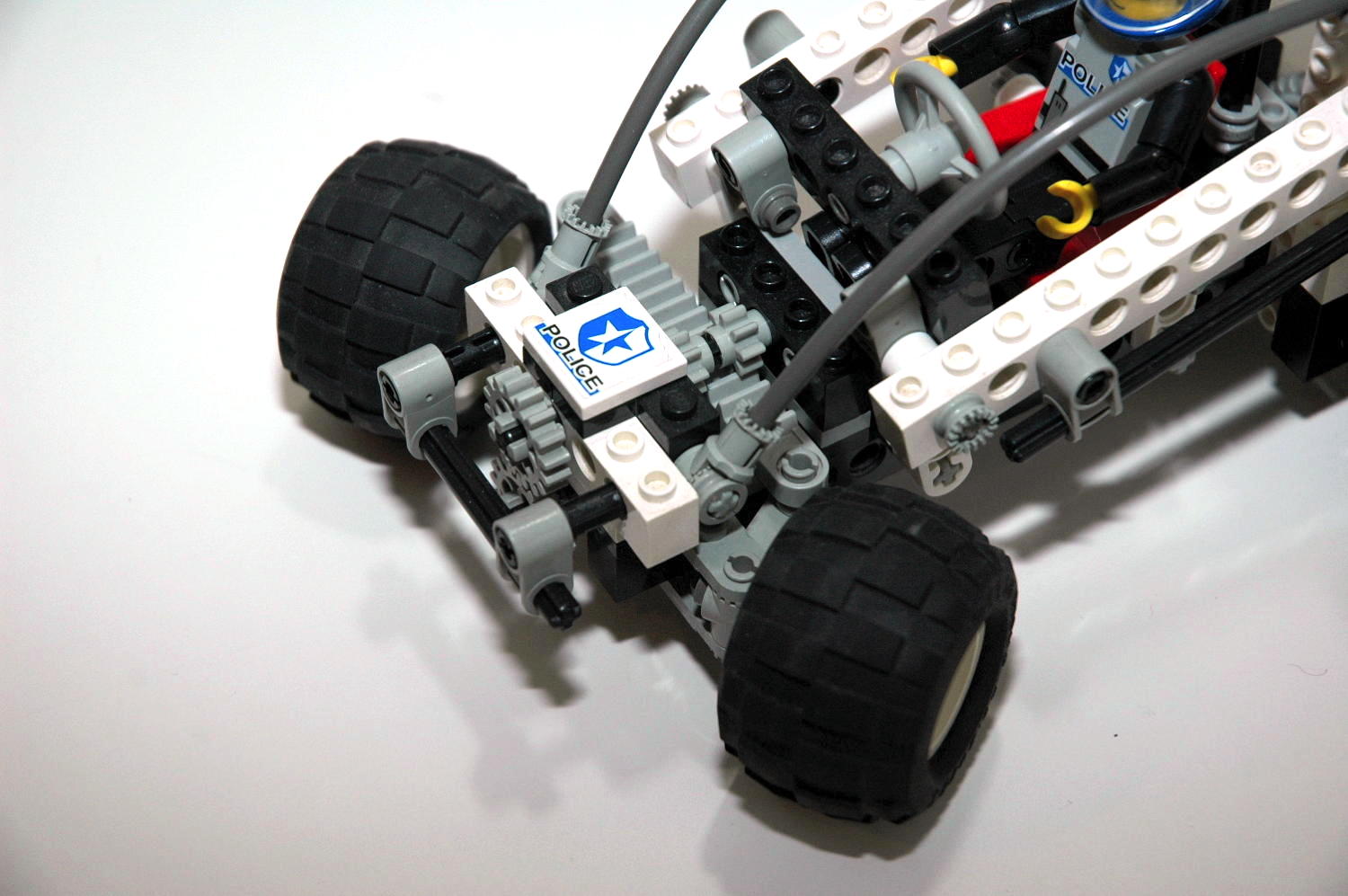

The front wheels can be steered using a "hand of god"wheel at the top of the vehicle.  The wheel drives through a set of 12 tooth bevel gears, and then reverses at the front of the vehicle with spur gears.  A pair of 8 tooth pinions then drive the gear rack.

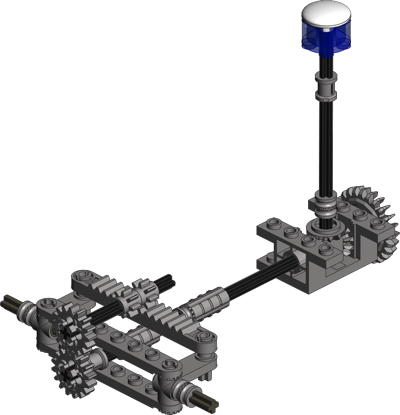

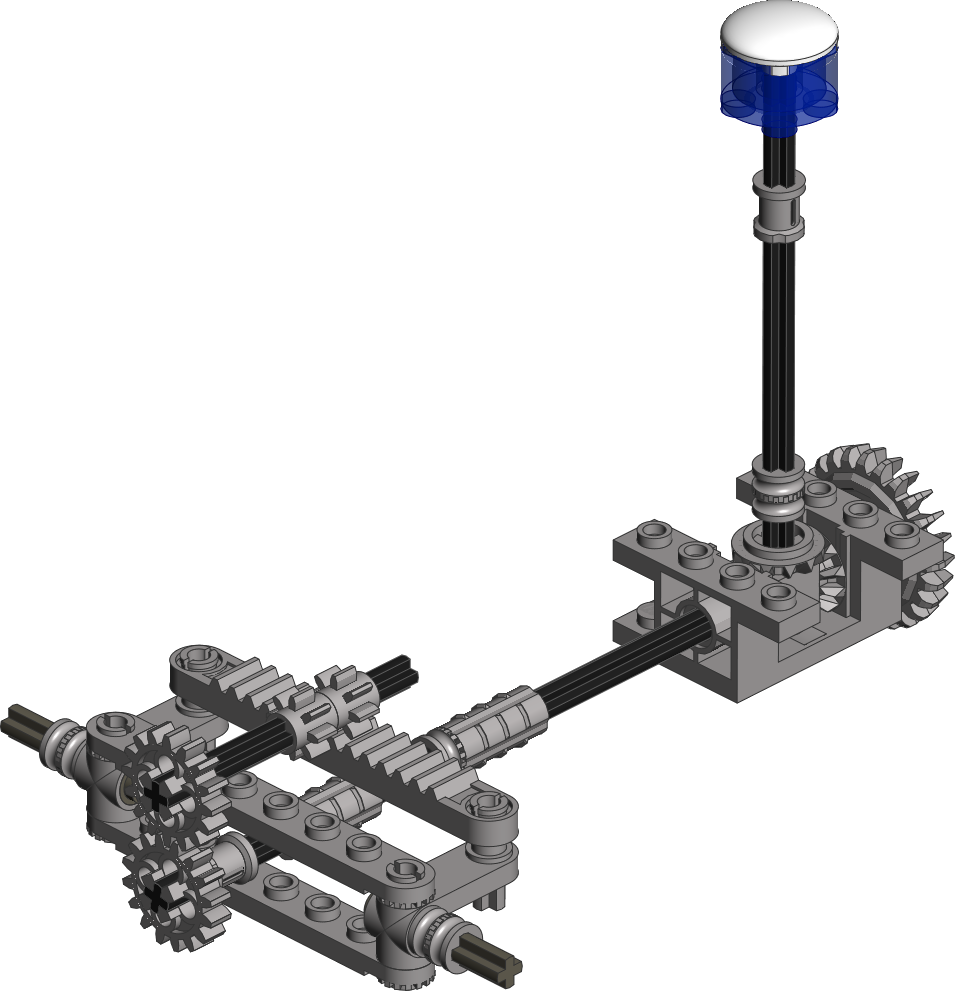

The steering mechanism itself uses control arms and toothed links as shown in the computer image.

There is also a crown gear protruding from the rear of the vehicle geared to the overhead control.  This gear has no apparent purpose but may be intended to represent a Power Take-Off.
 steering    steering
Click for an animation of the steering in motion.
Dude

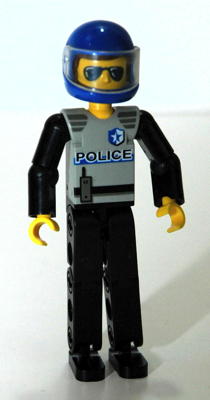

This buggy is driven by a helmeted police officer sporting some sweet shades and, curiously, dressed head to toe in black.  Doesn't seem too good for the beach, but perhaps it is a chilly beach in Svalbard.
 dude
Wheels and Tires

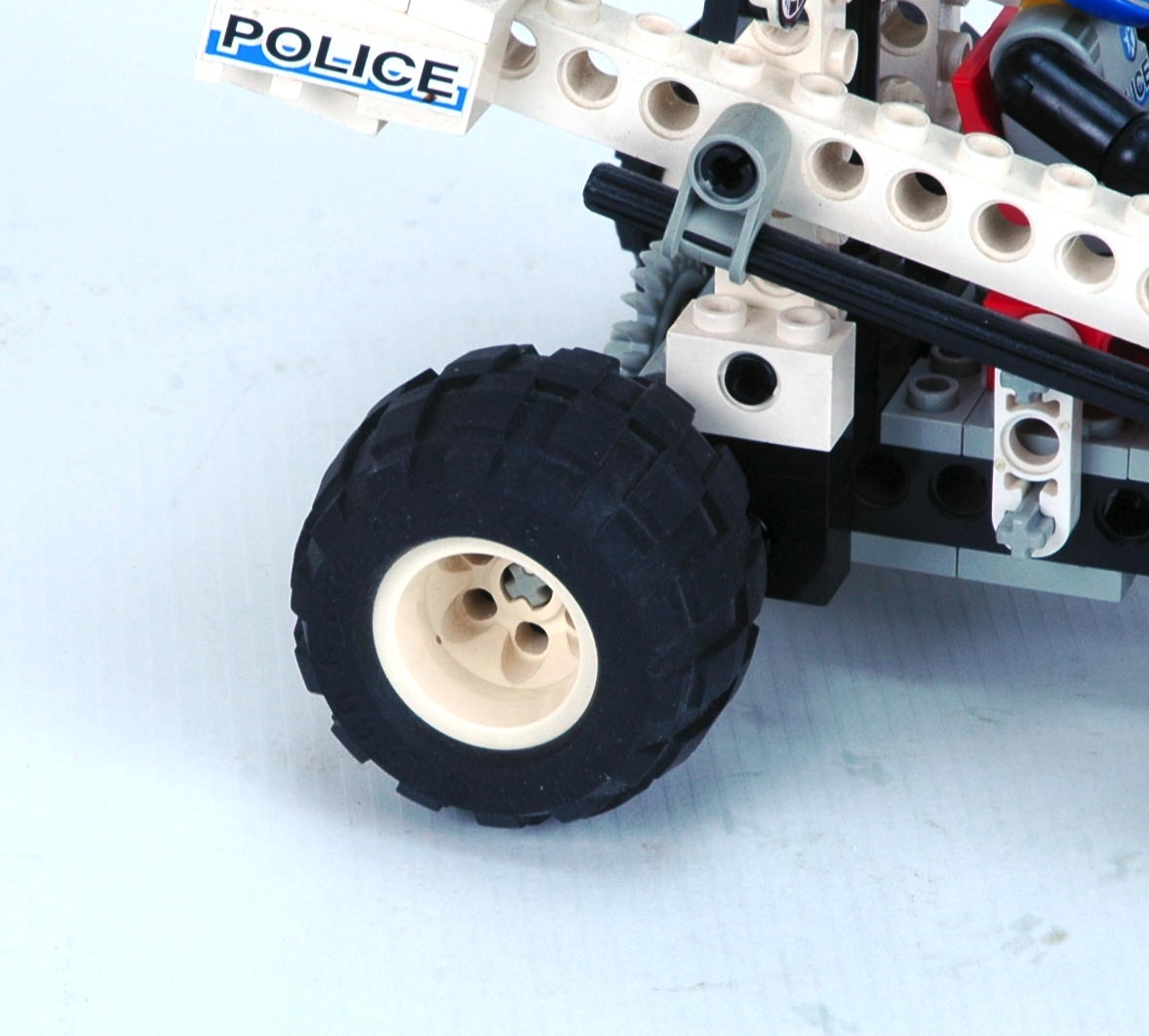

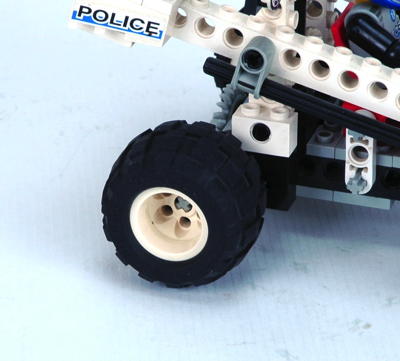

This set uses 4 of the 43.2x28 small balloon tires and wheels.		 wheel


Other Views

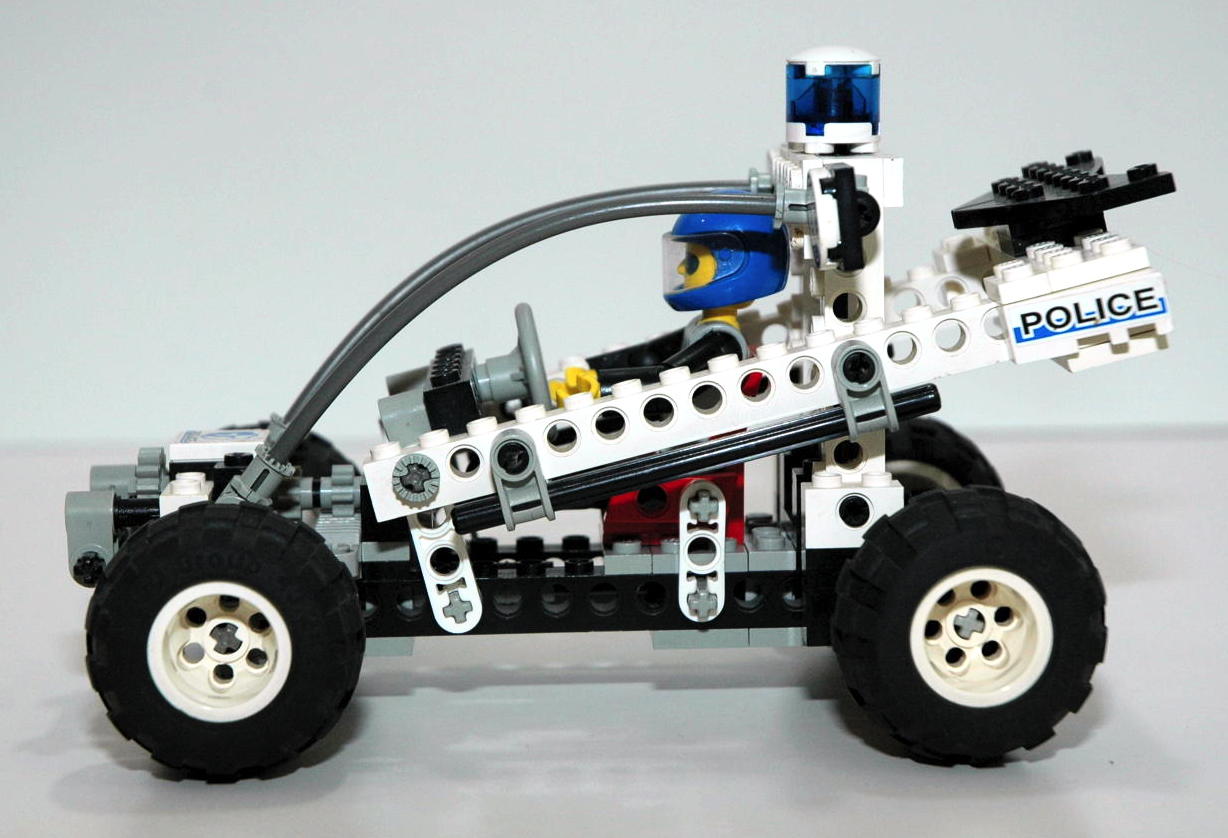

Side View
side view

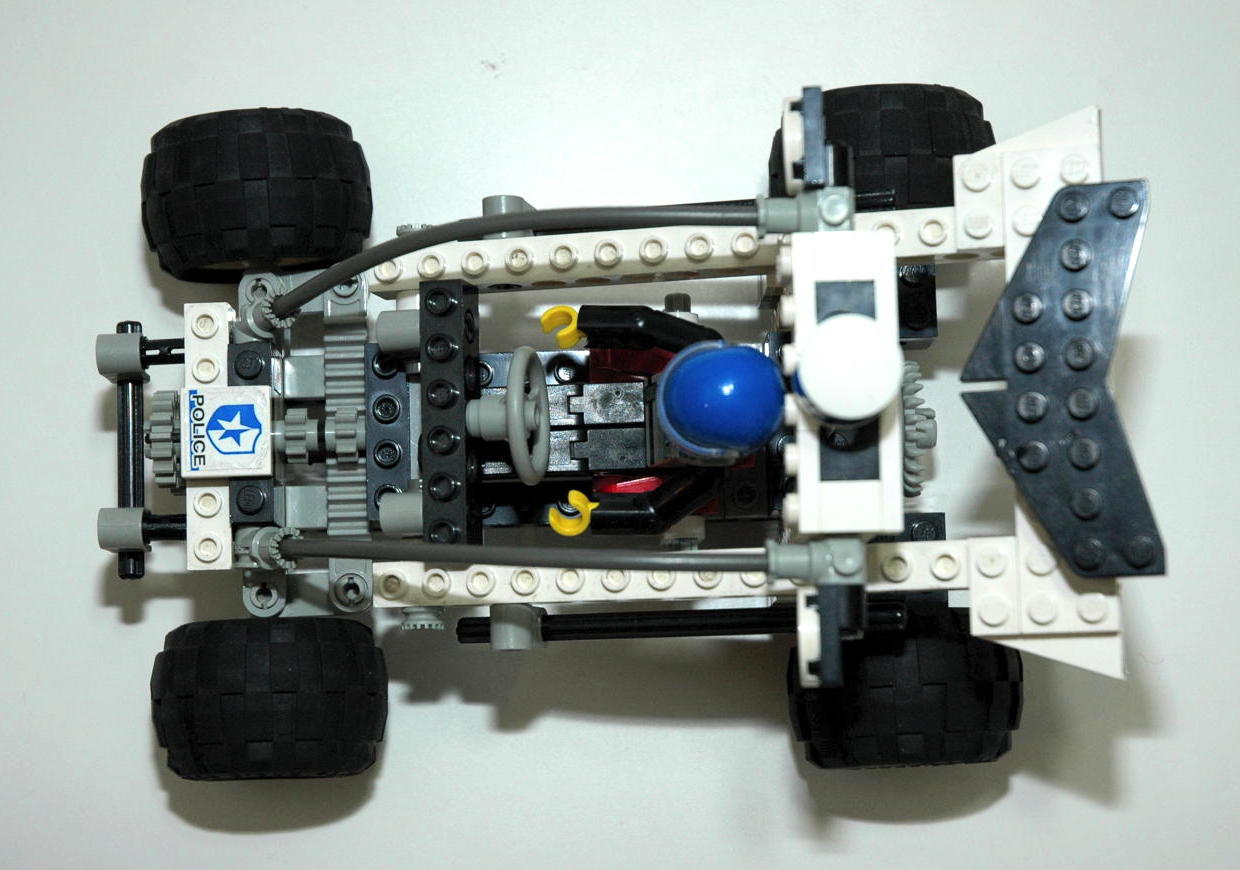

 Top View
top view

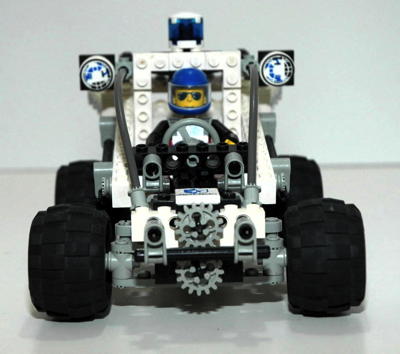

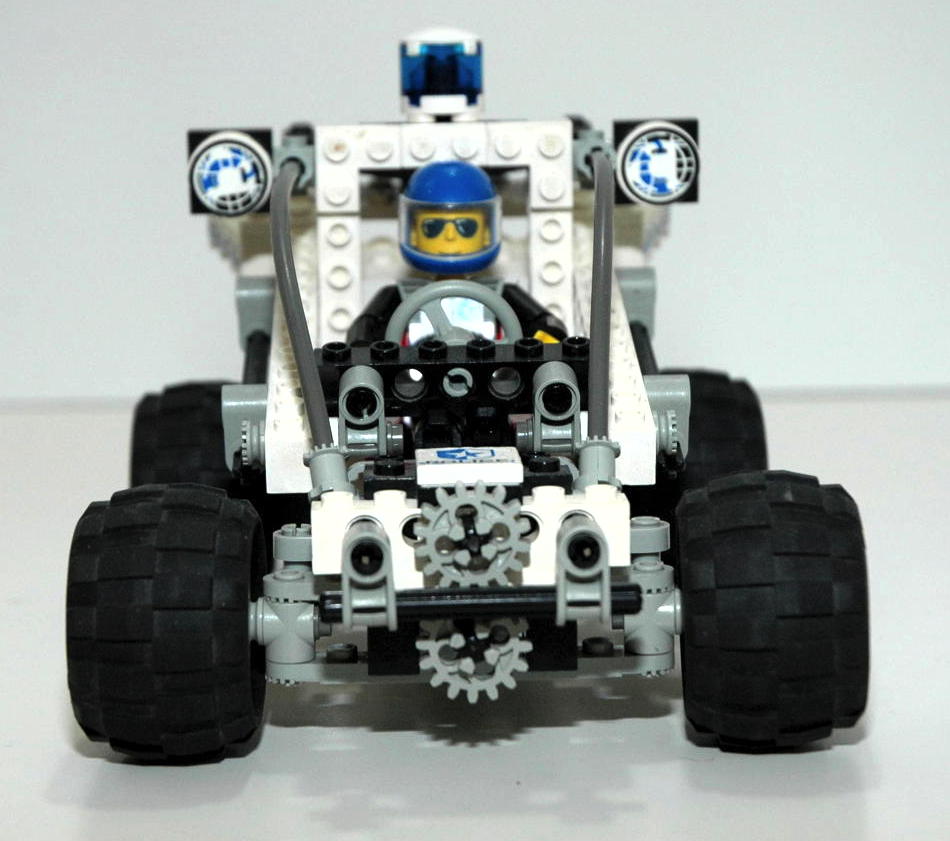

Front View
front view

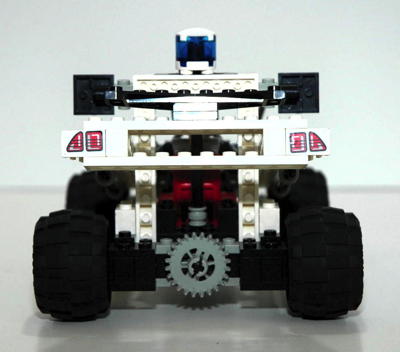

Back View
back view

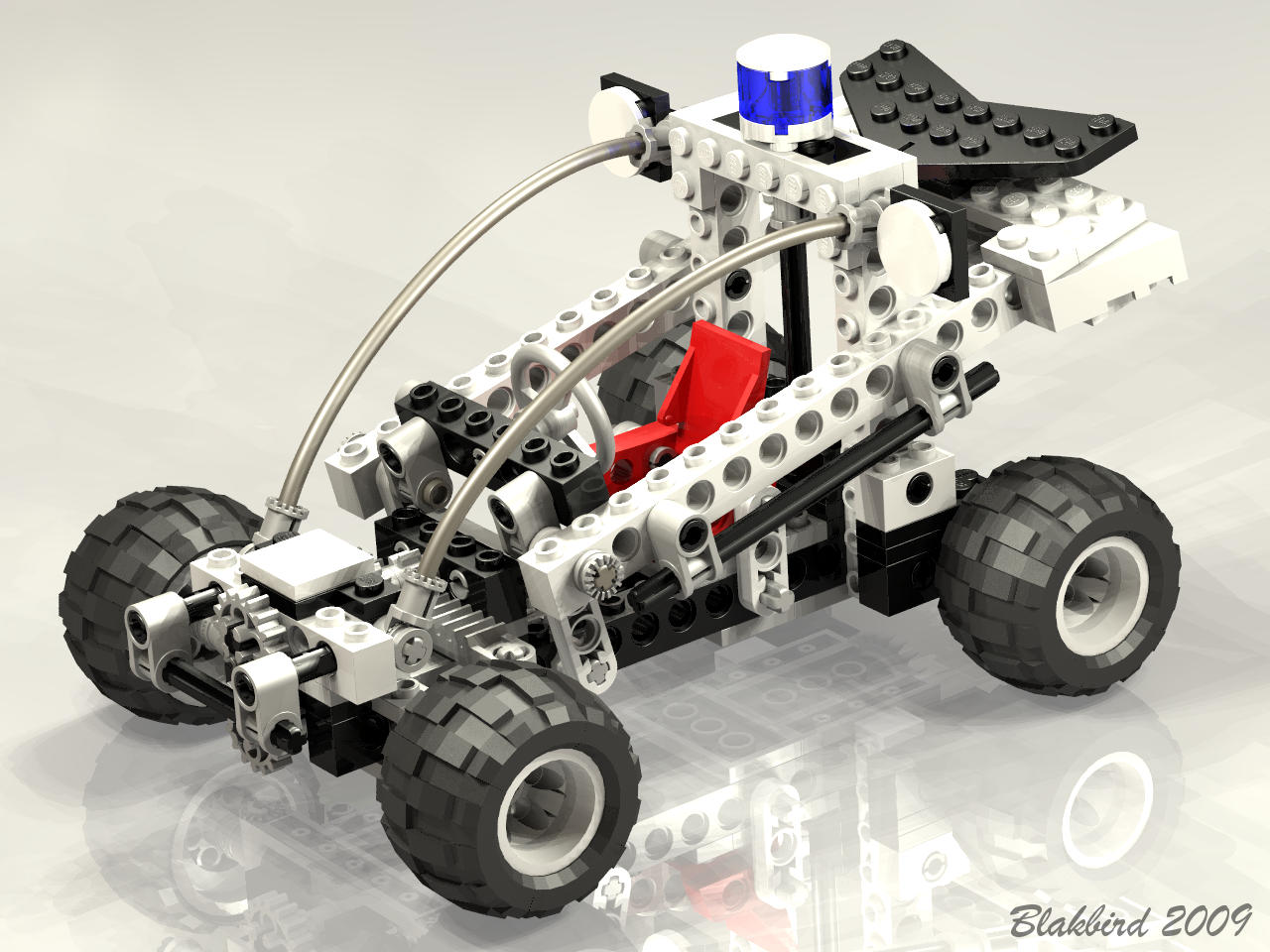

Computer Render
render
