Original Year
1998
# of pieces
72
Categories
Play Sets: Competition
Dimensions
26(L)x10(W)x10(H)
Features
Bungee launch
Other Views

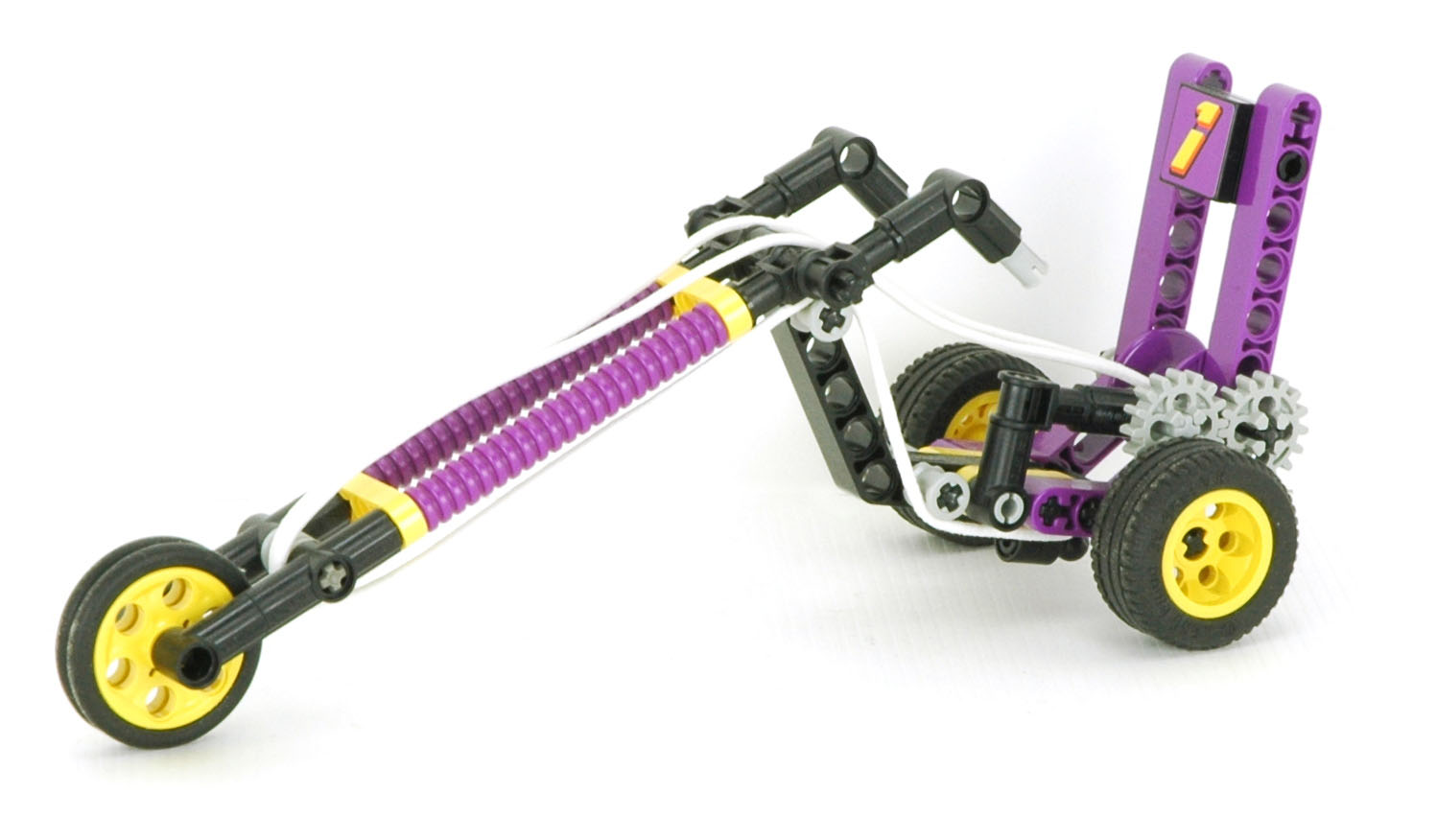

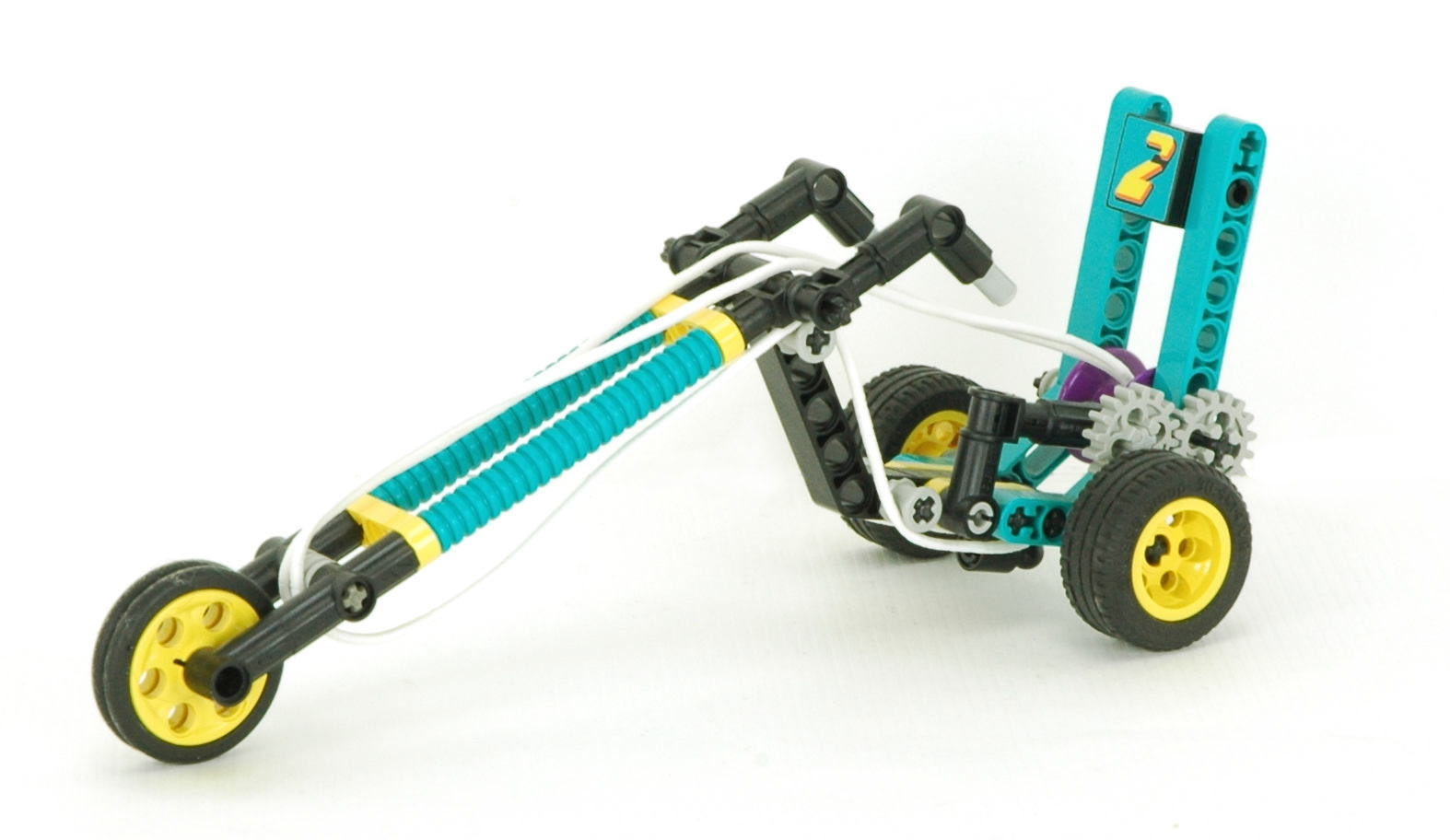

2854/8202 Bungee Chopper

iso iso
revolve
Click the image to download the LDraw file of this model.
Model by Owen Dive
revolve
Click the image to download the LDraw file of this model.
Model by Owen Dive

Although released as two different sets with different numbers, the 2854 and 8202 Bungee Choppers are exactly the same model in a different color.  In fact, they are also nearly the same as 2129 and 8205.  They were clearly intended to be used as a pair for competition racing and have only a single feature: a bungee cord which stores energy to launch the models.

Features

Bungee Cord

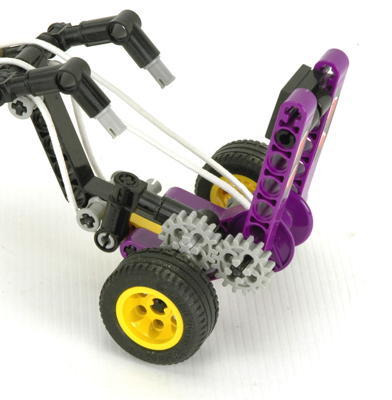

A bungee cord connects from an anchor point on the chassis to a drum mounted on the rear of the vehicle. This very long cord travels the whole length of the vehicle twice, wrapping around a pulley at the front.  When the vehicle is pulled back, a series of three 16 tooth gears connecting the drum to the rear axle stretches the elastic band.  The middle idler of these gears is attached to a floating link.  When pulling back, the forces on the gear cause it to engage the wheel axle, connecting the drum to wheels.  However, when the vehicle is released the forces on the gear from the bungee cord cause the link to float up and disengage from the rear wheels allowing the vehicle to move forward.  The cord can be stretched very considerably, allowing rapid forward motion.  In fact, there is so much torque at the wheels that they are likely to spin rather than propel the vehicle unless the traction is excellent.

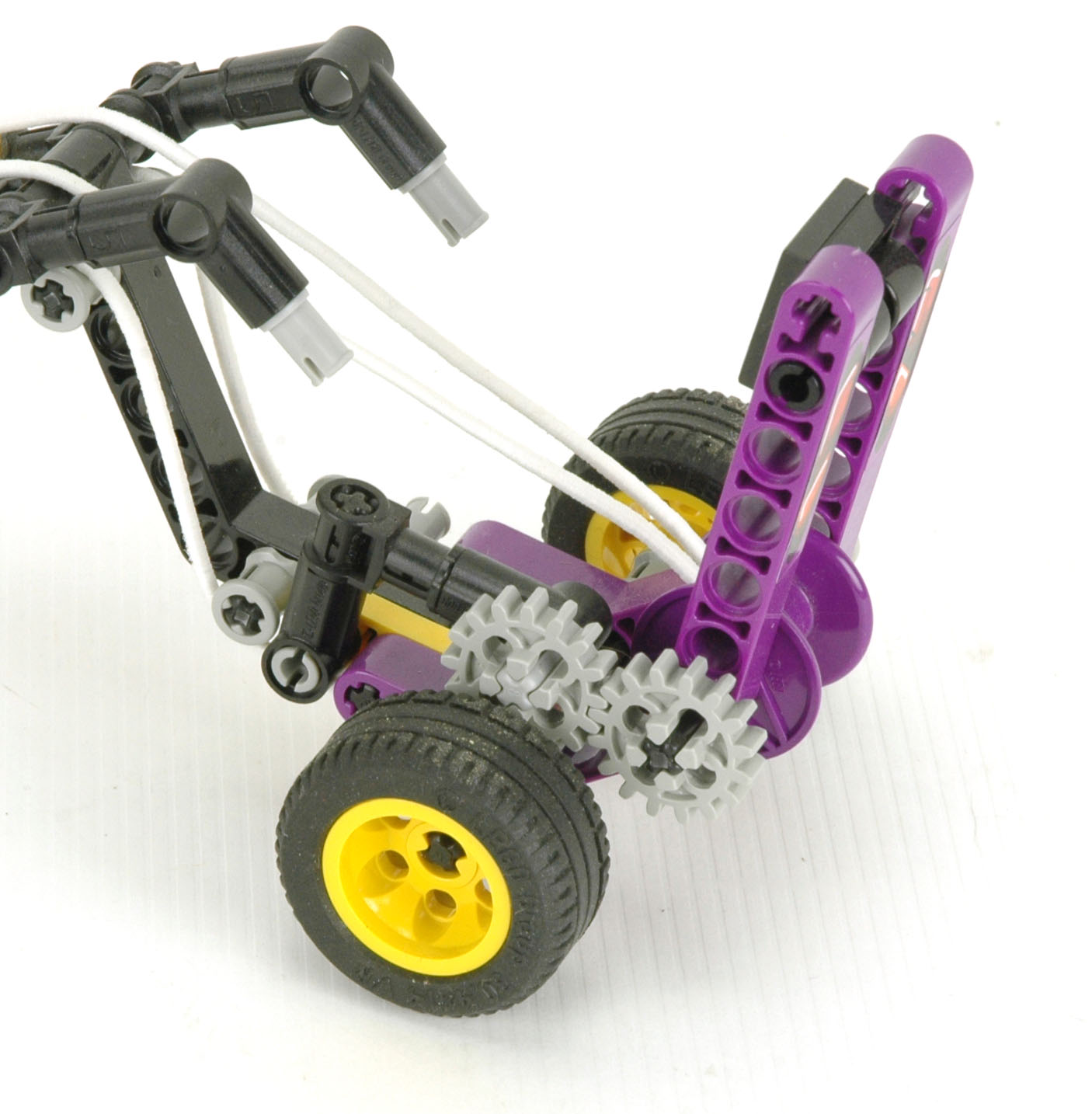

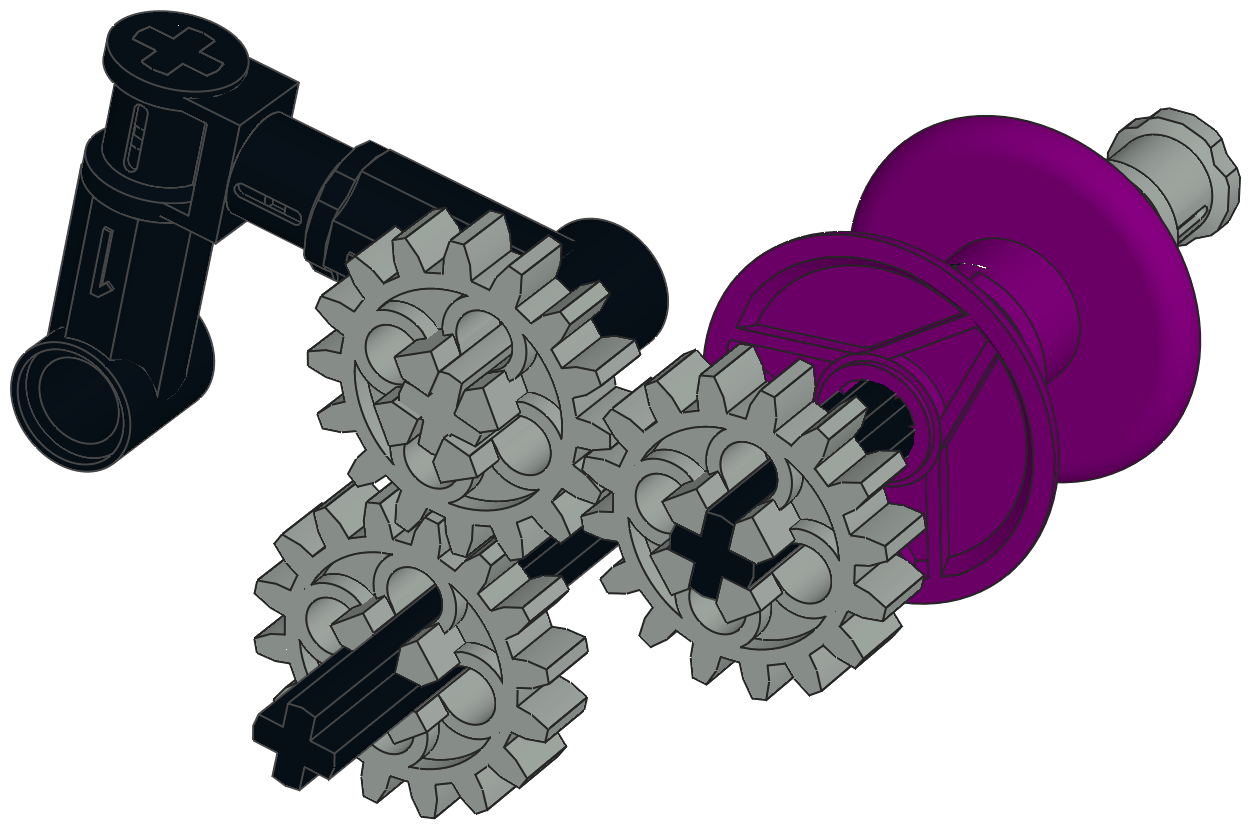

ratchet    ratchet
Wheels and Tires
This set has 2 of the smallest VR rubber tires and wheels on the back and the oldest pulley wheels and tires on the front.
side view



Other Views

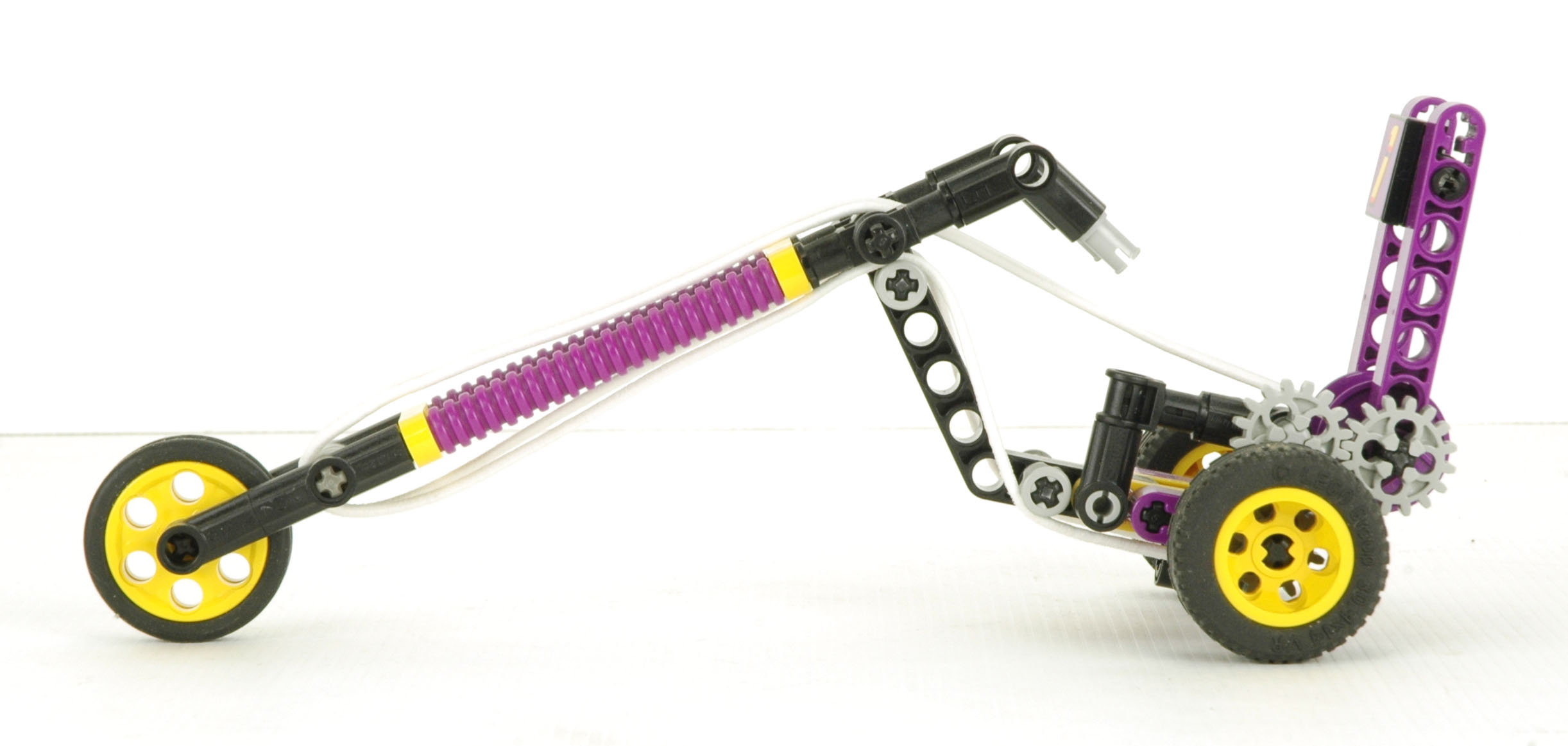

Side View
side view

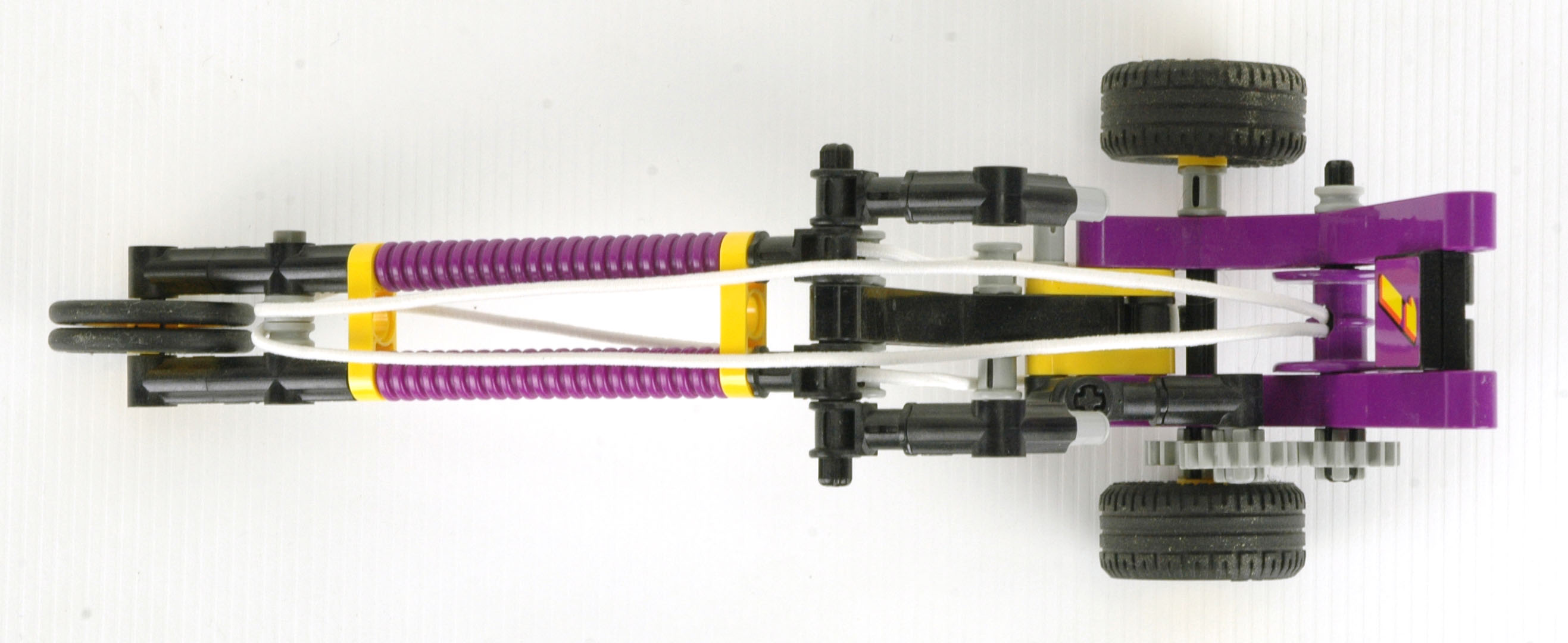

Top View
top view

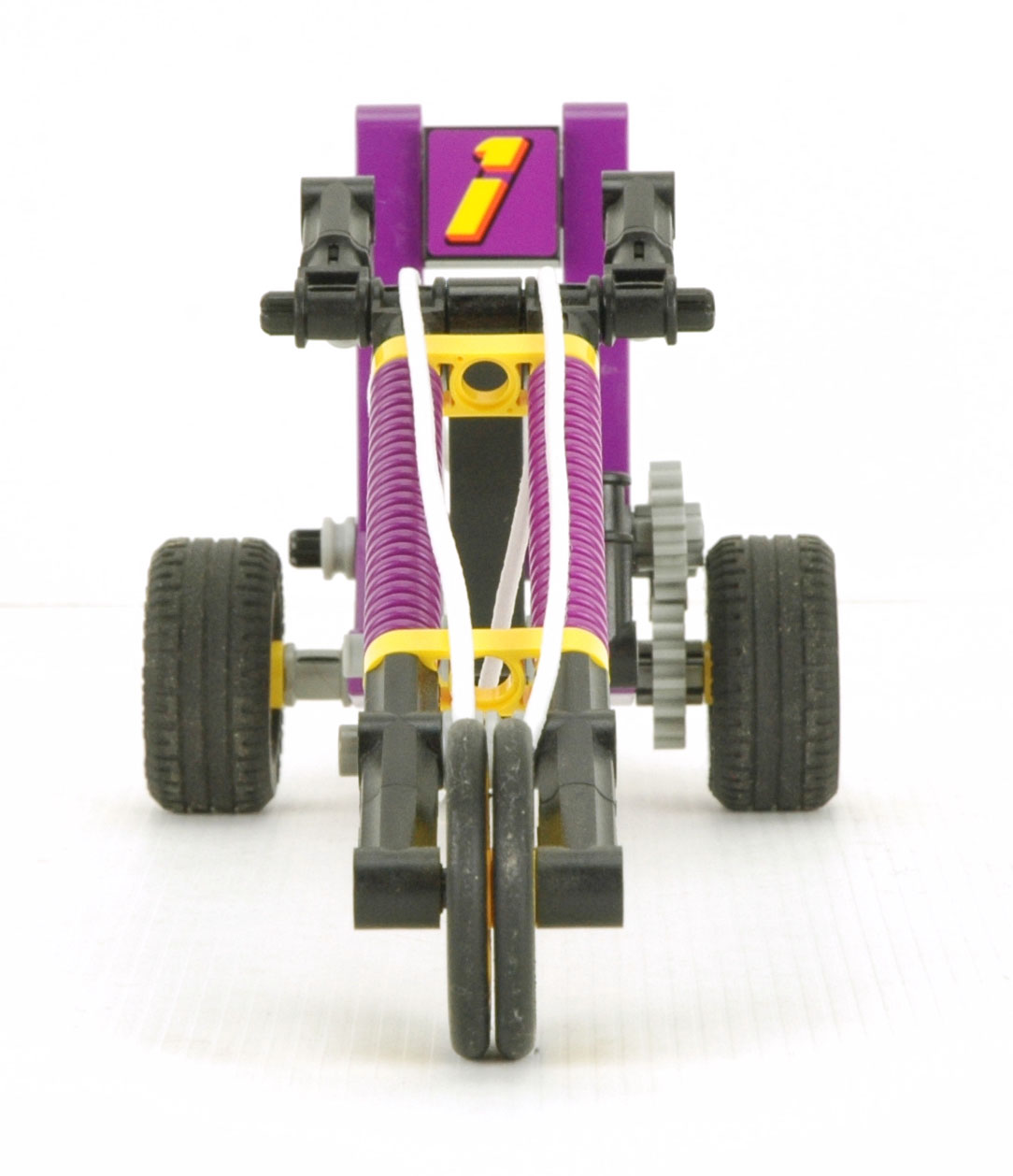

Front View
front view

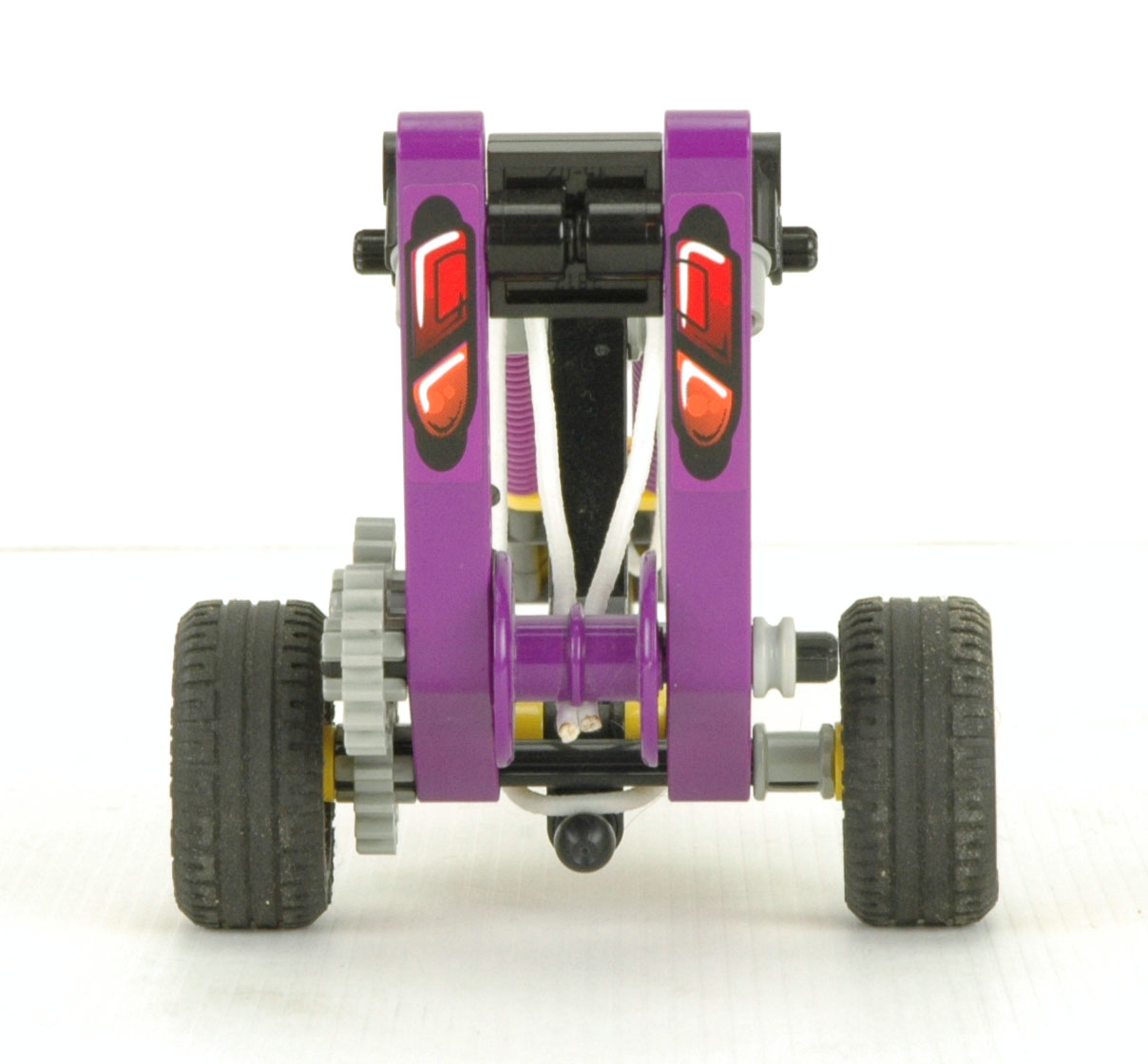

Back View
back view
Computer Render
Render
